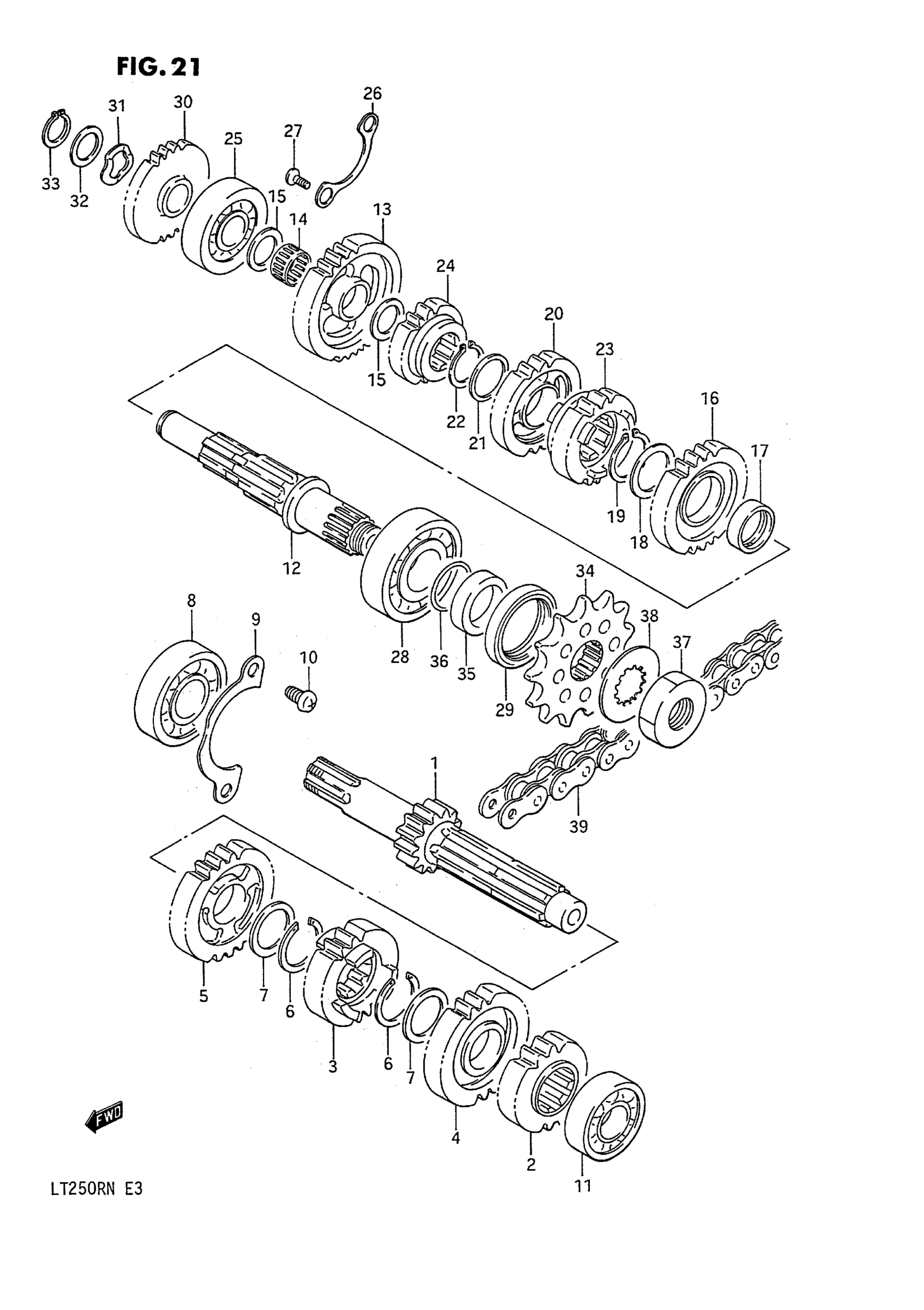

Suzuki LT250R (1992) TRANSMISSION (MODEL F/G) Diagram

#

Description
Price

1

COUNTERSHAFT (NT:13)

24121-19A01

Unavailable

2

GEAR, 2ND DRIVE (NT:16)

24221-19A00

Unavailable

3

GEAR, 3RD DRIVE (NT:19)

24231-19A00

Unavailable

4

GEAR, 4TH DRIVE (NT:21) | MODEL F

24241-19A00

Unavailable

4

GEAR, 4TH DRIVE (NT:19) | MODEL G

24241-19A10

Unavailable

5

GEAR, 5TH DRIVE (NT:21) | MODEL F

24251-19A00

Unavailable

5

GEAR, 5TH DRIVE (NT:23) | MODEL G

24251-19A10

Unavailable

6

CIRCLIP

09380-22006

$3.10

7

SHIM (22X28X0.5) This part replaces 08221-22285.

09181-22130

$3.40

8

BEARING

09262-20073

$23.28

9

RETAINER

24741-13A00

Unavailable

10

SCREW This part replaces 02112-06128.

02112-06127

$1.84

11

BEARING

09262-17023

$16.75

12

DRIVESHAFT

24131-19A00

Unavailable

13

GEAR, 1ST DRIVEN (NT:30)

24311-19A01

Unavailable

14

BEARING (17X21X9.8)

09263-17004

$12.03

15

WASHER

09160-17031

Unavailable

16

GEAR, 2ND DRIVEN (NT:27)

24321-19A01

Unavailable

17

BUSH

09300-25020

$16.87

18

WASHER

08211-25342

Unavailable

19

SNAP RING

09380-25003

$3.04

20

GEAR, 3RD DRIVEN (NT:25)

24331-19A00

Unavailable

21

WASHER (22X28X1.0) This part replaces 08211-22281.

09181-22139

$3.48

22

CIRCLIP This part replaces 08331-31226.

08331-31229

$2.48

23

GEAR, 4TH DRIVEN (NT:23) | MODEL F

24341-19A00

Unavailable

23

GEAR, 4TH DRIVEN (NT:20) | MODEL G

24341-19A10

Unavailable

24

GEAR, 5TH DRIVEN (NT:20) | MODEL F

24351-19A00

Unavailable

24

GEAR, 5TH DRIVEN (NT:20) | MODEL G

24351-19A10

Unavailable

25

BEARING

09262-17023

$16.75

26

RETAINER

24751-40300

Unavailable

27

SCREW This part replaces 02122-06128.

02122-06127

$1.84

28

BEARING (22X56X16) This part replaces 09262-22014.

09262-22028

$77.48

29

OIL SEAL

09283-32003

$7.31

30

GEAR, KICK IDLE (NT:26)

26260-13A10

Unavailable

31

WAVE WASHER

09164-17005

$1.52

32

WASHER (17X24X0.5) This part replaces 08221-17245.

09181-17130

$2.96

33

CIRCLIP

09380-17001

$1.98

34

SPROCKET, ENG 1 This part replaces 27511-19A00.

27511-19A01

$33.15

35

SPACER (22X32X9.5)

09180-22026

Unavailable

36

O RING (D:1.7,ID:22)

09280-22003

$1.72

37

NUT

09140-18009

Unavailable

38

WASHER, LOCK

09167-22012

$1.54

39

CHAIN ASSY, DRIVE (102LE)

27600-01C10-102

Unavailable
