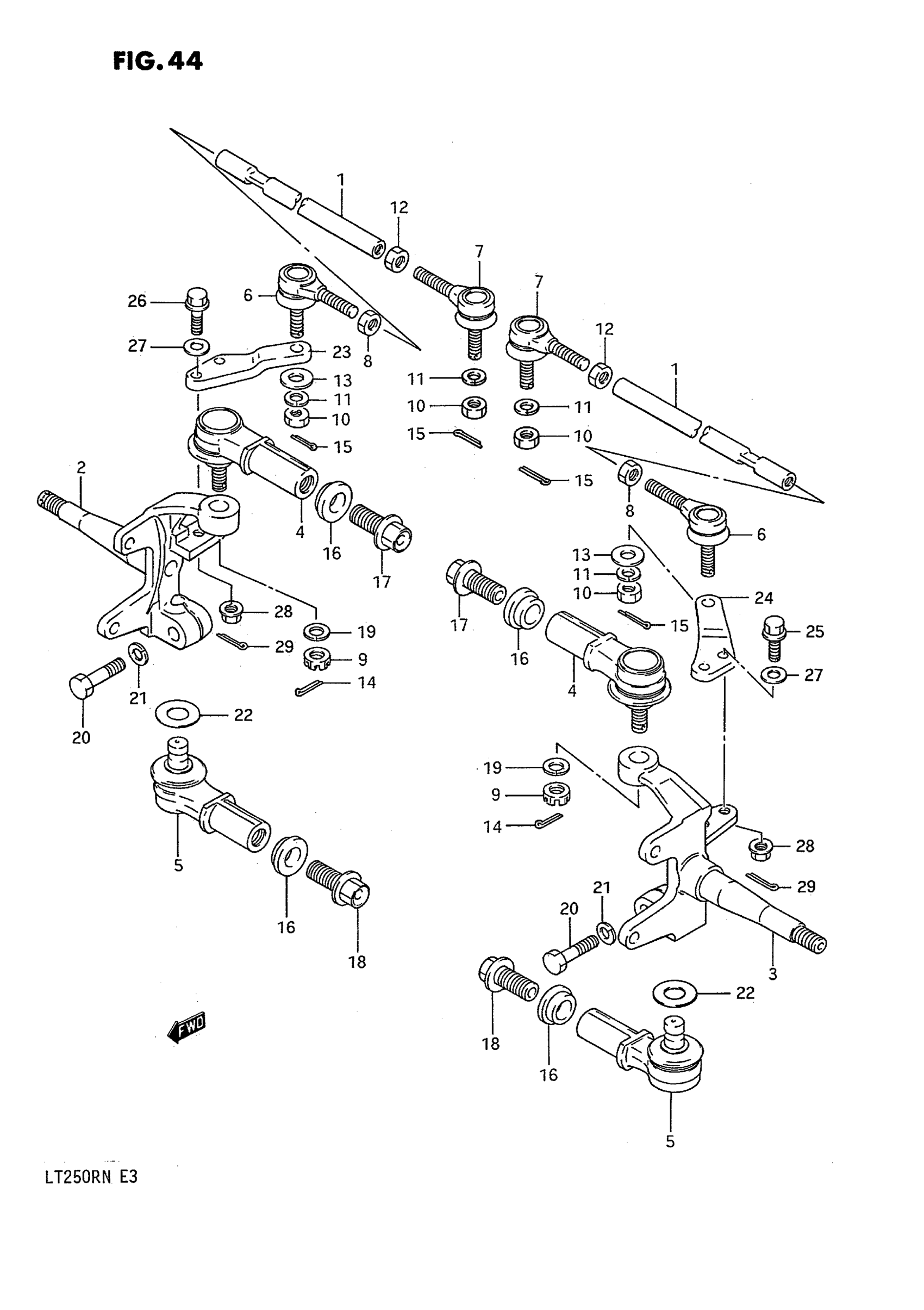

Suzuki LT250R (1992) TIE ROD (MODEL H/J/K/L/M/N) Diagram

#

Description
Price

1

TIE ROD, STEERING

51281-01C00

Unavailable

2

KNUCKLE, STEERING RH | !51231-01C00 W/09103-08236,08319-31085 This part replaces 51231-19A00.

51231-01C00

Unavailable

2

KNUCKLE, STEERING RH

51231-01C00

Unavailable

3

KNUCILE, STEERING LH | !51241-01C00 W/09103-08236,08319-31085 This part replaces 51241-19A00.

51241-01C00

Unavailable

3

KNUCILE, STEERING LH

51241-01C00

Unavailable

4

END, KNUCKLE STEERING UPPER | MODEL H This part replaces 51210-19A00.

51210-19A01

Unavailable

4

END, KNUCKLE STEERING UPPER | MODEL J/K/L/M/N

51210-19A01

Unavailable

5

END,KNUCKLE STE | MODEL H This part replaces 51220-19A00.

51220-19A03

$106.62

5

END,KNUCKLE STE | MODEL J/K/L/M/N This part replaces 51220-19A01.

51220-19A03

$106.62

6

ROD, END RH | MODEL H This part replaces 51260-41B00.

51260-38F10

$81.22

6

ROD, END RH | MODEL J/K/L/M/N This part replaces 51260-41B01.

51260-38F10

$81.22

7

ROD, END LH | MODEL H This part replaces 51270-41B00.

51270-38F10

$81.22

7

ROD, END LH | MODEL J/K/L/M/N This part replaces 51270-41B01.

51270-38F10

$81.22

8

NUT This part replaces 08310-22105.

09140-10043

$2.68

9

NUT This part replaces 08314-41125.

08314-4012A

$2.50

10

NUT This part replaces 09159-10036.

09159-10027

$3.10

11

LOCK WASHER This part replaces 08321-21104.

08321-0110A

$1.84

12

NUT, TIE ROD LH THREAD

09140-10027

$1.49

13

WASHER This part replaces 09160-10068.

09160-10128-XC0

$2.62

14

PIN This part replaces 04111-30306.

04111-3030A

$1.49

15

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

16

STOPPER, KNUCKLE END BOLT

52418-24500

$8.83

17

BOLT, KNUCKLE STEERING END UPPER

09103-14008

$8.85

18

BOLT, KNUCKLE STEERING END LOWER

09103-14011

Unavailable

19

WASHER,LOCK This part replaces 08321-21125.

08321-0112A

$2.10

20

BOLT, KNUCKLE LOWER

09100-10225

$4.02

21

LOCK WASHER This part replaces 08321-21104.

08321-0110A

$1.84

22

WASHER, KNUCKLE END This part replaces 09160-14034.

09160-14060

$2.85

23

ARM, KNUCKLE STEERING RH | MODEL H This part replaces 51232-19A00.

51232-19A01

Unavailable

23

ARM, KNUCKLE STEERING RH | MODEL J/K/L/M/N

51232-19A01

Unavailable

24

ARM, KNUCKLE STEERING LH

51242-19A00

Unavailable

25

BOLT, KNUCKLE STEERING (L:33 | FOR 51231-19A00 FOR 51241-19A00 This part replaces 09103-08227.

09103-08233

Unavailable

26

BOLT, ARM KNUCKLE | FOR 51231-01C00 FOR 51241-01C00

09103-08236

Unavailable

27

WASHER | FOR 51231-01C00 FOR 51241-01C00

09160-08103

$3.48

28

NUT | FOR 51231-01C00 FOR 51241-01C00 This part replaces 08319-31085.

08319-3108A

$2.32

29

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
