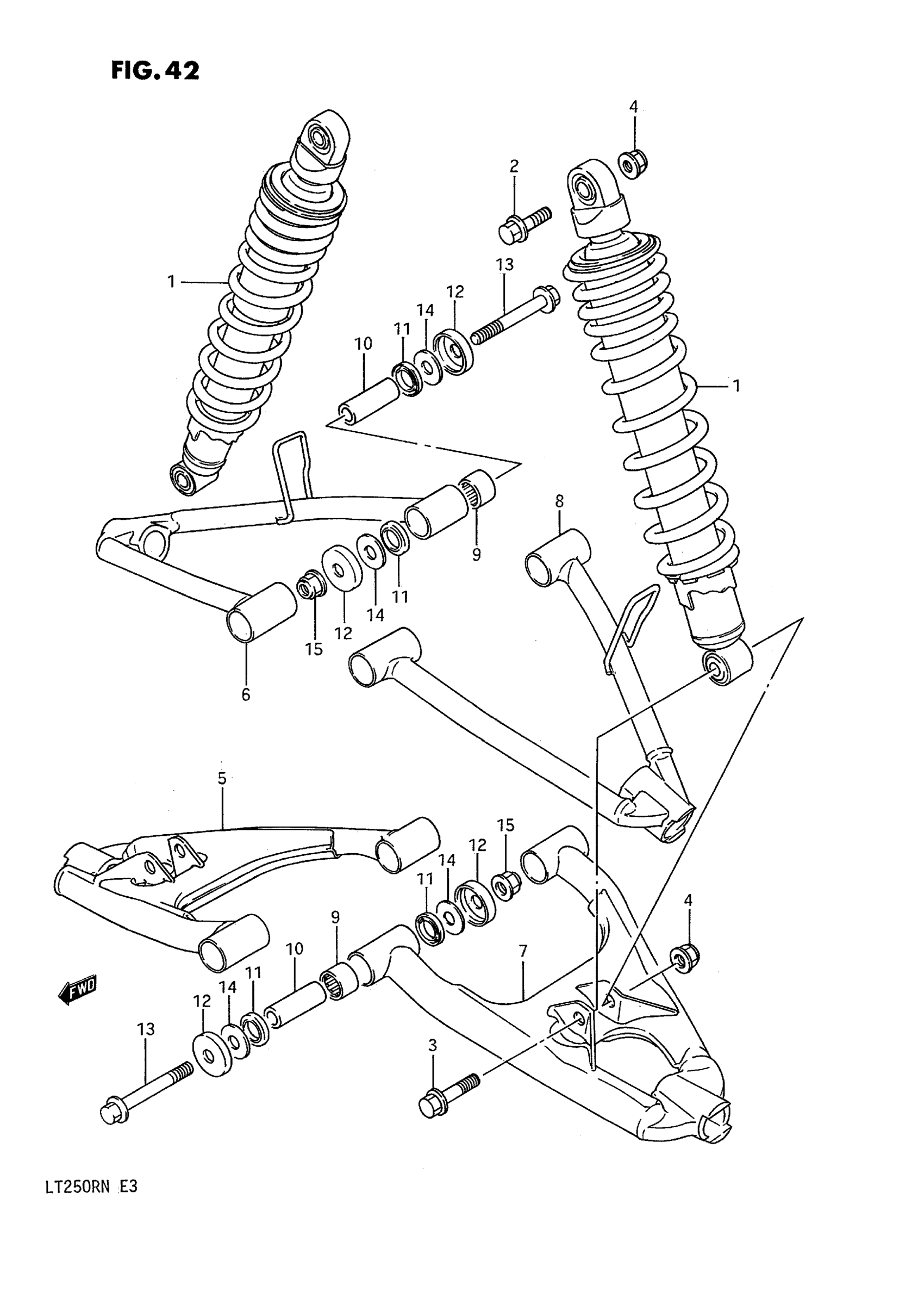

Suzuki LT250R (1992) SUSPENSION ARM (MODEL H/J/K/L/M/N) Diagram

#

Description
Price

1

SHOCK ABSORBER, FRONT (YELLOW) | MODEL H

52100-01C00-163

Unavailable

1

SHOCK ABSORBER, FRONT (YELLOW) | MODEL J/K/L/M/N

52100-01C10-163

Unavailable

2

BOLT This part replaces 09103-10128.

09103-10019

$2.63

3

BOLT, SHOCK ABSORBER LOWER

09103-10126

$4.50

4

NUT This part replaces 08319-31106.

08319-31107

$2.73

5

ARM, SUSPENSION, LOWER RH | MODEL H/J This part replaces 52410-01C00.

52410-01C10

Unavailable

5

ARM, SUSPENSION, LOWER RH | MODEL K/L/M/N

52410-01C10

Unavailable

6

ARM, SUSPENSION, UPPER RH | MODEL H/J This part replaces 52430-01C00.

52430-01C10

Unavailable

6

ARM, SUSPENSION, UPPER RH | MODEL K/L/M/N

52430-01C10

Unavailable

7

ARM, SUSPENSION,LOWER LH | MODEL H/J This part replaces 52420-01C00.

52420-01C10

Unavailable

7

ARM, SUSPENSION,LOWER LH | MODEL K/L/M/N

52420-01C10

Unavailable

8

ARM, SUSPENSION,UPPER LH | MODEL H/J This part replaces 52440-01C00.

52440-01C10

Unavailable

8

ARM, SUSPENSION,UPPER LH | MODEL K/L/M/N

52440-01C10

Unavailable

9

.BEARING (17X24X25) This part replaces 09263-17020.

09263-17053

$21.66

10

SPACER (10X17X50)

52455-43B00

$21.67

11

.SEAL,OIL (17X24X3) This part replaces 62647-02B00.

09285-17007

$3.76

12

SEAL,DUST This part replaces 52454-43B00.

52454-43B01

$7.73

13

BOLT,10X77 This part replaces 09103-10186.

09103-10247-XC0

$6.02

14

WASHER, SUSPENSION ARM PIVOT

08211-10281

$2.03

15

NUT

08319-31107

$2.73
