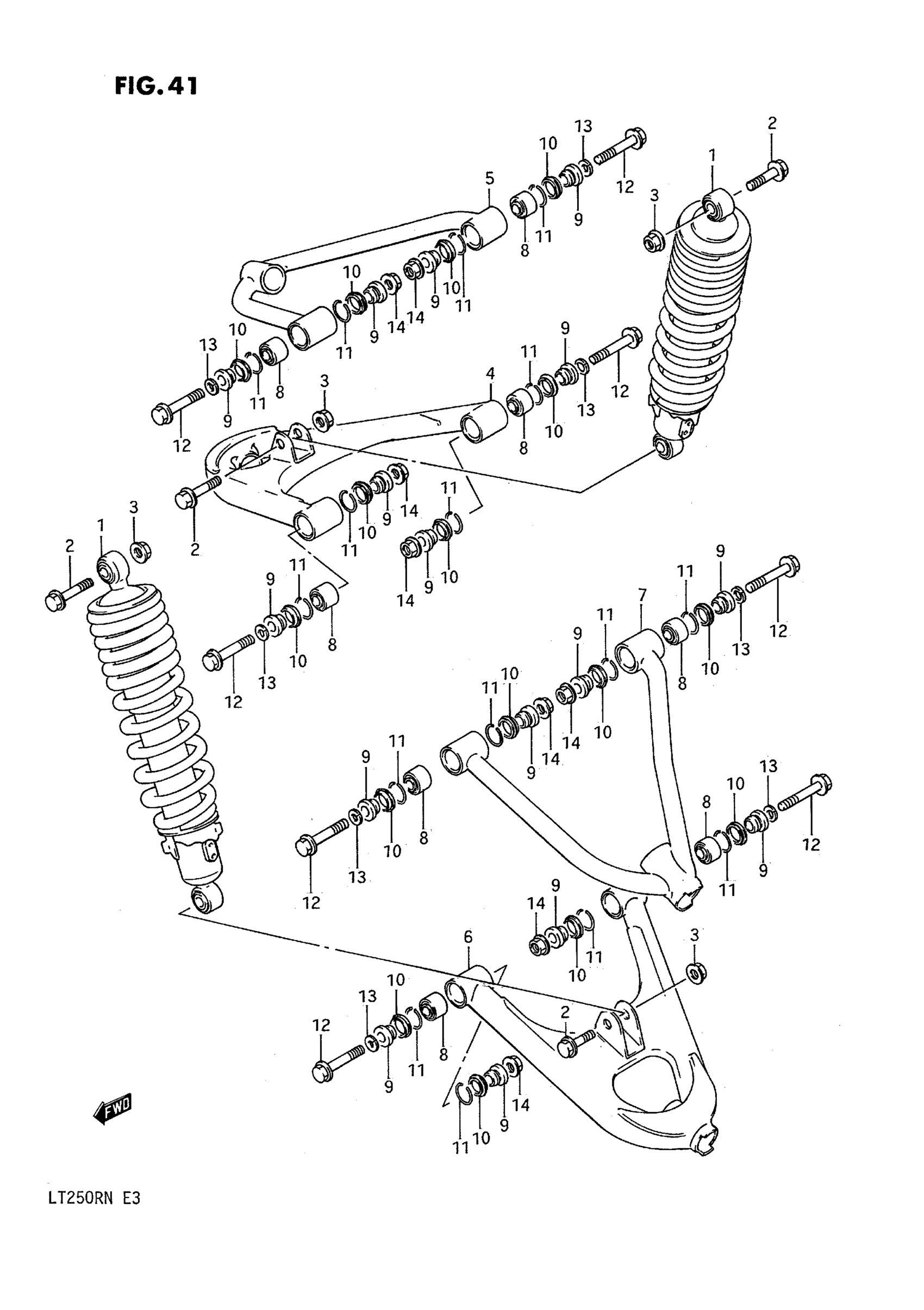

Suzuki LT250R (1992) SUSPENSION ARM (MODEL F/G) Diagram

#

Description
Price

1

SHOCK ABSORBER, FRONT (YELLOW) | MODEL F

52100-19A00-163

Unavailable

1

SHOCK ABSORBER, FRONT (YELLOW) | MODEL G

52100-19A10-163

Unavailable

2

BOLT This part replaces 09103-10128.

09103-10019

$2.63

3

NUT

08319-31107

$2.73

4

ARM, SUSPENSION, LOWER RH

52410-19A00

Unavailable

5

ARM, SUSPENSION, UPPER RH

52430-19A00

Unavailable

6

ARM, SUSPENSION,LOWER LH

52420-19A00

Unavailable

7

ARM, SUSPENSION,UPPER LH

52440-19A00

Unavailable

8

BEARING, SUSPENSION ARM

09269-10006

Unavailable

9

SPACER

52419-19A00

$12.40

10

DUST SEAL

62647-14500

$2.92

11

STOPPER RING, BEARING

62657-14500

Unavailable

12

BOLT, SUSPENSION ARM PIVOT

09103-10107

$4.60

13

LOCK WASHER This part replaces 08321-21104.

08321-0110A

$1.84

14

NUT This part replaces 08319-31105.

08319-3110A

$2.73
