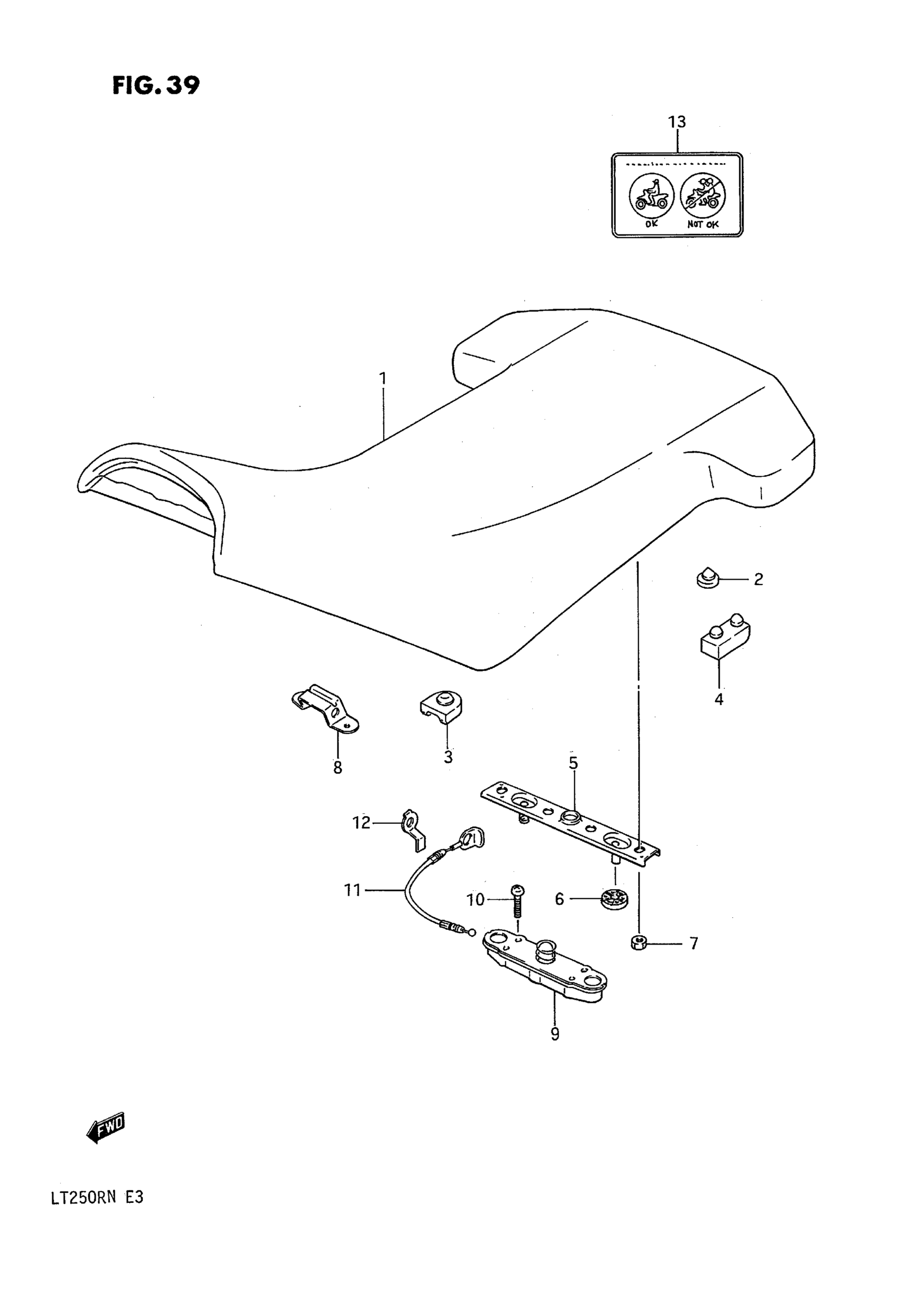

Suzuki LT250R (1992) SEAT Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL F This part replaces 45100-19A00-58D.

45100-19A01-58P

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 45100-19A01-58D.

45100-19A01-58P

Unavailable

1

SEAT ASSY (BLUE) | MODEL H This part replaces 45100-01C00-4UZ.

45100-01C50-4UZ

Unavailable

1

SEAT ASSY (BLUE) | MODEL J This part replaces 45100-01C10-4UZ.

45100-01C50-4UZ

Unavailable

1

SEAT ASSY (BLUE) | MODEL K This part replaces 45100-01C30-4UZ.

45100-01C50-4UZ

Unavailable

1

SEAT ASSY (BLUE) | MODEL L

45100-01C50-4UZ

Unavailable

1

SEAT ASSY | MODEL M/N; Includes Item(s) 2 - 7

45100-01C70-6LK

Unavailable

2

CUSHION

09321-10002

$2.22

3

CUSHION

45149-19A00

Unavailable

4

CUSHION

45149-24500

Unavailable

5

PLATE, STRIKER

45215-43400

Unavailable

6

CUSHION, BOSS

45213-13601

$2.79

7

NUT This part replaces 08316-26066.

08316-1006B

$2.50

8

PLATE, SEAT FRONT HOOK

45119-19A00

$4.93

9

LOCK ASSY, SEAT STRIKER | MODEL F

45220-13601

$80.52

9

LOCK ASSY, SEAT STRIKER | MODEL G/H/J/K/L/M/N

45220-19A10

Unavailable

10

SCREW, SEAT SUPPORT BRK This part replaces 02112-06306.

02112-0630A

$1.78

11

CABLE, SEAT LOCK | MODEL F/G/H This part replaces 45280-19A00.

45280-43B00

Unavailable

11

CABLE, SEAT LOCK | MODEL J/K/L/M/N

45280-43B00

Unavailable

12

PLATE, SEAT LOCK CABLE

45221-19A00

Unavailable

13

LABEL,WARNING This part replaces 68367-04610.

68367-04611

Unavailable
