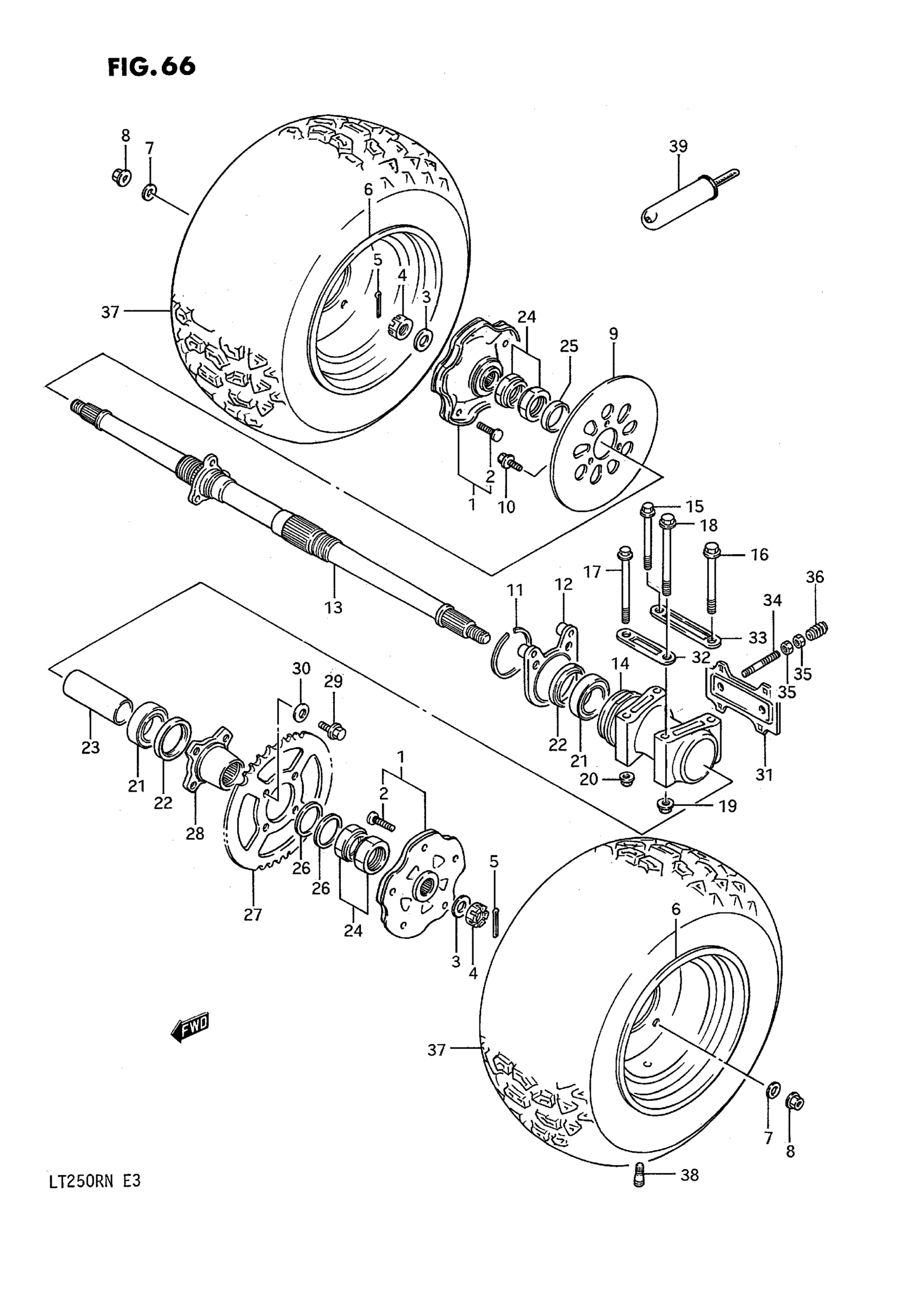

Suzuki LT250R (1992) REAR WHEEL (MODEL H/J/K/L/M/N) Diagram

#

Description
Price

1

HUB, REAR (25X24X1) (BLUE) | MODEL H/J

64110-01C10-19F

Unavailable

1

HUB, REAR (BLUE) | MODEL K/L/M/N; Includes Item(s) 2 This part replaces 64110-01C20-19F.

64110-43B00-19F

Unavailable

2

BOLT

09119-10047

Unavailable

3

WASHER | MODEL H/J

09164-18004

$3.76

3

WASHER | MODEL K/L/M/N

09164-20002

$3.70

4

NUT | MODEL H/J

09141-18008

$8.37

4

NUT, HUB | MODEL K/L/M/N This part replaces 09141-20003.

09141-20002

$5.11

5

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49

6

RIM, REAR WHEEL (SILVER)

65310-43B00

Unavailable

7

WASHER This part replaces 08322-21108.

08322-01107

$2.15

8

NUT This part replaces 08316-26107.

08316-2010B

$3.43

9

DISC, REAR BRAKE

69211-01C00

Unavailable

10

BOLT

09103-08147

$3.72

11

CIRCLIP

69729-19A00

Unavailable

12

BRACKET, CALIPER

69720-22A10

Unavailable

13

AXLE, REAR (L:906) | MODEL H This part replaces 64710-01C00.

64710-01C01

Unavailable

13

AXLE, REAR (L:906) | MODEL J

64710-01C01

Unavailable

13

AXLE, REAR (L:894) | MODEL K/L

64710-01C10

Unavailable

13

AXLE, REAR (L:916) | MODEL M/N

64710-01C60

Unavailable

14

HOUSING, AXLE BEARING

64715-01C00

Unavailable

15

BOLT, REAR RH

09103-10148

$6.94

16

BOLT, REAR LH

09103-12027

Unavailable

17

BOLT, FRONT RH

09103-10076

$7.18

18

BOLT, FRONT LH

09103-12026

Unavailable

19

NUT This part replaces 08319-31128.

08319-3112A

$3.76

20

NUT, RH

08319-31107

$2.73

21

BEARING

08123-60087

$44.10

22

DUST SEAL

09283-50006

$21.88

23

SPACER, AXLE BEARING

64731-19A00

Unavailable

24

NUT, AXLE

64870-19A00

$83.40

25

SPACER, FLANGE

64214-19A00

$13.10

26

WASHER

09164-38001

$5.27

27

SPROCKET, REAR (NT:42)

64511-19A00

Unavailable

27

SPROCKET, REAR | OPT This part replaces 64511-01C20.

64511-07G10

$103.33

27

SPROCKET, REAR (NT:41) | OPT

64511-22A00

Unavailable

27

SPROCKET, REAR (NT:43) | OPT

64511-19A10

Unavailable

28

FLANGE, REAR SPROCKET MOUNTING This part replaces 64611-01C00.

64611-07G11

$193.52

29

BOLT This part replaces 09103-10171.

09103-10354

$4.17

30

WASHER

09164-10008

$1.71

31

PLATE, CHAIN ADJUSTER

61421-01C01

$45.83

32

WASHER, FRONT

64718-01C00

Unavailable

33

WASHER, REAR

64719-01C00

Unavailable

34

BOLT,STUD This part replaces 09108-08209.

09108-08209-XC0

$4.64

35

NUT | MODEL H/J/K/L This part replaces 08310-22088.

08310-00087

$2.13

35

NUT | MODEL M/N

08319-31087

$2.32

36

BOOT

61425-43B00

$4.48

37

TIRE, REAR (AT21X10-10) DUNLOP | MODEL H This part replaces 65100-01C30.

65100-01C51

Unavailable

37

TIRE, REAR (AT21X10-10) DUNLOP | MODEL J This part replaces 65100-01C31.

65100-01C51

Unavailable

37

TIRE, REAR (AT21X10-10) DUNLOP | MODEL H/J/K This part replaces 65100-01C50.

65100-01C51

Unavailable

37

TIRE, REAR (AT21X10-10) DUNLOP | MODEL L/M/N

65100-01C51

Unavailable

38

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

$9.25

39

GAUGE ASSY,AIR PRESSUR This part replaces 96200-18A01.

96200-18A02

$58.92
