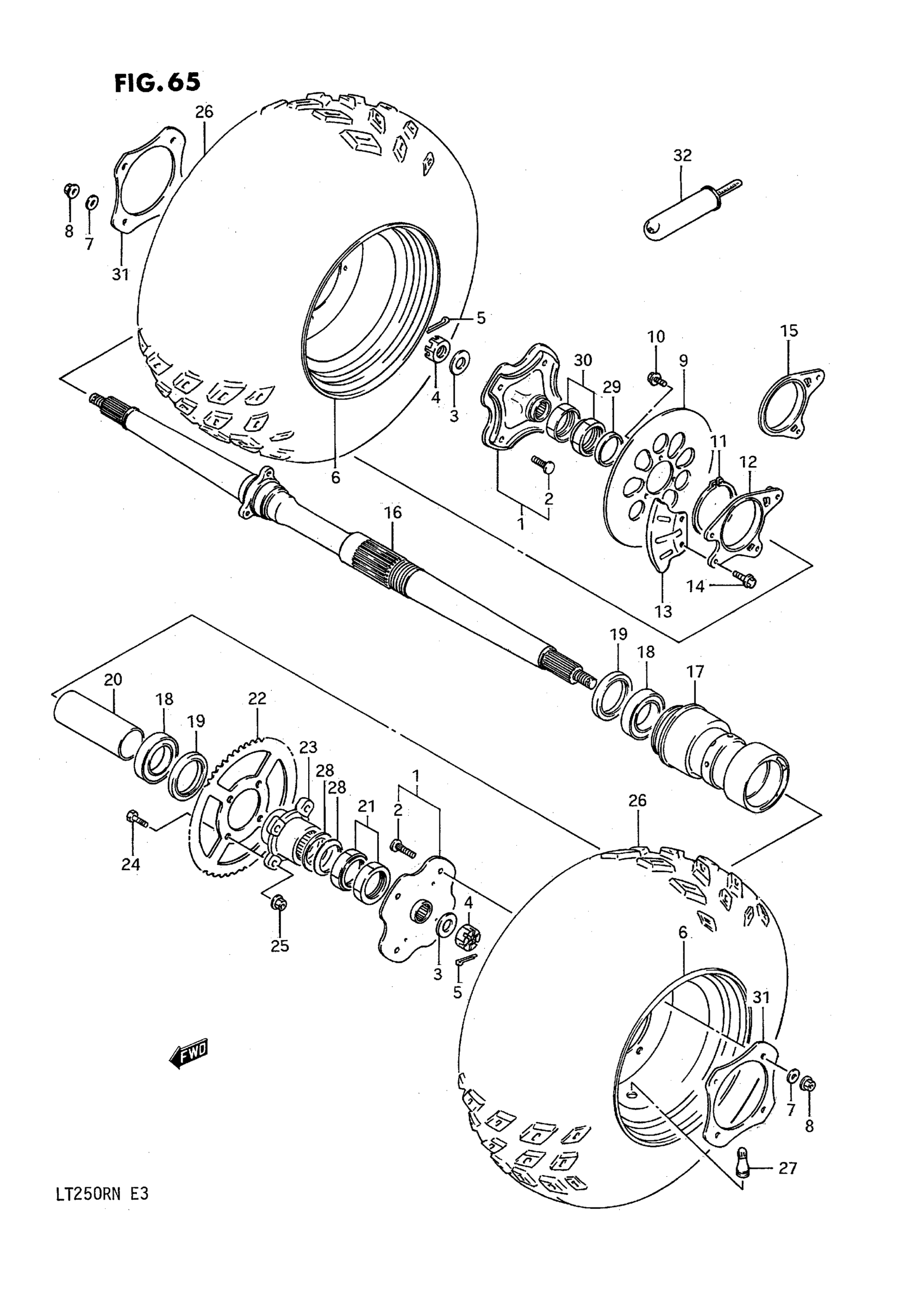

Suzuki LT250R (1992) REAR WHEEL (MODEL F/G) Diagram

#

Description
Price

1

HUB, REAR | Includes Item(s) 2

64110-19A11

Unavailable

2

BOLT This part replaces 09119-10045.

09119-10045-XC0

$2.38

3

WASHER

09164-18004

$3.76

4

NUT, HUB This part replaces 09141-18004.

09141-18008

$8.37

5

PIN, COTTER This part replaces 04111-40356.

04111-4040A

$1.49

6

RIM, REAR WHEEL (GOLD)

65310-19A01

Unavailable

7

WASHER, KNUCKLE END This part replaces 08322-21106.

08322-0110A

$1.84

8

NUT This part replaces 08316-26106.

08316-2010B

$3.43

9

DISC, REAR BRAKE | MODEL F This part replaces 69211-19A00.

69211-19A01

Unavailable

9

DISC, REAR BRAKE | MODEL G

69211-19A01

Unavailable

10

BOLT

09103-08147

$3.72

11

CIRCLIP

69729-19A00

Unavailable

12

BRACKET, CALIPER | MODEL F

69720-22A00

Unavailable

13

GUARD, DISC | MODEL F

69760-22A00

Unavailable

14

BOLT (8X16) | MODEL F This part replaces 01517-08166.

01550-0816A

$2.32

15

BRACKET, CALIPER | MODEL G

69720-22A10

Unavailable

16

AXLE, REAR

64710-19A00

Unavailable

17

HOUSING

64720-19A00

Unavailable

18

BEARING

08123-60087

$44.10

19

DUST SEAL

09283-50006

$21.88

20

SPACER

64731-19A00

Unavailable

21

NUT, AXLE

64870-19A00

$83.40

22

SPROCKET, REAR (NT:42)

64511-19A00

Unavailable

22

SPROCKET, REAR (NT:43) | OPT

64511-19A10

Unavailable

22

SPROCKET, REAR (NT:44) | OPT

64511-19A20

Unavailable

22

SPROCKET, REAR (NT:45) | OPT

64511-19A30

Unavailable

23

FLANGE

64611-19A00

Unavailable

24

BOLT

09103-10129

Unavailable

25

NUT

08319-31107

$2.73

26

TIRE, T/L REAR (22X11.00) | DUNLOP

65100-19A55

Unavailable

27

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

$9.25

28

WASHER

09164-38001

$5.27

29

SPACER, FLANGE

64214-19A00

$13.10

30

NUT, FLANGE

64870-19A00

$83.40

31

WASHER, WHEEL

64115-19A10

Unavailable

32

GAUGE ASSY,AIR PRESSUR | MODEL G This part replaces 96200-18A01.

96200-18A02

$58.92
