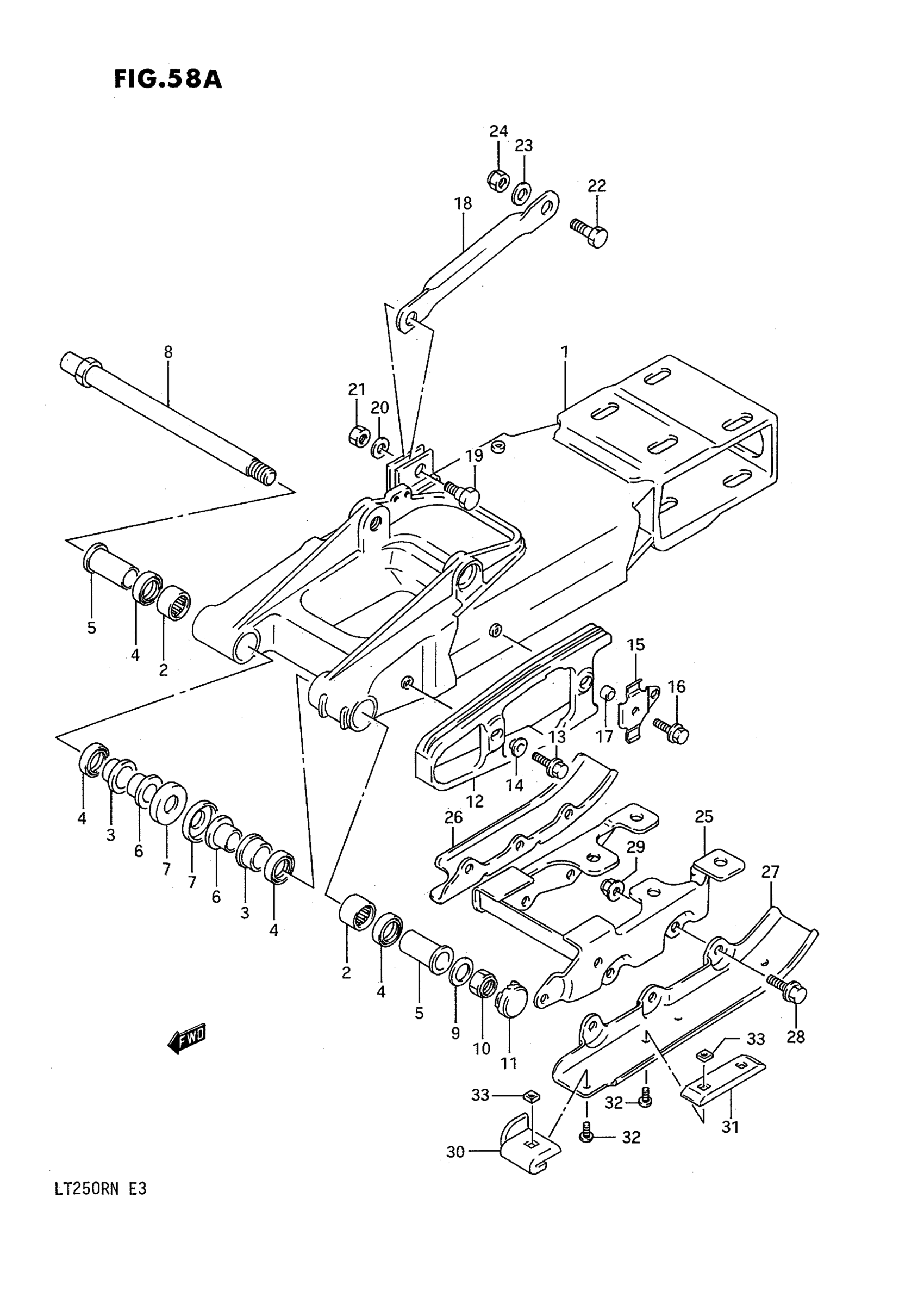

Suzuki LT250R (1992) REAR SWINGING ARM (MODEL M/N) Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | Includes Item(s) 2 - 4

61000-01C60

Unavailable

2

BEARING

09263-20041

$26.47

3

BUSH This part replaces 61261-40402.

61261-27C00

Unavailable

4

DUST SEAL, INNER This part replaces 09285-20005.

09283-20031

$5.24

5

SPACER

61251-19A00

Unavailable

6

SPACER, INNER

61252-14100

Unavailable

7

SEAL, DUST This part replaces 61262-40400.

61262-40401

$5.93

8

NO DESCRIPTION AVAILABLE This part replaces 61211-01C60.

61211-01C6V

Unavailable

9

WASHER

09160-14009

$2.82

10

NUT This part replaces 09159-14013.

09159-14019

$11.61

11

CAP (BLUE)

61222-13A00-19F

Unavailable

12

BUFFER, CHAIN TOUCH DEFENCE

61273-01C60

Unavailable

13

BOLT This part replaces 01517-06203.

01550-0620A

$1.97

14

WASHER

09169-06057

$3.18

15

BRACKET, CHAIN BUFFER

61276-01C60

Unavailable

16

BOLT This part replaces 01517-06203.

01550-0620A

$1.97

17

SPACER This part replaces 09180-06236.

09180-06256

$2.09

18

TORQUE LINK, REAR

64311-01C60

Unavailable

19

BOLT, FRONT

09111-08061

Unavailable

20

WASHER This part replaces 08322-11088.

08322-01087

$2.13

21

NUT This part replaces 08319-21088.

08319-2108A

$2.12

22

BOLT, REAR

09100-10230

Unavailable

23

WASHER This part replaces 08322-11107.

08322-01107

$2.15

24

NUT

09159-10027

$3.10

25

STAY, GUARD

61390-01C00

Unavailable

26

GUARD, DISC PLATE

61391-43B01

Unavailable

27

GUARD, SPROCKET

61392-43B00

Unavailable

28

BOLT, REAR LH This part replaces 01517-08207.

01550-08207

$2.69

29

NUT

08319-31087

$2.32

20

BUFFER, SPROCKET GUARD

61396-19A13

Unavailable

31

BUFFER, SPROCKET GUARD

61397-43B01

Unavailable

32

SCREW This part replaces 02142-05104.

02142-0510B

$1.78

33

NUT This part replaces 08318-11056.

08318-1105A

$1.50
