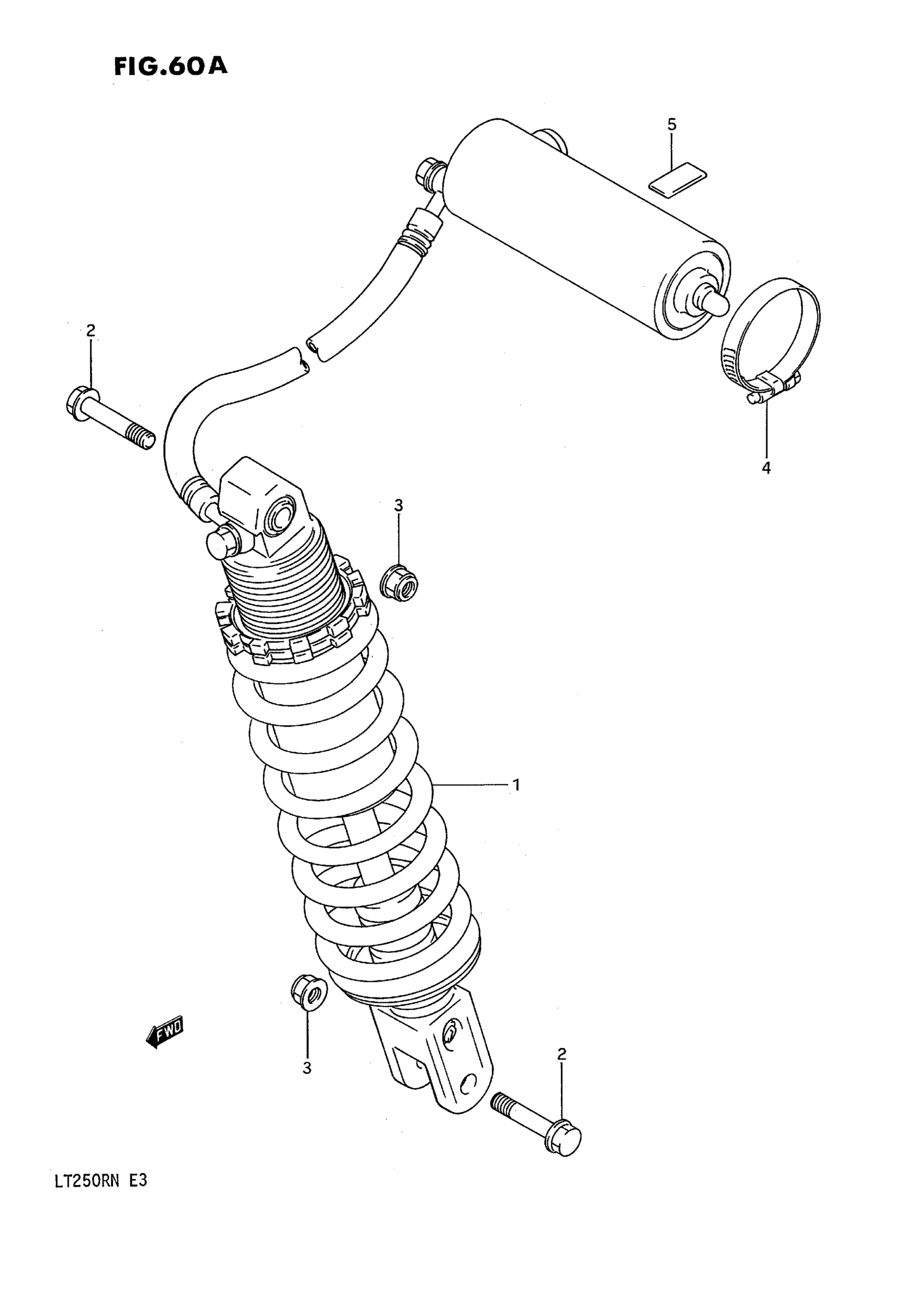

Suzuki LT250R (1992) REAR SHOCK ABSORBER (MODEL M/N) Diagram

#

Description

Price

1

ABSORBER ASSY, REAR SHOCK (YELLOW)

62100-01C60-163

Unavailable

2

BOLT, LOWER (10X54) This part replaces 62311-28C00.

62311-28E00

$6.19

3

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

4

CLAMP This part replaces 09402-70501.

09402-70503

$18.42

5

CUSHION, TANK This part replaces 62423-01C00.

53146-20C00

$7.05
