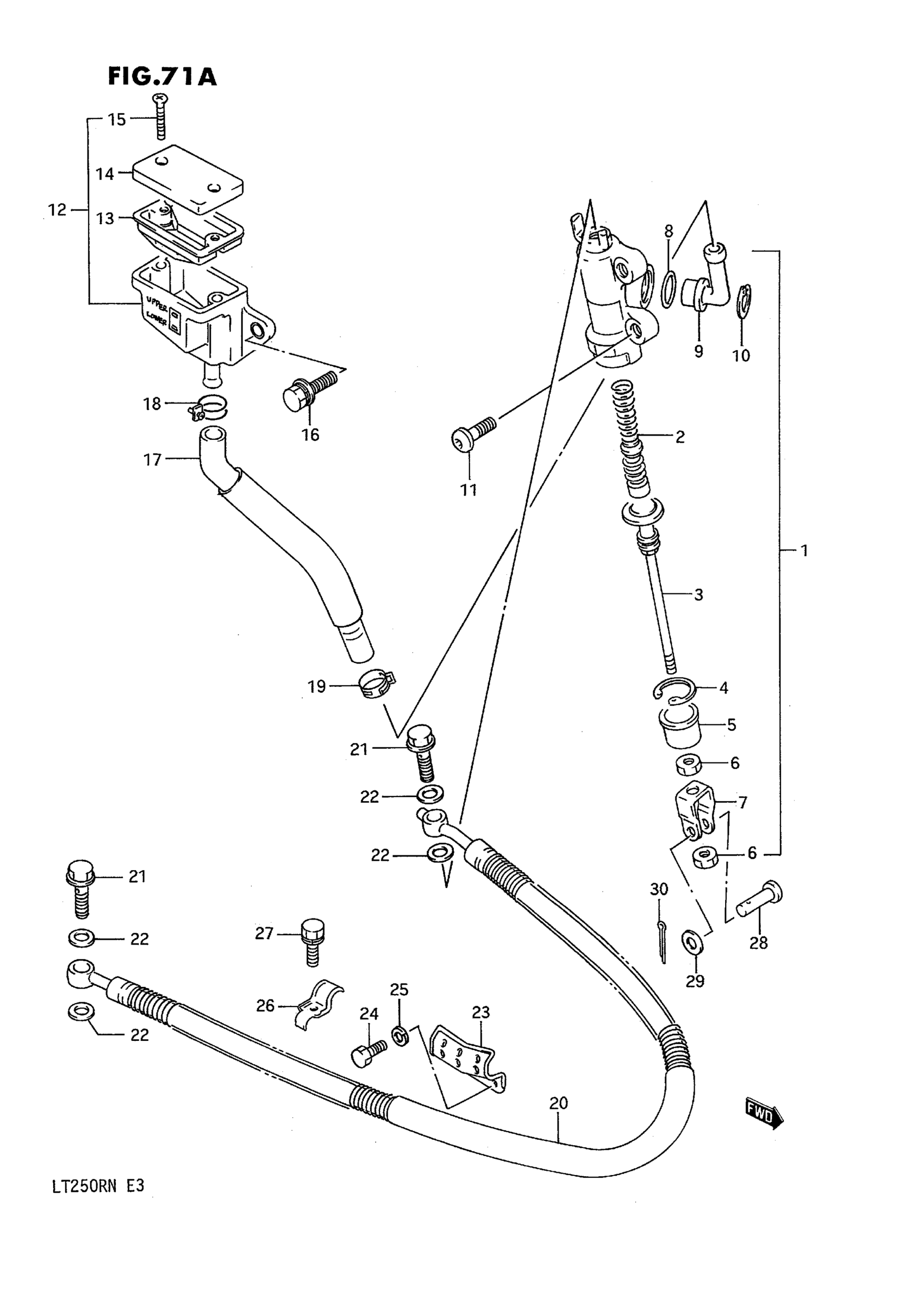

Suzuki LT250R (1992) REAR MASTER CYLINDER (MODEL M/N) Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 10

69600-01C00

Unavailable

2

PISTON & CUP SET

69600-04810

$49.42

3

ROD, PUSH

69670-00A00

Unavailable

4

CIRCLIP

51162-70040

$3.25

5

.BOOT

69691-00A00

$5.30

6

NUT This part replaces 69693-22A00.

69693-05A00

$1.96

7

YOKE

69692-22A00

Unavailable

8

O RING

69686-34200

$2.93

9

CONNECTOR

69672-00B20

$7.01

10

CIRCLIP

69674-00B20

$3.97

11

BOLT

09106-06064

$6.02

12

TANK ASSY,RR RESERVOIR | Includes Item(s) 13 - 15 This part replaces 69740-01D01.

69740-01D02

$70.49

13

DIAPHRAGM

59667-04700

$9.78

14

CAP

69669-24A01

$15.10

15

SCREW

69689-04A00

$1.78

16

BOLT This part replaces 01174-06166.

01580-0616A

$2.42

17

HOSE, TANK

69730-01C00

Unavailable

18

CLAMP This part replaces 09400-16302.

09400-16304

$3.10

19

CLIP This part replaces 09401-12402.

09401-12404

$2.34

20

HOSE, REAR BRAKE

69480-01C10

Unavailable

21

BOLT

09360-10017

$3.42

22

WASHER (10X15X1.5)

09161-10009

$1.84

23

CLAMP, BRAKE HOSE FRONT

61196-01C00

Unavailable

24

BOLT This part replaces 01107-05108.

01500-0510B

$1.80

25

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.84

26

CLAMP, BRAKE HOSE REAR

61197-01C00

Unavailable

27

BOLT This part replaces 01137-06167.

01570-06167

$3.03

28

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

$4.11

29

.WASHER This part replaces 08322-21066.

08322-0106B

$2.26

30

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49
