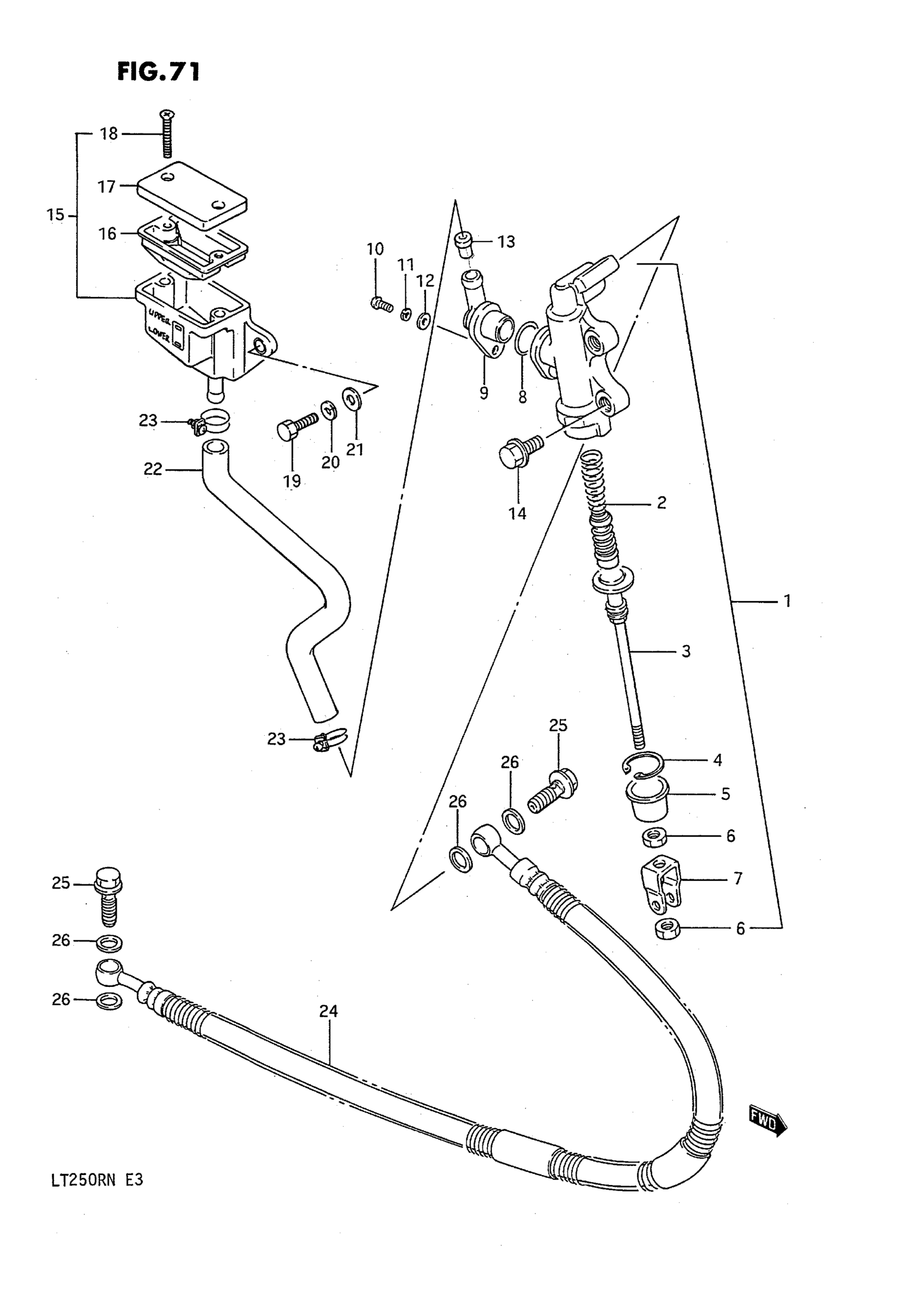

Suzuki LT250R (1992) REAR MASTER CYLINDER (MODEL H/J/K/L) Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER (WHITE) | MODEL H/J This part replaces 69600-43B00.

69600-43B01

Unavailable

1

CYLINDER ASSY, REAR MASTER (WHITE) | MODEL K/L; Includes Item(s) 2 - 13

69600-43B01

Unavailable

2

PISTON & CUP SET This part replaces 69600-16820.

69600-04810

$55.78

3

ROD, PUSH

69670-05A00

Unavailable

4

CIRCLIP

51162-70040

$3.67

5

.BOOT

69691-00A00

$5.00

6

NUT This part replaces 69693-24A00.

69693-05A00

$1.86

7

YOKE

69692-19A00

$19.03

8

O RING

69686-34200

$2.80

9

CONNECTOR

69672-05A00

$5.23

10

SCREW This part replaces 02112-04124.

02112-0412A

$1.24

11

LOCK WASHER This part replaces 08321-21045.

08321-0104A

$1.86

12

WASHER This part replaces 08322-21045.

08322-0104A

$1.92

13

CHOKE

69675-43B00

Unavailable

14

BOLT

09103-08149

Unavailable

15

TANK ASSY,RR RESERVOIR | MODEL H/J/K This part replaces 69740-27A31.

69740-01D02

$64.52

15

TANK ASSY,RR RESERVOIR | MODEL L; Includes Item(s) 16 - 18 This part replaces 69740-25C00.

69740-01D02

$64.52

16

DIAPHRAGM

59667-04700

$8.95

17

CAP | MODEL H/J/K This part replaces 59669-04710.

69669-24A01

$14.23

17

CAP | MODEL L

69669-24A01

$14.23

18

SCREW

69689-04A00

$2.15

19

BOLT This part replaces 01107-06166.

01500-0616A

$1.77

20

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.83

21

.WASHER This part replaces 08322-21066.

08322-0106B

$2.24

22

HOSE, TANK

69731-19A10

Unavailable

23

CLAMP This part replaces 09400-16302.

09400-16304

$2.84

24

HOSE,RR BRAKE This part replaces 69480-01C00.

69480-01C01

Unavailable

25

BOLT

09360-10017

$3.08

26

WASHER (10X15X1.5)

09161-10009

$1.83
