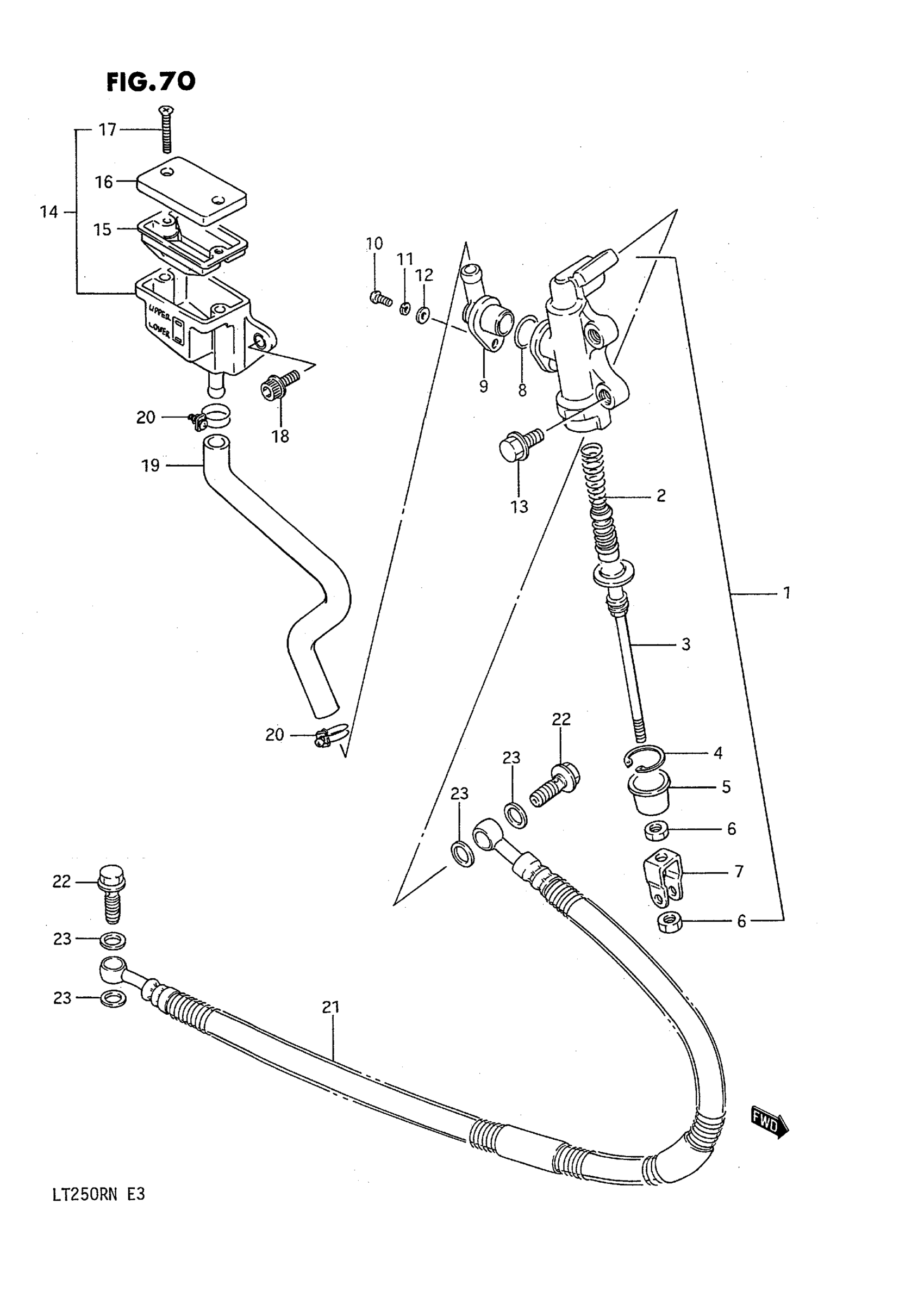

Suzuki LT250R (1992) REAR MASTER CYLINDER (MODEL G) Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER (WHITE) | !69600-43B00; Includes Item(s) 2 - 12 This part replaces 69600-19A00.

69600-43B01

Unavailable

2

PISTON & CUP SET This part replaces 69600-16820.

69600-04810

$49.42

3

ROD, PUSH

69670-05A00

Unavailable

4

CIRCLIP

51162-70040

$3.25

5

.BOOT

69691-00A00

$5.30

6

NUT

69693-05A00

$1.96

7

YOKE

69692-19A00

$16.87

8

O RING

69686-34200

$2.93

9

CONNECTOR

69672-05A00

$5.56

10

SCREW This part replaces 02112-04124.

02112-0412A

$1.49

11

LOCK WASHER This part replaces 08321-21045.

08321-0104A

$1.84

12

WASHER This part replaces 08322-21045.

08322-0104A

$1.91

13

BOLT

09103-08149

Unavailable

14

TANK ASSY,RR RESERVOIR | Includes Item(s) 15 - 17 This part replaces 69740-27A31.

69740-01D02

$70.49

15

DIAPHRAGM

59667-04700

$9.78

16

CAP This part replaces 59669-04710.

69669-24A01

$15.10

17

SCREW

69689-04A00

$1.78

18

BOLT, EXHAUST COVER This part replaces 07120-06166.

07120-0616B

$2.45

19

HOSE, TANK

69731-19A10

Unavailable

20

CLAMP This part replaces 09400-16302.

09400-16304

$3.10

21

HOSE

69480-19A00

Unavailable

22

BOLT

09360-10017

$3.42

23

WASHER (10X15X1.5)

09161-10009

$1.84
