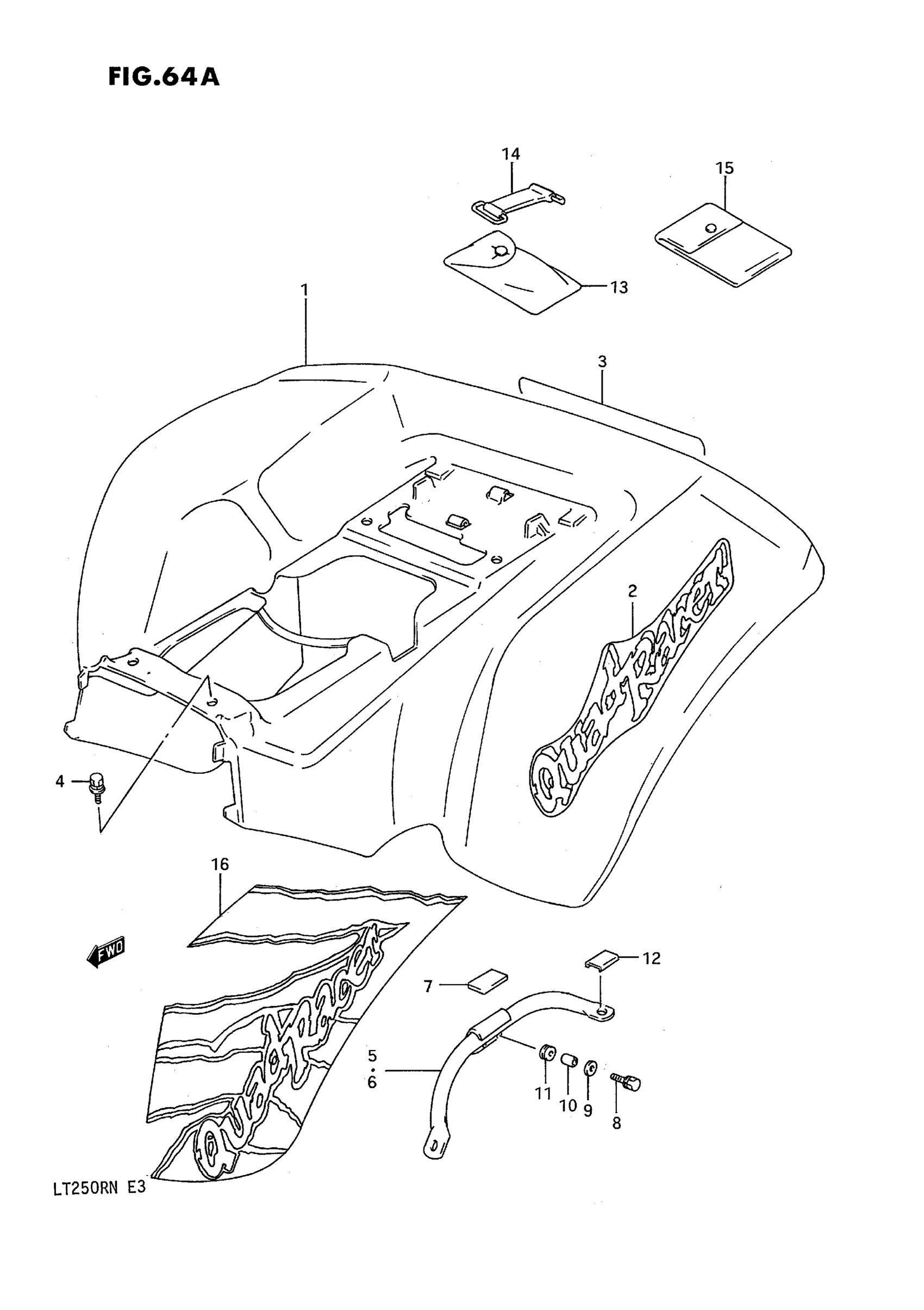

Suzuki LT250R (1992) REAR FENDER (MODEL M/N) Diagram

#

Description
Price

1

FENDER, REAR (YELLOW)

63110-01C00-25Y

Unavailable

2

EMBLEM, Q,R | MODEL M

68171-01C50-1DU

Unavailable

3

EMBLEM, SUZUKI | MODEL M/N

68174-35B00-9SG

Unavailable

4

BOLT

09118-06017

$2.12

5

REINFORCEMENT, RH

63140-01C00

Unavailable

6

REINFORCEMENT, LH

63150-01C00

Unavailable

7

CUSHION This part replaces 63149-01C00.

63191-25C00

$3.05

8

BOLT This part replaces 01137-06206.

01570-0620A

$2.19

9

WASHER (6.5X18X1.6) This part replaces 09160-06057.

09160-06109

$1.49

10

SPACER This part replaces 09180-06152.

09180-06262

$2.55

11

CUSHION

09320-09016

$1.97

12

CUSHION(OD:30) This part replaces 09250-12011.

09250-12018

$3.70

13

TOOL SET This part replaces 09800-00354.

09800-21033

$48.22

14

BAND

09462-00033

$3.20

15

BAG,OWNER'S MAN This part replaces 94980-01C01.

94980-01C02

$20.65

16

TAPE, FENDER RH | MODEL N

68175-01C00-L58

Unavailable

16

TAPE, FENDER LH | MODEL N

68176-01C00-L58

Unavailable
