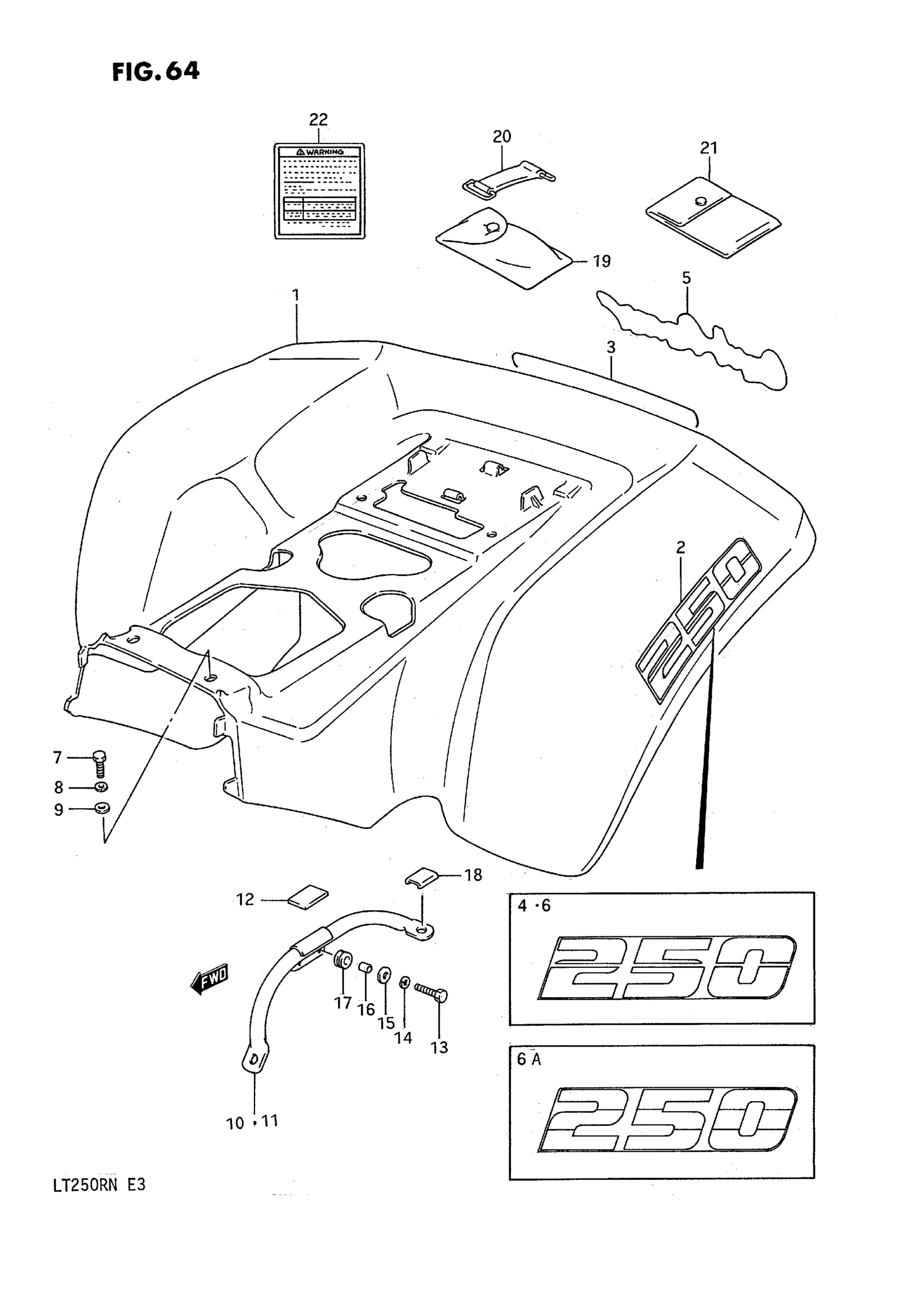

Suzuki LT250R (1992) REAR FENDER (MODEL H/J/K/L) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | !63110-01C20-25Y This part replaces 63111-19A00-25Y.

63110-01C20-25Y

Unavailable

2

EMBLEM, 250 | MODEL H

68177-01C00-9BY

Unavailable

3

EMBLEM, QUAD RACER | MODEL H

68177-01C10-9BS

Unavailable

4

EMBLEM, 250 | MODEL J

68177-01C20-9SF

Unavailable

5

EMBLEM, QUAD RACER | MODEL J

68171-01C20-9BS

Unavailable

6

EMBLEM, 250 | MODEL K

68171-01C30-2SE

Unavailable

6A

EMBLEM, 250 | MODEL L

68171-01C40-9SD

Unavailable

7

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

$1.97

8

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

9

WASHER This part replaces 09160-06006.

09160-06084

$1.78

10

REINFORCEMENT, RH

63140-01C00

Unavailable

11

REINFORCEMENT, LH

63150-01C00

Unavailable

12

CUSHION This part replaces 63149-01C00.

63191-25C00

$3.05

13

BOLT, GEAR SHIFT LINK This part replaces 01107-06206.

01500-0620A

$1.78

14

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

15

WASHER (6.5X18X1.6) This part replaces 09160-06057.

09160-06109

$1.49

16

SPACER This part replaces 09180-06152.

09180-06262

$2.55

17

CUSHION

09320-09016

$1.97

18

CUSHION(OD:30) This part replaces 09250-12011.

09250-12018

$3.70

19

TOOL SET This part replaces 09800-00354.

09800-21033

$48.22

20

BAND

09462-00033

$3.20

21

BAG, MANUAL | MODEL H/J/K

94980-18B00

Unavailable

21

BAG,OWNER'S MAN | MODEL L This part replaces 94980-01C00.

94980-01C02

$20.65

22

LABEL, TIRE AIR PRESSURE

68332-01C30

Unavailable
