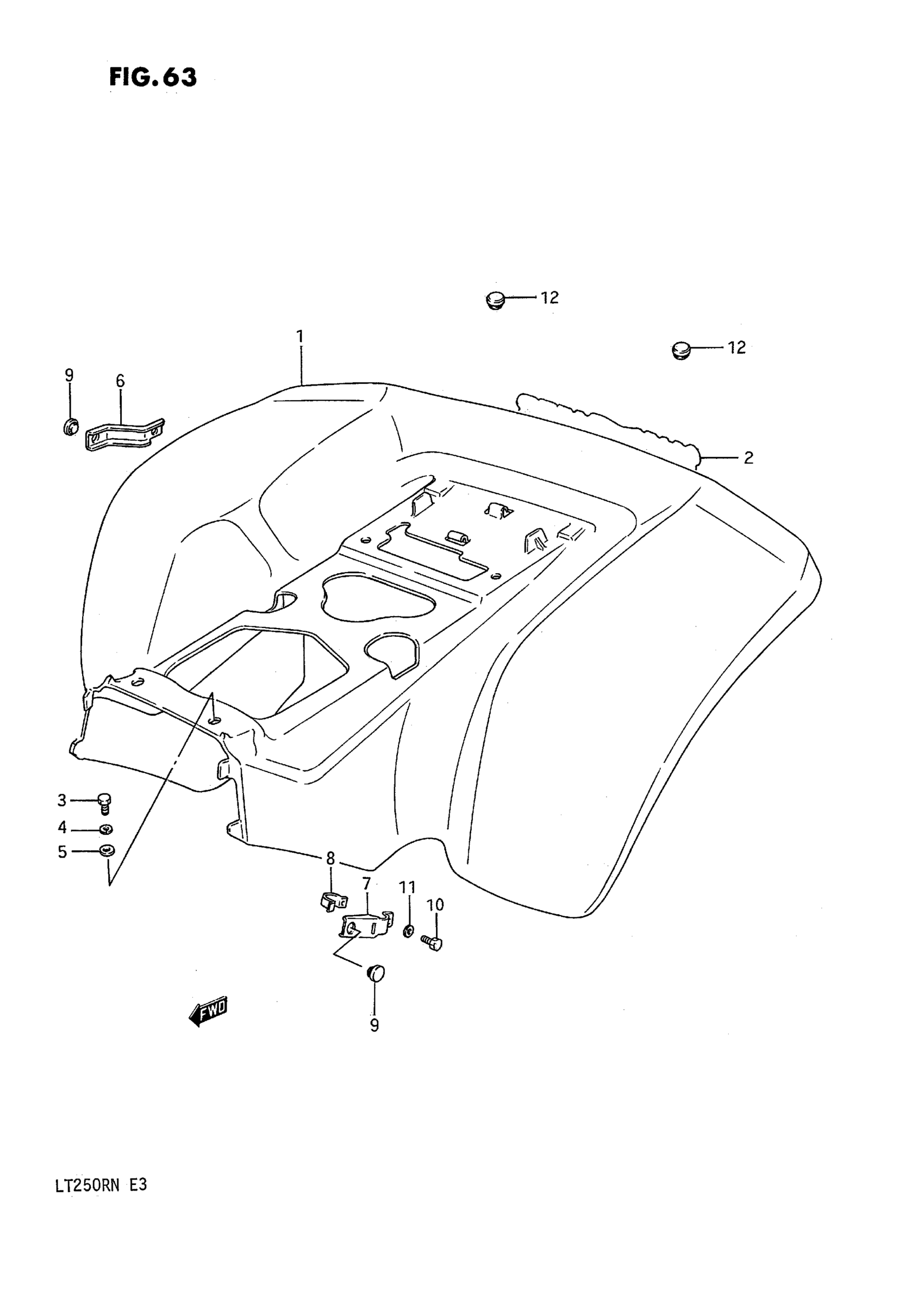

Suzuki LT250R (1992) REAR FENDER (MODEL F/G) Diagram

#

Description

Price

1

NO DESCRIPTION AVAILABLE | !63110-01C20-163 This part replaces 63111-19A00-163.

63110-01C20-25Y

Unavailable

2

EMBLEM

68233-19A11-97J

Unavailable

3

BOLT This part replaces 01107-06166.

01500-0616A

$1.78

4

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

5

WASHER This part replaces 09160-06006.

09160-06084

$1.78

6

REINFORCEMENT, FRONT RH

63141-19A01

Unavailable

7

REINFORCEMENT, FRONT LH

63151-19A00

Unavailable

8

CLAMP

63160-19A00

Unavailable

9

CAP (OD:20) This part replaces 09250-12006.

09250-12016

$1.92

10

BOLT This part replaces 01107-06126.

01500-0612A

$1.78

11

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

12

PLUG (OD:19) This part replaces 09250-15007.

09250-15010

$2.08
