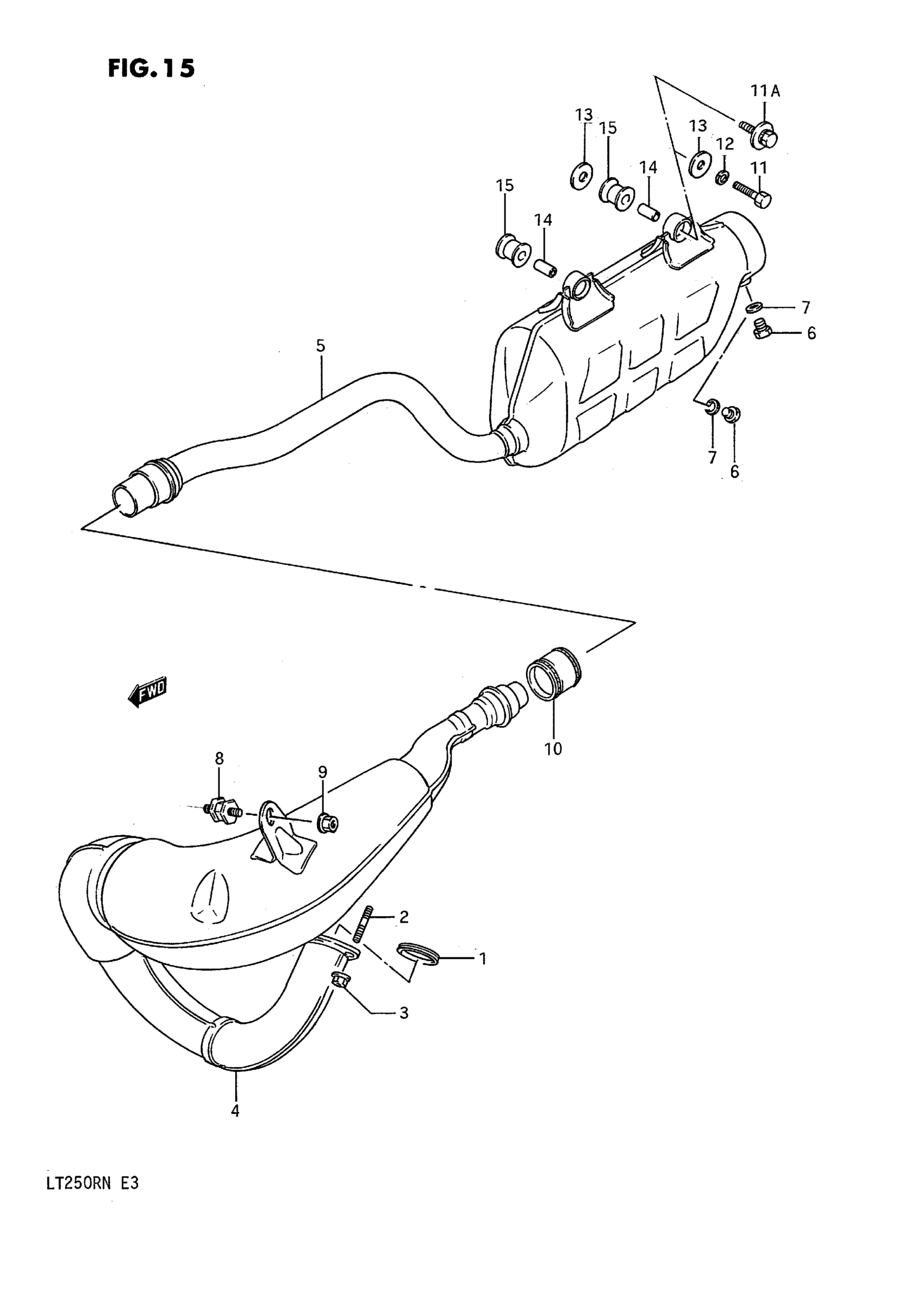

Suzuki LT250R (1992) MUFFLER (MODEL H/J/K/L/M/N) Diagram

#

Description
Price

1

GASKET This part replaces 14181-13A00.

14181-13A01

$7.60

2

BOLT,STUD This part replaces 01421-06165.

01421-0616A

$1.89

3

NUT This part replaces 08316-16064.

08316-1006B

$2.50

4

MUFFLER, 1ST | MODEL H This part replaces 14310-01C01.

14310-01C11

Unavailable

4

MUFFLER, 1ST | MODEL J/K/L This part replaces 14310-01C10.

14310-01C11

Unavailable

4

MUFFLER, 1ST | MODEL M/N

14310-01C11

Unavailable

5

MUFFLER, 2ND | MODEL H/J This part replaces 14330-01C01.

14330-01C10

Unavailable

5

MUFFLER, 2ND | MODEL K/L/M/N

14330-01C10

Unavailable

6

PLUG, DRAIN | MODEL H/J

09247-12104

$2.73

6

PLUG, DRAIN | MODEL K/L/M/N

09247-12103

$2.80

7

GASKET

09168-12002

$1.59

8

DAMPER MUFFLER This part replaces 14770-48700.

14770-48701

$13.82

9

NUT This part replaces 08316-16085.

08316-1008B

$2.65

10

CONNECTOR, MUFFLER

14771-01C10

Unavailable

11

BOLT | MODEL H/J This part replaces 01107-08358.

01500-0835B

$2.80

11A

BOLT | MODEL K/L/M/N

09118-08080

$3.30

12

.LOCK WASHER | MODEL H/J This part replaces 08321-21088.

08321-01087

$1.83

13

WASHER, EXHAUST SUPPORT | MODEL H/J This part replaces 09160-08002.

09160-08135

$2.10

13

WASHER, EXHAUST SUPPORT | MODEL K/L/M/N This part replaces 09160-08057.

09160-08135

$2.10

14

SPACER,8.5X12X1 This part replaces 09180-08133.

09180-08204

Unavailable

15

CUSHION

09320-12043

$7.20
