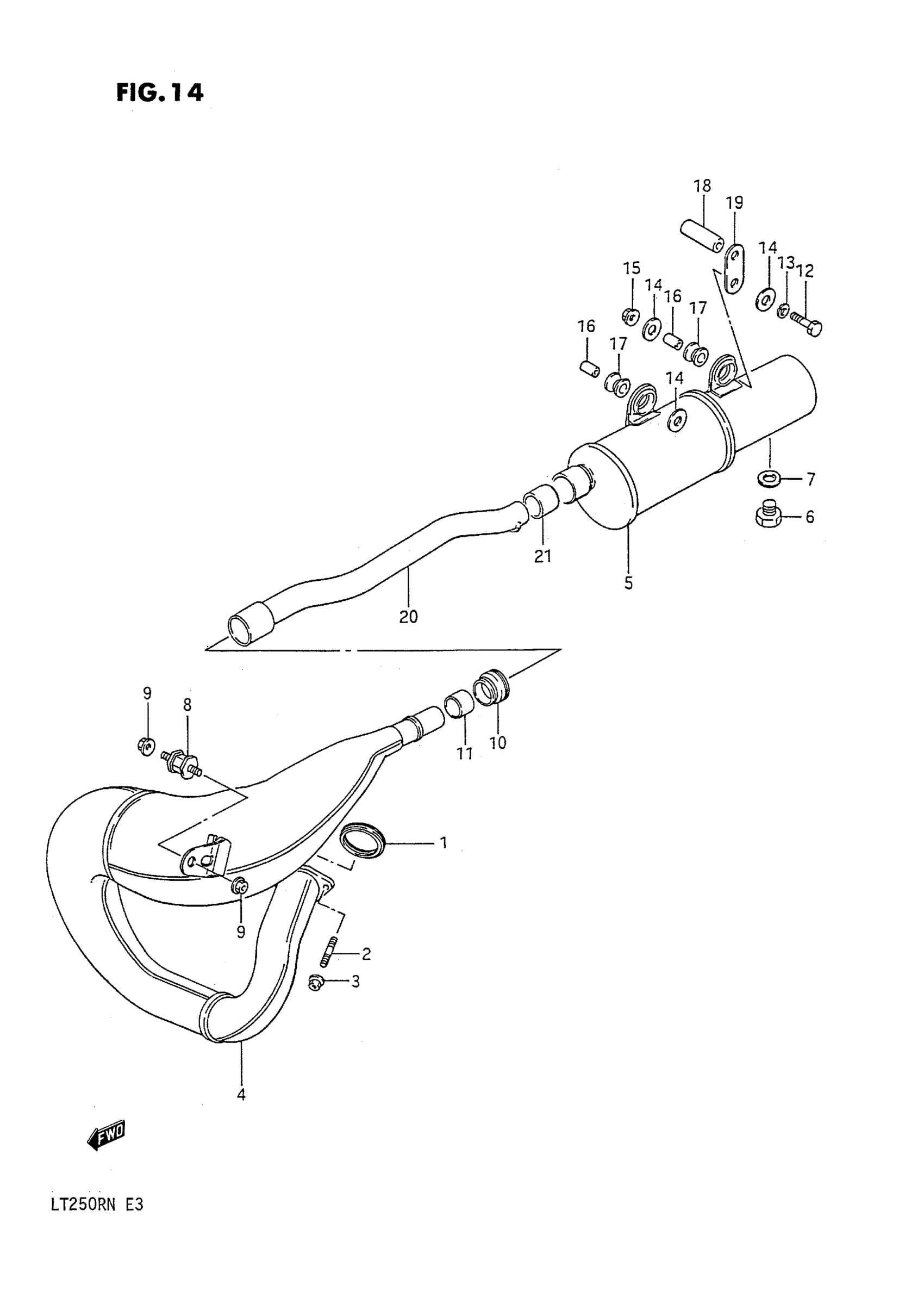

Suzuki LT250R (1992) MUFFLER (MODEL F/G) Diagram

#

Description
Price

1

GASKET This part replaces 14181-13A00.

14181-13A01

$8.07

2

BOLT,STUD This part replaces 01421-06165.

01421-0616A

$1.91

3

NUT This part replaces 08316-16064.

08316-1006B

$2.50

4

MUFFLER, 1ST | MODEL F

14310-19A02

Unavailable

4

MUFFLER, 1ST | MODEL G

14310-19A10

Unavailable

5

MUFFLER, 2ND

14330-19A07

Unavailable

6

PLUG, DRAIN

09247-12104

$2.73

7

GASKET

09168-12002

$1.59

8

DAMPER MUFFLER This part replaces 14770-48700.

14770-48701

$15.10

9

NUT This part replaces 08316-16085.

08316-1008B

$2.66

10

CONNECTOR, MUFFLER

14771-19A01

Unavailable

11

CONNECTOR, MUFFLER This part replaces 14771-14600.

14771-14601

Unavailable

12

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

13

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

14

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35

15

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

16

SPACER This part replaces 09180-08102.

09180-08194

$3.05

17

CUSHION

09320-12043

$7.98

18

SPACER (8.5X18X57)

09180-08128

Unavailable

19

STAY, 2ND MUFFLER

14419-19A03

Unavailable

20

PIPE, MUFFLER JOINT

14151-19A03

Unavailable

21

GASKET,2ND MUFL This part replaces 14773-19A00.

14773-19A00-H17

Unavailable
