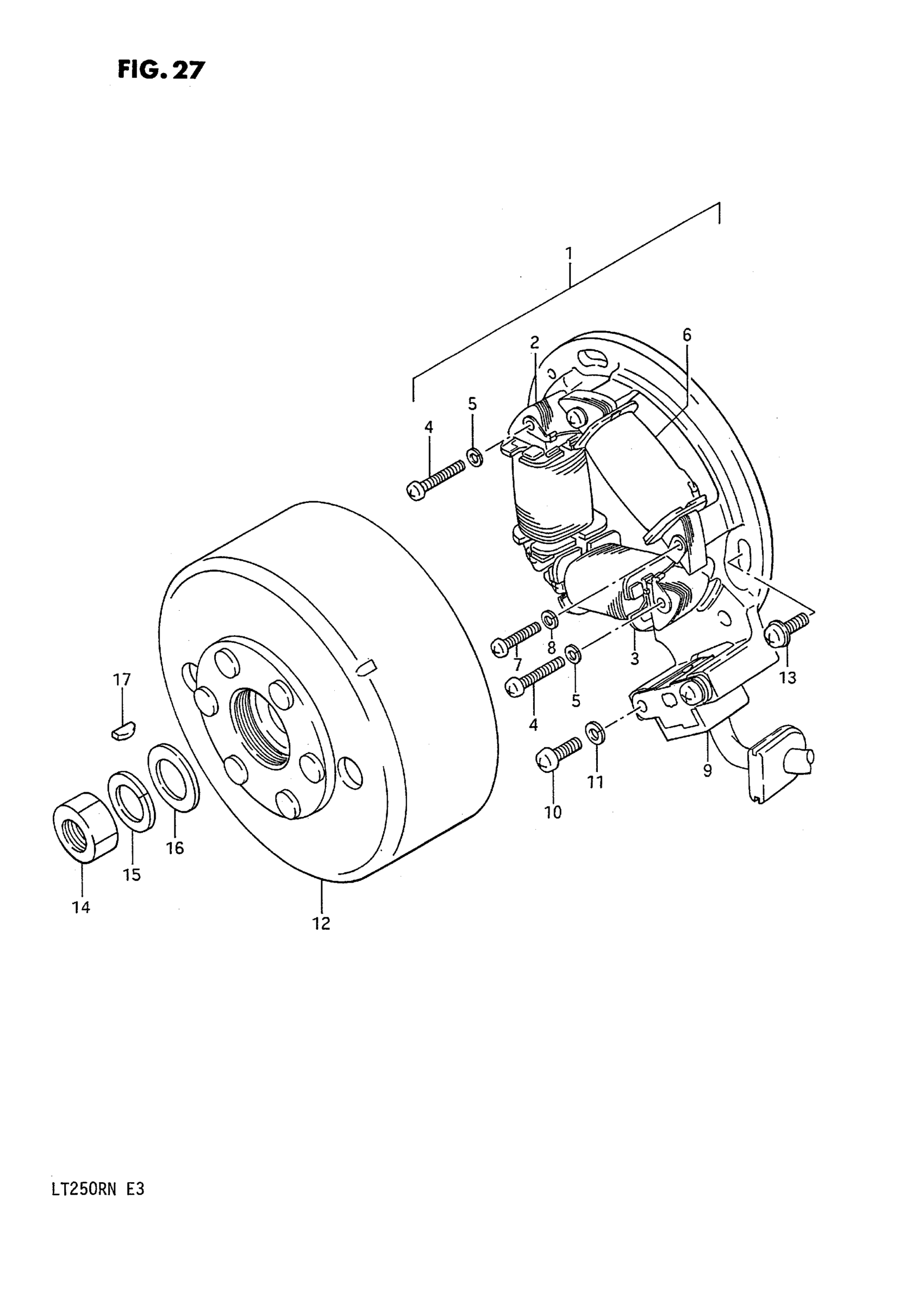

Suzuki LT250R (1992) MAGNETO (MODEL F/G) Diagram

#

Description
Price

1

STATOR ASS'Y | Includes Item(s) 2 - 11 This part replaces 32101-19A00.

32101-43B00

Unavailable

2

COIL, LIGHTING (A)

32120-19A00

Unavailable

3

COIL, LIGHTING (B)

32130-19A00

Unavailable

4

SCREW This part replaces 02112-04258.

02112-0425B

$2.37

5

LOCK WASHER This part replaces 08321-21047.

08321-0104A

$1.86

6

COIL, PRIMARY

32140-19A00

Unavailable

7

SCREW This part replaces 02112-04208.

02112-0420A

$1.30

8

LOCK WASHER This part replaces 08321-21047.

08321-0104A

$1.86

9

COIL,PICK UP This part replaces 32150-19A00.

32150-09D10

$203.20

10

SCREW This part replaces 02112-05128.

02112-05127

$1.97

11

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.83

12

ROTOR

32102-43B01

Unavailable

13

SCREW This part replaces 02142-05128.

02142-05127

$1.97

14

NUT, FIXED DRIVE FACE This part replaces 08310-12128.

09140-12039

$2.80

15

LOCK WASHER This part replaces 08321-21128.

08321-01127

$2.07

16

WASHER This part replaces 08322-11128.

08322-01127

$1.86

17

KEY

08341-31039

$1.89
