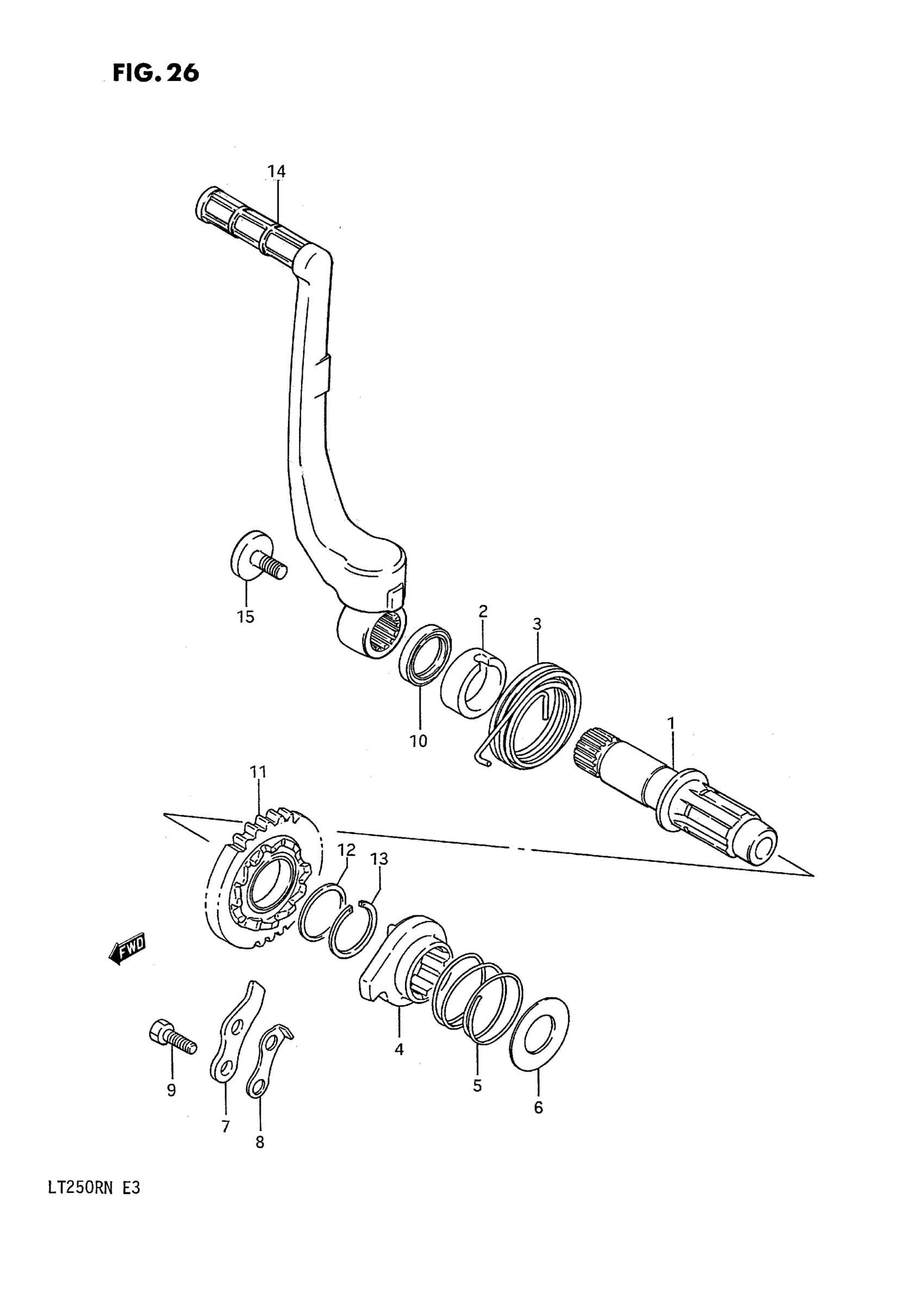

Suzuki LT250R (1992) KICK STARTER (MODEL H/J/K/L/M/N) Diagram

#

Description
Price

1

SHAFT, KICK STARTER | MODEL H/J/K/L This part replaces 26211-01B00.

26211-05D03

Unavailable

1

SHAFT, KICK STARTER | MODEL M/N This part replaces 26211-05D00.

26211-05D03

Unavailable

2

GUIDE, KICK STARTER This part replaces 26221-01B00.

26221-01B01

$4.35

3

SPRING, KICK STARTER SHAFT

09448-48010

Unavailable

4

STARTER, KICK

26231-22A10

$63.88

5

SPRING

09440-32002

$2.27

6

PLATE

08211-17341

$2.50

7

GUIDE, KICK STARTER

26232-40200

$7.08

8

STOPPER, KICK STARTER This part replaces 26233-40200.

26233-40201

$5.52

9

BOLT This part replaces 01107-06127.

01500-06127

$1.97

10

OIL SEAL

09283-20031

$5.24

11

GEAR, KICK DRIVE (NT:27)

26240-13A00

Unavailable

12

WASHER (22X28X1.0) This part replaces 08211-22281.

09181-22139

$3.48

13

CIRCLIP

09380-22006

$3.10

14

LEVER, KICK STARTER | MODEL H/J/K/L This part replaces 26300-01C00.

26300-01C01

Unavailable

14

LEVER, KICK STARTER | MODEL M/N

26300-01C01

Unavailable

15

BOLT (8X14) This part replaces 09106-08050.

09106-08102

$4.64
