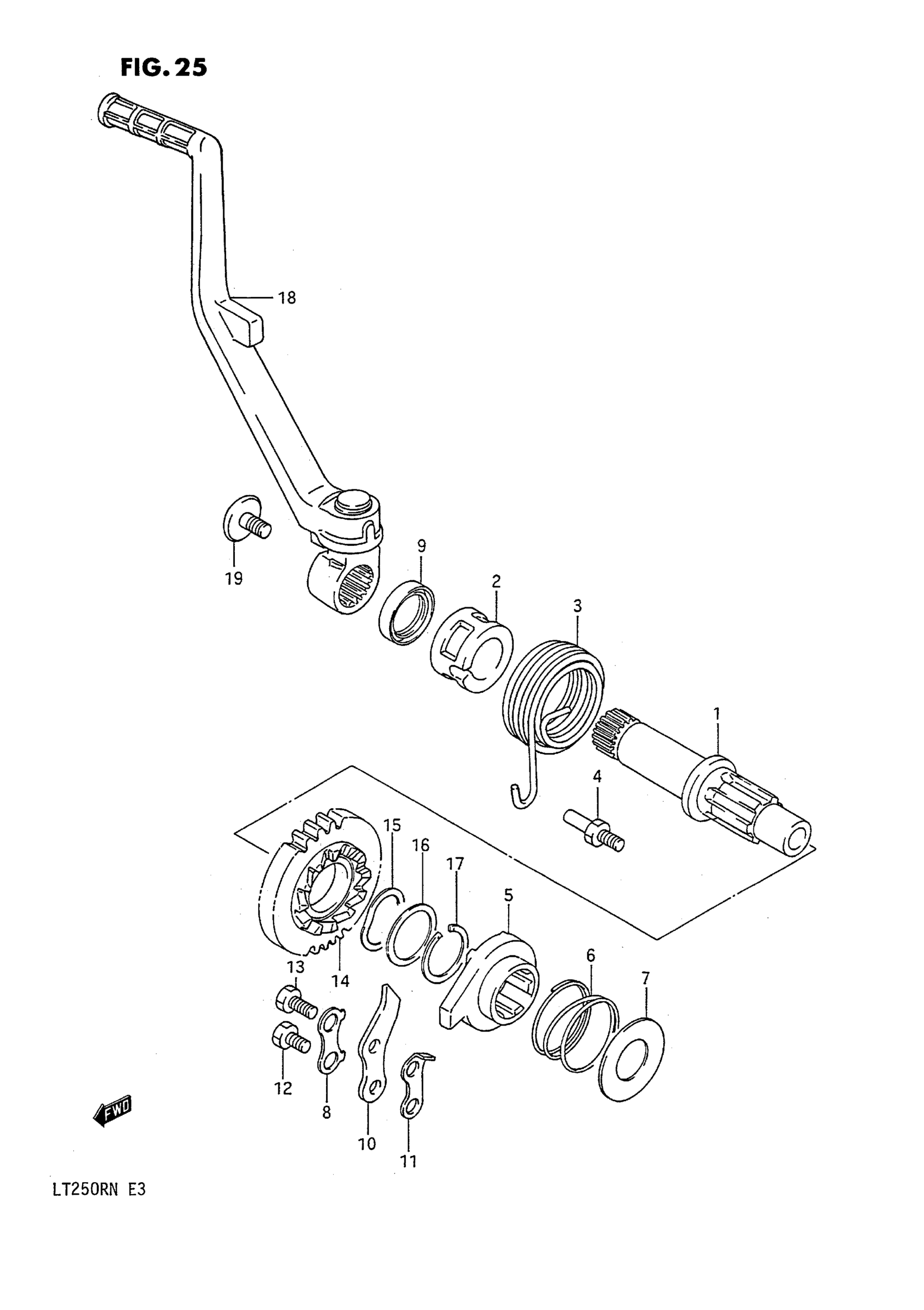

Suzuki LT250R (1992) KICK STARTER (MODEL F/G) Diagram

#

Description
Price

1

SHAFT, KICK STARTER

26211-08D00

Unavailable

2

GUIDE, KICK STARTER

26221-13A01

Unavailable

3

SPRING

09448-48006

Unavailable

4

BOLT, KICK SHAFT SPRING

26237-20400

$6.38

5

STARTER, KICK

26231-22A10

$63.88

6

SPRING

09440-32002

$2.27

7

PLATE

08211-17342

$2.72

8

WASHER

09169-06003

$1.78

9

OIL SEAL (20X27X5)

09283-20031

$5.24

10

GUIDE, KICK STARTER

26232-13A00

Unavailable

11

STOPPER, KICK STARTER This part replaces 26233-40200.

26233-40201

$5.52

12

BOLT This part replaces 01107-06107.

01500-06107

$2.06

13

BOLT This part replaces 01107-06127.

01500-06127

$1.97

14

GEAR, DRIVE (NT:27)

26240-13A00

Unavailable

15

WAVE WASHER

09164-22003

Unavailable

16

NO DESCRIPTION AVAILABLE This part replaces 08221-22286.

09181-22134

Unavailable

17

CIRCLIP

09380-22006

$3.10

18

LEVER ASSY, KICK STARTER

26300-19A01

Unavailable

19

BOLT (8X14) This part replaces 09106-08050.

09106-08102

$4.64
