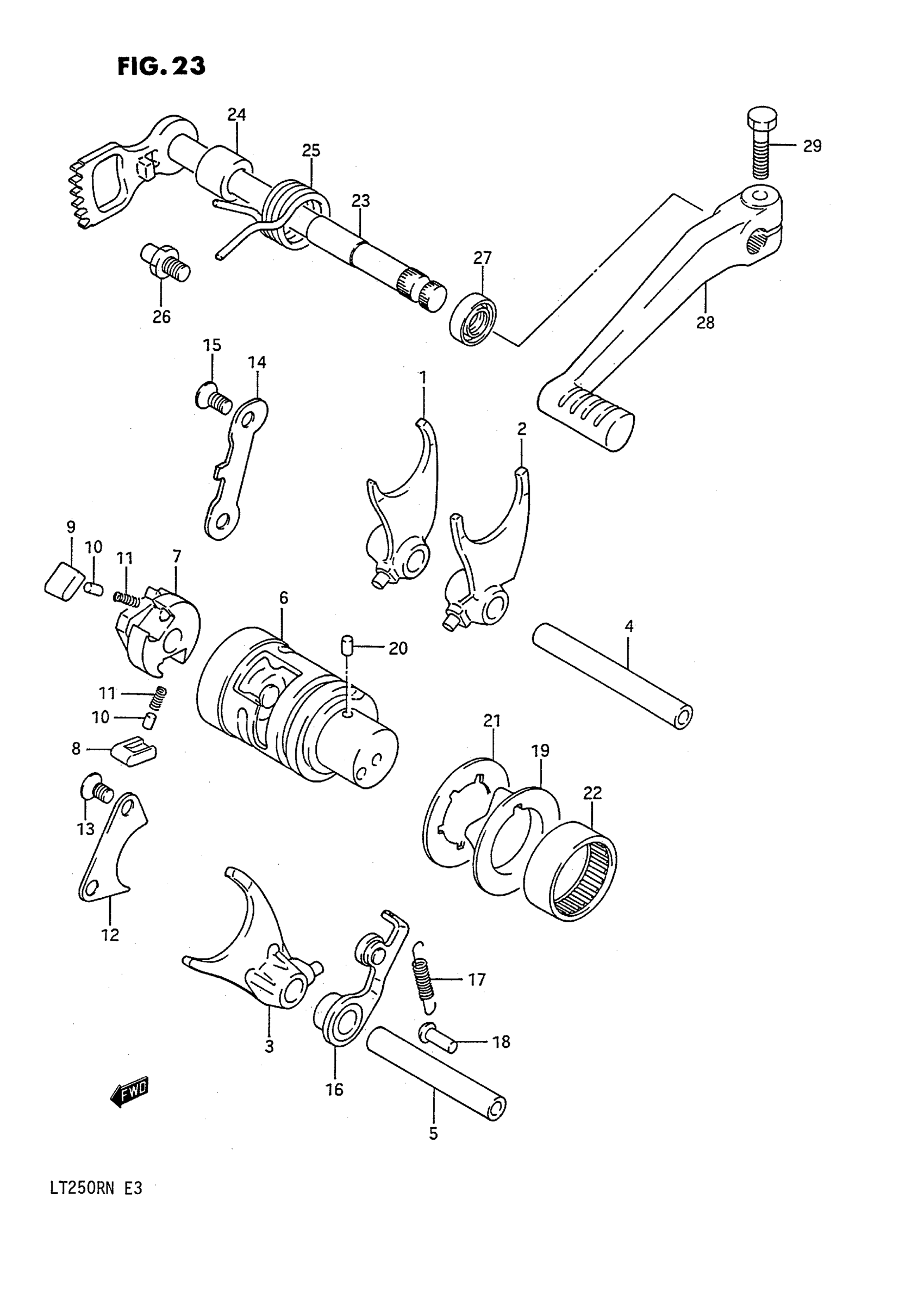

Suzuki LT250R (1992) GEAR SHIFTING (MODEL F/G) Diagram

#

Description
Price

1

FORK, NO.1

25211-13A00

Unavailable

2

FORK, NO.2

25221-13A00

Unavailable

3

FORK, NO.3

25231-13A02

Unavailable

4

SHAFT, NO.2 This part replaces 25411-14330.

25411-14331

$23.07

5

SHAFT, FORK (L:70)

25421-14330

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 25310-13A00.

25310-13A01

Unavailable

7

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-31301.

25322-31310

$26.93

8

PAWL, GEAR SHIFT NO.1

25323-34201

$7.22

9

PAWL, GEAR SHIFT NO.2

25324-34201

$7.22

10

ROLLER

09261-05003

$1.54

11

SPRING

09440-04003

$1.54

12

LIFTER, PAWL

25331-16500

Unavailable

13

SCREW This part replaces 02122-06128.

02122-06127

$1.84

14

STOPPER

25341-13A00

Unavailable

15

SCREW This part replaces 02122-06128.

02122-06127

$1.84

16

STOPPER, CAM

25350-14311

Unavailable

17

SPRING

09443-06062

Unavailable

18

PIN This part replaces 09220-04001.

09223-04001

$1.68

19

PLATE

25381-04700

Unavailable

20

PIN (4X13.8)

04221-04089

$1.49

21

WASHER

09167-30007

$2.53

22

BEARING (25X32X12)

09263-25018

$21.39

23

SHAFT

25510-13A03

Unavailable

24

SPACER (12X20X15.3)

09180-12083

$2.45

25

SPRING

09444-26004

$4.45

26

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

27

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

28

LEVER ASSY

25611-19A01

Unavailable

29

BOLT This part replaces 01517-06257.

01550-06257

$2.30
