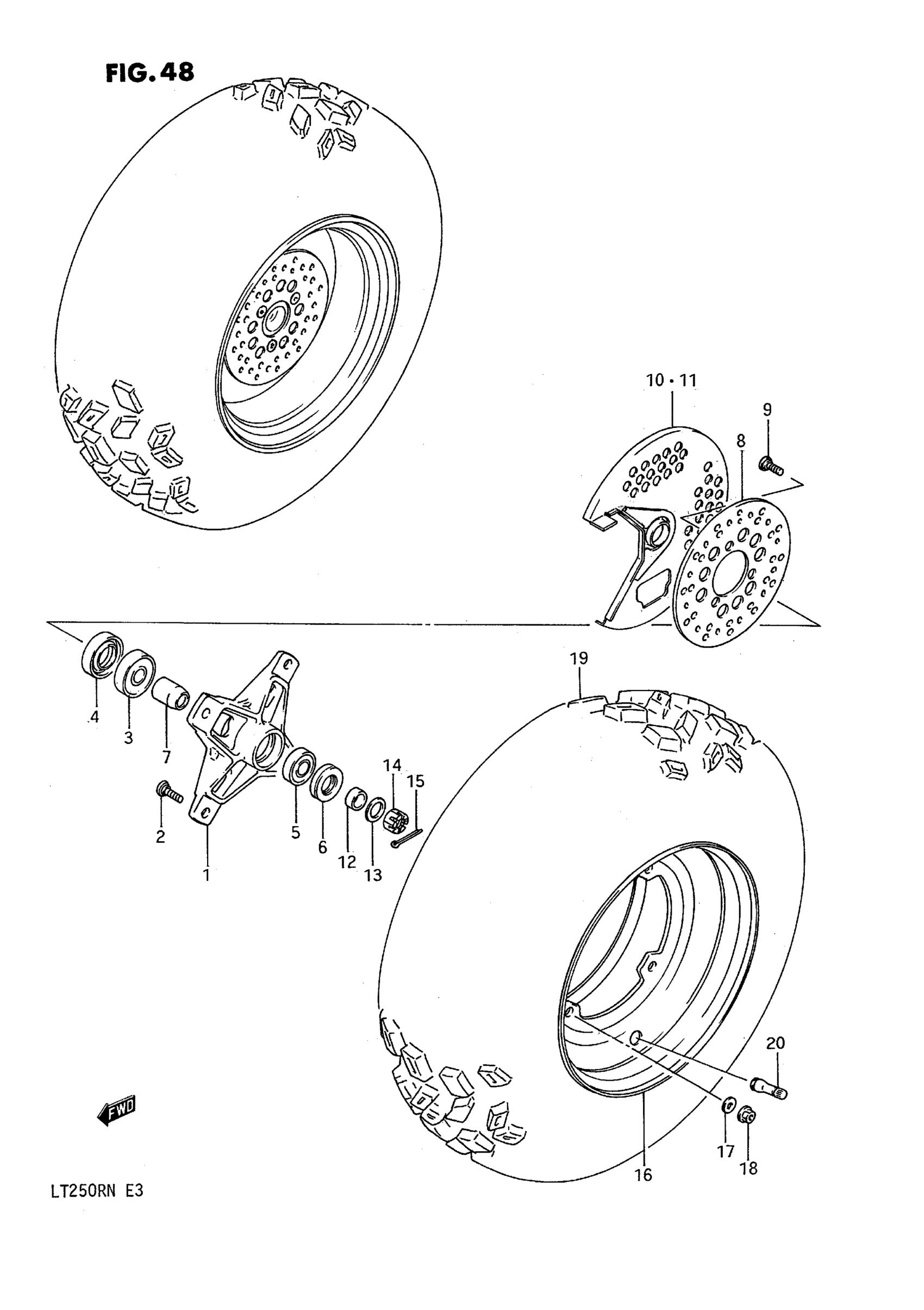

Suzuki LT250R (1992) FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT (WHITE) | MODEL F

54111-19A01

Unavailable

1

HUB, FRONT (WHITE) | MODEL G This part replaces 54111-19A11-19T.

54111-19A01

Unavailable

1

HUB, FRONT (BLUE) | MODEL H/J/K/L/M/N

54111-19A11-19F

Unavailable

2

BOLT, FRONT HUB | MODEL F/G

09119-08068

Unavailable

2

BOLT, FRONT HUB | MODEL H/J/K/L/M/N

09119-08070

Unavailable

3

BEARING This part replaces 08120-60047.

08120-6004B

$16.23

4

DUST SEAL, INNER

09284-26002

$10.92

5

BEARING, FRONT HUB OUTER This part replaces 08120-62027.

09262-15024

$24.83

6

DUST SEAL, OUTER

09284-21001

$12.79

7

SPACER, FRONT HUB

54731-19A00

Unavailable

8

DISC, FRONT BRAKE

59211-19A01

Unavailable

9

BOLT This part replaces 59421-03A01.

09106-08155

$3.76

10

COVER, FRONT DISK RH | MODEL F/G This part replaces 59230-19A00.

59230-01C00

Unavailable

10

COVER, FRONT DISK RH | MODEL H/J/K/L/M/N

59230-01C00

Unavailable

11

COVER, FRONT DISK LH | MODEL F/G This part replaces 59430-19A00.

59430-01C00

Unavailable

11

COVER, FRONT DISK LH | MODEL H/J/K/L/M/N

59430-01C00

Unavailable

12

SPACER, FRONT AXLE

09180-15068

$4.90

13

WASHER | MODEL F/G This part replaces 08322-11146.

08322-0114A

$1.84

13

WASHER | MODEL H/J/K/L/M/N This part replaces 08322-11148.

08322-01147

$1.91

14

NUT, HUB | MODEL F/G This part replaces 08314-41146.

08314-4014B

$4.24

14

NUT, HUB | MODEL H/J/K/L/M/N This part replaces 08314-41148.

08314-4014B

$4.24

15

PIN This part replaces 04111-30308.

04111-3030A

$1.49

16

RIM, FRONT WHEEL | MODEL F/G

55310-19A02

Unavailable

16

RIM, FRONT WHEEL | MODEL H/J/K/L/M/N

55310-43B00

Unavailable

17

WASHER | MODEL F/G This part replaces 08322-21086.

08322-0108A

$1.92

17

WASHER | MODEL H/J/K/L/M/N This part replaces 08322-21088.

08322-01087

$2.13

18

NUT (CHROME) | MODEL F/G This part replaces 08316-16086.

08316-10087

$2.26

18

NUT (CHROME) | MODEL H/J/K/L/M/N This part replaces 08316-16088.

08316-10087

$2.26

19

TIRE, T/L FRONT (21X7.00-10) DUNLOP | MODEL F/G

55100-19A55

Unavailable

19

TIRE, FRONT (AT21X7-10) DUNLOP | MODEL H/J This part replaces 55100-01C30.

55100-01C51

Unavailable

19

TIRE, FRONT (AT21X7-10) DUNLOP | MODEL H/J/K This part replaces 55100-01C50.

55100-01C51

Unavailable

19

TIRE, FRONT (AT21X7-10) DUNLOP | MODEL L/M/N

55100-01C51

Unavailable

20

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

$9.25
