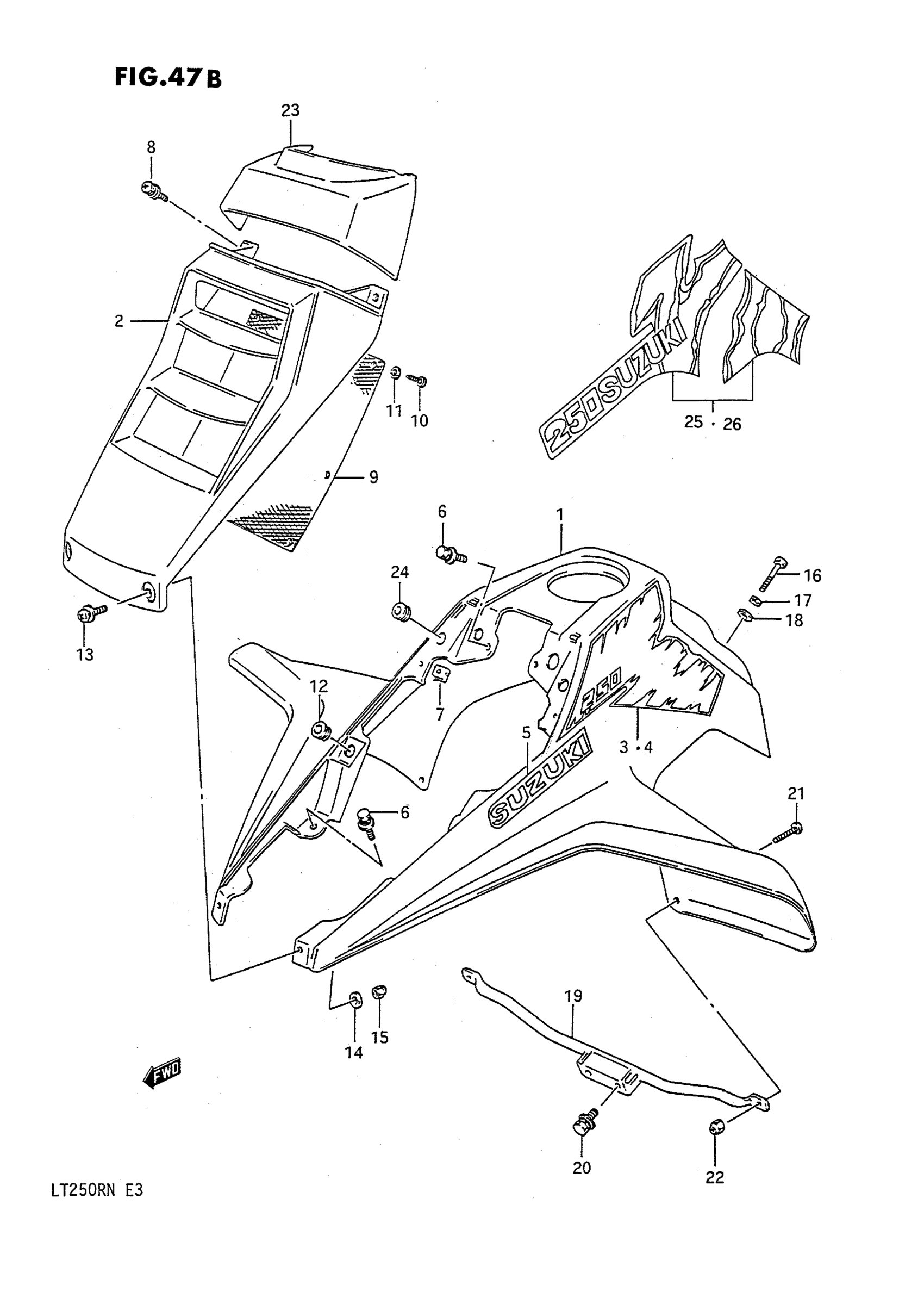

Suzuki LT250R (1992) FRONT FENDER (MODEL M/N) Diagram

#

Description
Price

1

FENDER, FRONT (YELLOW)

53111-19A00-25Y

Unavailable

2

FENDER, CENTER (BLUE)

53118-19A00-19F

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 68155-01C00-1DU.

68155-01C01-1DU

Unavailable

4

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 68156-01C00-1DU.

68156-01C01-1DU

Unavailable

5

EMBLEM, FRONT FENDER | MODEL M

68111-01C20-9SG

Unavailable

6

BOLT, FRONT FENDER

09118-06017

$2.12

7

NUT

53141-19A00

$4.34

8

SCREW, FENDER CENTER

09138-06026

$2.47

9

EXPAND, METAL LATCH

53151-19A00

Unavailable

10

SCREW This part replaces 03212-04107.

03211-0410B

$1.93

11

WASHER (4.5X16X1.2) This part replaces 09160-04008.

09160-04026

$2.05

12

CUSHION

09320-08018

$3.04

13

SCREW, CENTER FENDER FRONT

09136-06081

$2.26

14

WASHER This part replaces 09160-06006.

09160-06084

$1.78

15

.NUT This part replaces 08319-21066.

08319-2106A

$1.91

16

BOLT | MODEL M This part replaces 01107-06358.

64455-07L00

$1.59

16

BOLT, FENDER REAR | MODEL N This part replaces 01174-06358.

01580-06357

$4.00

17

LOCK WASHER | MODEL M This part replaces 08321-21067.

08321-01067

$2.13

18

WASHER | MODEL M This part replaces 08322-21067.

08322-01067

$2.13

19

BRACE, FRONT FENDER

53210-01C00

Unavailable

20

BOLT, FRONT FENDER, FRONT This part replaces 09118-08001.

09118-08128

Unavailable

21

SCREW This part replaces 09136-06062.

09136-06017

$2.59

22

.NUT This part replaces 08319-21066.

08319-2106A

$1.91

23

COVER, RADIATOR CAP (BLUE)

53119-19A00-19F

Unavailable

24

CUSHION

09320-08018

$3.04

25

TAPE, FENDER RH | MODEL N

68155-01C10-L98

Unavailable

26

TAPE, FENDER LH | MODEL N

68156-01C10-L98

Unavailable
