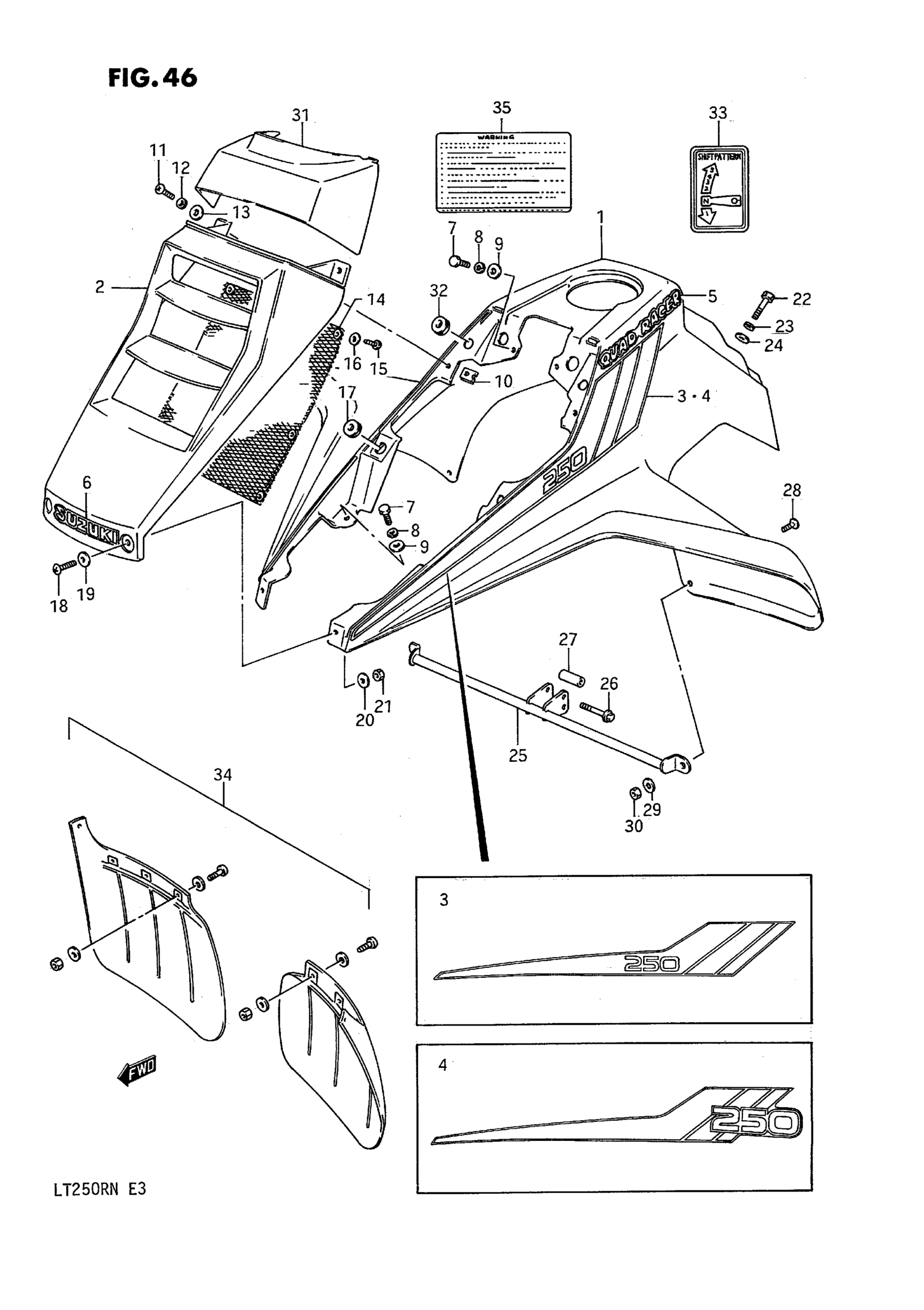

Suzuki LT250R (1992) FRONT FENDER (MODEL F/G) Diagram

#

Description
Price

1

FENDER, FRONT (YELLOW) This part replaces 53111-19A00-163.

53111-19A00-25Y

Unavailable

2

FENDER, CENTER (BLACK)

53118-19A00-291

Unavailable

3

TAPE SET | MODEL F This part replaces 68150-19A00-74H.

68150-19A10-74H

Unavailable

4

TAPE SET | MODEL G

68150-19A10-74H

Unavailable

5

EMBLEM, FENDER NAME

68233-19A00-97J

Unavailable

6

EMBLEM This part replaces 68111-19A00-64D.

68111-43500-94L

Unavailable

7

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

$1.97

8

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

9

WASHER This part replaces 09160-06006.

09160-06084

$1.78

10

NUT

53141-19A00

$4.34

11

SCREW This part replaces 02112-06166.

02112-0616A

$1.49

12

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

13

WASHER This part replaces 09160-06006.

09160-06084

$1.78

14

EXPAND, METAL LATCH

53151-19A00

Unavailable

15

SCREW This part replaces 03212-04107.

03211-0410B

$1.93

16

WASHER (4.5X16X1.2) This part replaces 09160-04008.

09160-04026

$2.05

17

CUSHION

09320-08018

$3.04

18

SCREW This part replaces 02142-06164.

02142-0616A

$1.49

19

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.49

20

WASHER This part replaces 09160-06006.

09160-06084

$1.78

21

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

22

BOLT This part replaces 01107-06356.

01500-0635A

$2.19

23

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

24

.WASHER This part replaces 08322-21066.

08322-0106B

$2.26

25

BRACE, FRONT FENDER

53210-19A00

Unavailable

26

BOLT This part replaces 01517-06354.

01550-0635A

$2.32

27

NO DESCRIPTION AVAILABLE This part replaces 09180-06147.

09180-06147-XC0

Unavailable

28

SCREW This part replaces 02142-06164.

02142-0616A

$1.49

29

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.49

30

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

31

COVER, RADIATOR CAP (BLACK)

53119-19A00-291

Unavailable

32

CUSHION

09320-08018

$3.04

33

LABEL, GEAR SHIFT

68392-22A00

Unavailable

34

MUD FLAP SET | OPT

53300-24810

Unavailable

35

LABEL, WARNING | MODEL F

68366-19A01

Unavailable

35

LABEL, WARNING | MODEL G

68366-19A10-64D

Unavailable
