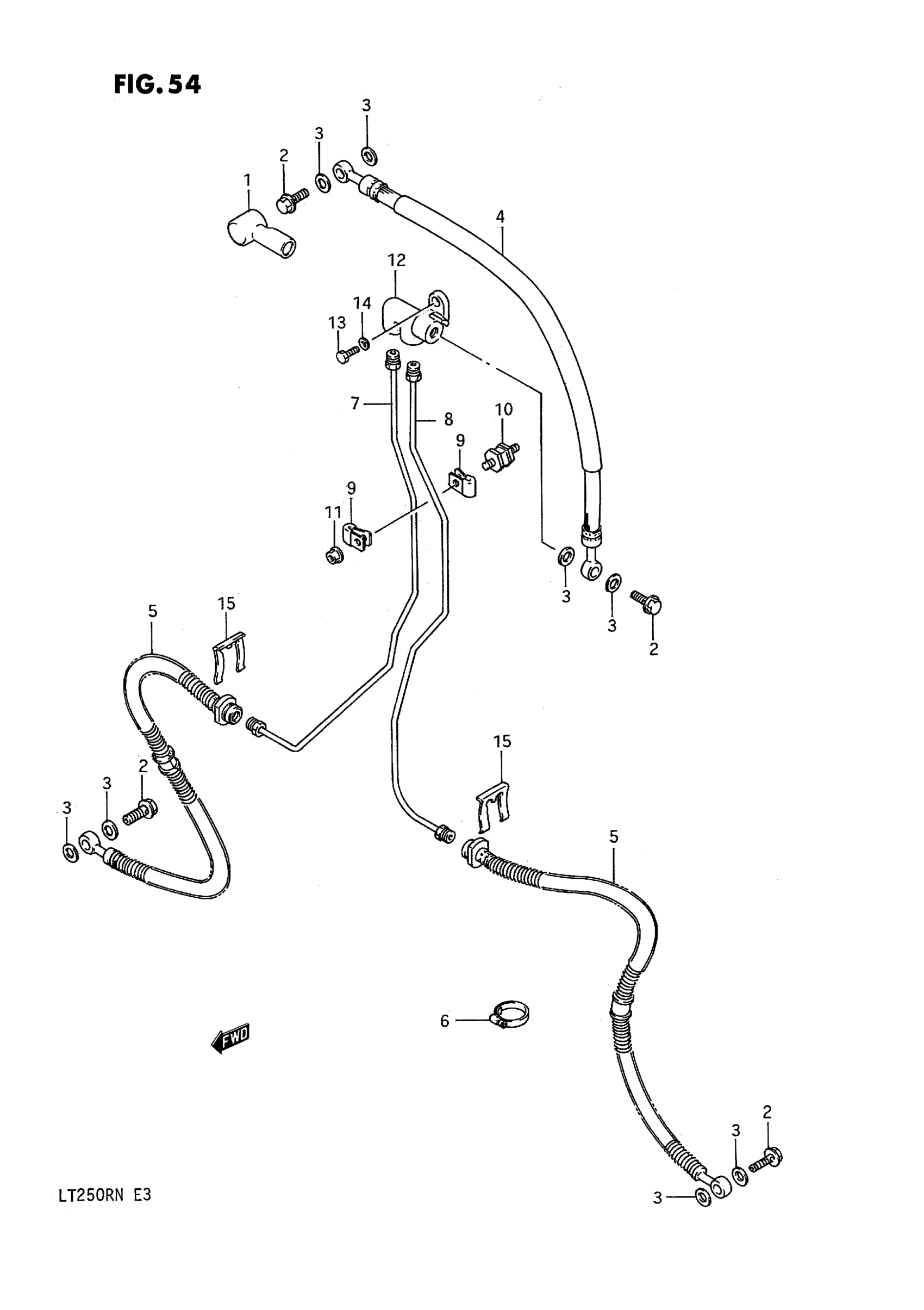

Suzuki LT250R (1992) FRONT BRAKE HOSE Diagram

#

Description
Price

1

BOOT,MASTER CYL This part replaces 59711-04700.

59711-04701

$20.62

2

BOLT

09360-10017

$3.42

3

WASHER (10X15X1.5)

09161-10009

$1.84

4

HOSE, FRONT BRAKE NO.1 (L:445) | MODEL F/G

59480-19A02

Unavailable

4

HOSE, FRONT BRAKE NO.1 (L:465) | MODEL H/J/K/L/M/N

59480-01C01

Unavailable

5

HOSE, FRONT BRAKE NO.2 (L:460) | MODEL F/G

59240-19A01

Unavailable

5

HOSE, FRONT BRAKE NO.2 (L:480) | MODEL H/J/K/L/M/N

59240-01C01

Unavailable

6

CLAMP | MODEL F/G/H/J This part replaces 09402-25502.

09402-28511

$6.88

6

CLAMP | MODEL K/L/M/N This part replaces 09402-30502.

09402-32511

$10.86

7

PIPE, BRAKE RH

59250-19A02

Unavailable

8

PIPE, BRAKE LH

59450-19A02

Unavailable

9

CLAMP

09403-06401

$2.83

10

BOLT RADIATOR C This part replaces 17788-13612.

17788-13613

$12.42

11

NUT This part replaces 09159-06017.

08319-31067

$2.03

12

JOINT, THREE WAY This part replaces 59490-19A00.

59491-19A10

$53.33

13

BOLT | MODEL F/G/H/J/K/L This part replaces 01107-06166.

01500-0616A

$1.78

13

BOLT | MODEL M/N This part replaces 01134-06166.

01570-0616A

$2.23

14

LOCK WASHER | MODEL F/G/H/J/K/L This part replaces 08321-21066.

08321-0106A

$1.84

15

E RING This part replaces 09383-13001.

09383-13003

$2.30
