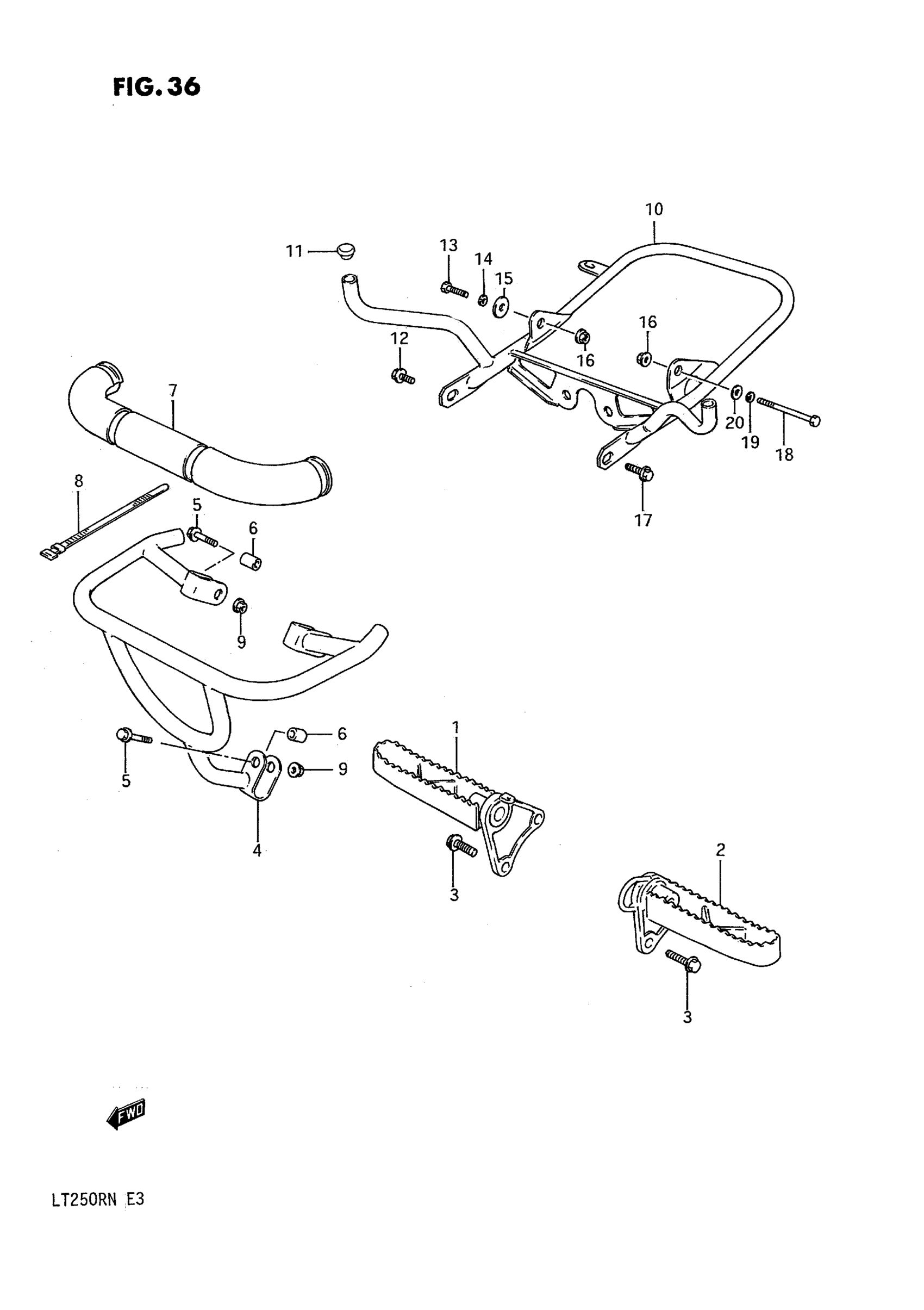

Suzuki LT250R (1992) FOOTREST (MODEL F/G) Diagram

#

Description
Price

1

BAR, FRONT FOOTREST RH (BLUE)

43510-19A00-19F

Unavailable

2

BAR, FRONT FOOTREST LH (BLUE)

43520-19A00-19F

Unavailable

3

BOLT

09103-10037

Unavailable

4

GRIP, FRONT

43990-19A00

Unavailable

5

BOLT This part replaces 01517-08455.

01550-0845A

$3.14

6

SPACER (8.2X12.5X23.5) This part replaces 09180-08129.

09180-08227

$2.06

7

PAD This part replaces 43998-19A00.

43998-19A10

Unavailable

8

CLAMP

09407-18401

$2.07

9

NUT This part replaces 08319-31085.

08319-3108A

$2.32

10

GRIP, REAR | MODEL F This part replaces 43980-19A01.

43980-19A02

Unavailable

10

GRIP, REAR | MODEL G

43980-19A02

Unavailable

11

PLUG (OD:19) | MODEL F This part replaces 09250-15007.

09250-15010

$2.08

11

CAP (OD:20) | MODEL G This part replaces 09250-12006.

09250-12016

$1.92

12

BOLT M8X16 This part replaces 01517-08167.

01550-08167

$2.85

13

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

14

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

15

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35

16

NUT

08319-31087

$2.32

17

BOLT, REAR LH This part replaces 01517-08207.

01550-08207

$2.69

18

BOLT This part replaces 01107-08808.

01500-0880B

$3.49

19

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

20

WASHER This part replaces 08322-11088.

08322-01087

$2.13
