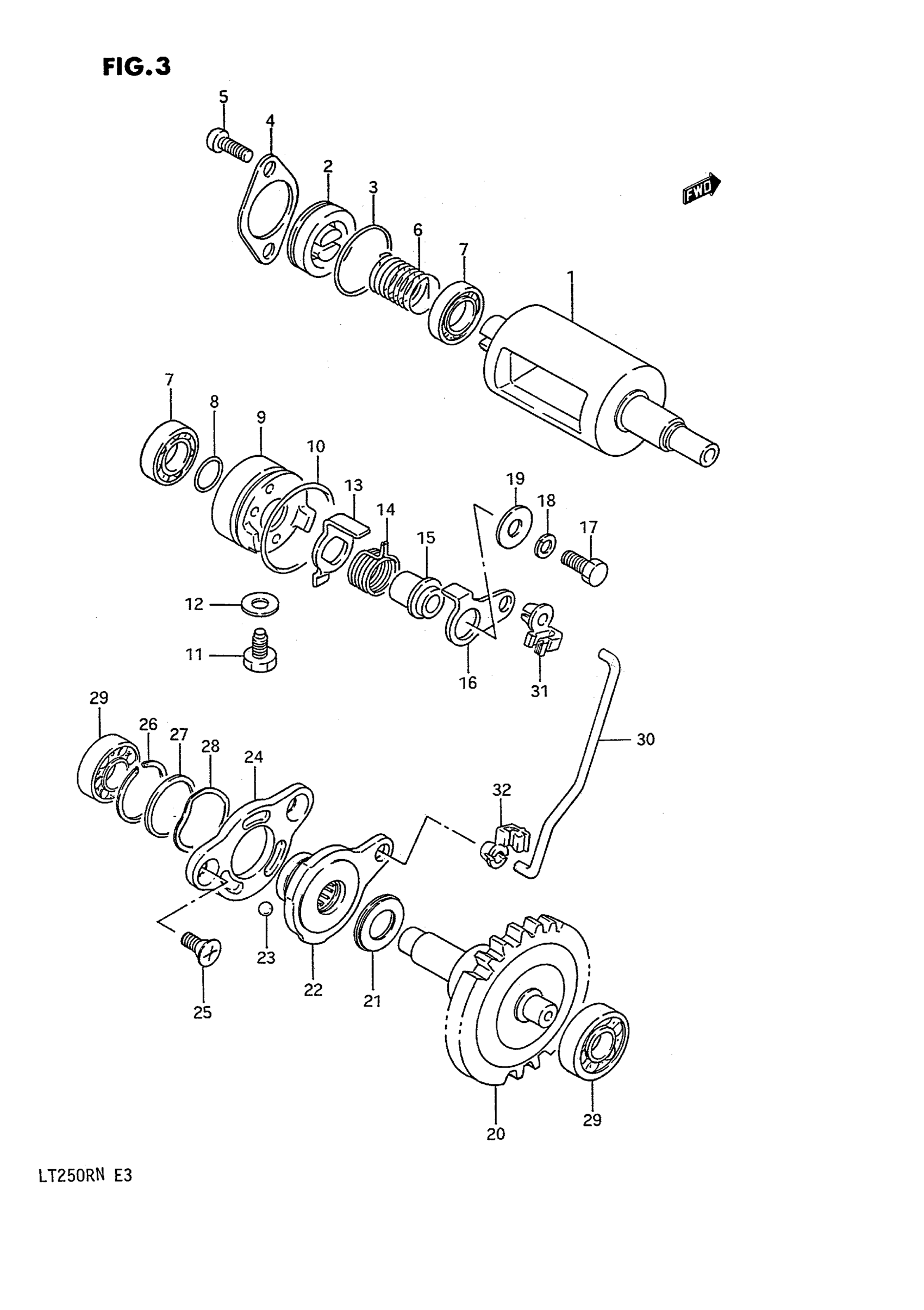

Suzuki LT250R (1992) EXHAUST VALVE (MODEL H/J/K/L/M/N) Diagram

#

Description
Price

1

VALVE, EXHAUST

11256-01C00

Unavailable

2

CAP, EXHAUST VALVE This part replaces 11258-01B00.

11258-27C01

Unavailable

3

O RING(D:1.9,ID This part replaces 09280-23002.

09280-23003

$1.80

4

RETAINER, EXHAUST VALVE

11265-01B00

Unavailable

5

SCREW This part replaces 02112-05128.

02112-05127

$1.97

6

SPRING, EXHAUST VALVE | MODEL H/J/K/L

09444-15006

Unavailable

6

SPRING, EXHAUST VALVE | MODEL M/N

09444-15011

Unavailable

7

BEARING

08110-68010

$33.24

8

O RING | MODEL H/J/K/L

09280-12012

$4.64

8

O RING | MODEL M/N This part replaces 11143-27A51.

11143-06B00

$6.28

9

HOLDER, EXHAUST VALVE

11263-00B00

Unavailable

10

O RING

09280-28005

$2.43

11

BOLT (6X10) This part replaces 09135-06002.

09135-06501

$3.04

12

GASKET

09168-06004

$1.49

13

LEVER, EXHAUST VALVE NO.2

11267-00B00

Unavailable

14

SPRING

09444-15004

Unavailable

15

SPACER This part replaces 11268-01B00.

11268-01B01

$8.65

16

LEVER, EXHAUST VALVE NO.1

11266-01B00

Unavailable

17

BOLT This part replaces 01104-05126.

01500-0512B

$2.10

18

LOCK WASHER This part replaces 08321-21056.

08321-0105A

$1.84

19

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

20

GOVERNOR ASSY, EXHAUST VALVE

12670-01C00

Unavailable

21

BEARING

09263-10002

$10.19

22

ACTUATOR, EXHAUST VALVE

12680-01820

Unavailable

23

BALL

06111-06003

$1.49

24

STATOR, ACTUATOR

12682-00B02

Unavailable

25

SCREW (5X10)

09120-05003

$1.91

26

CIRCLIP

09380-19003

$2.15

27

SHIM

09181-19004

$3.78

28

LOCK WASHER

09164-19001

$4.69

29

BEARING

09262-08005

$12.67

30

ROD, EXHAUST VALVE

12685-01C00

Unavailable

31

BUSH, NO.1

12686-01B00

$1.65

32

BUSH, NO.2

12687-01B00

$1.65
