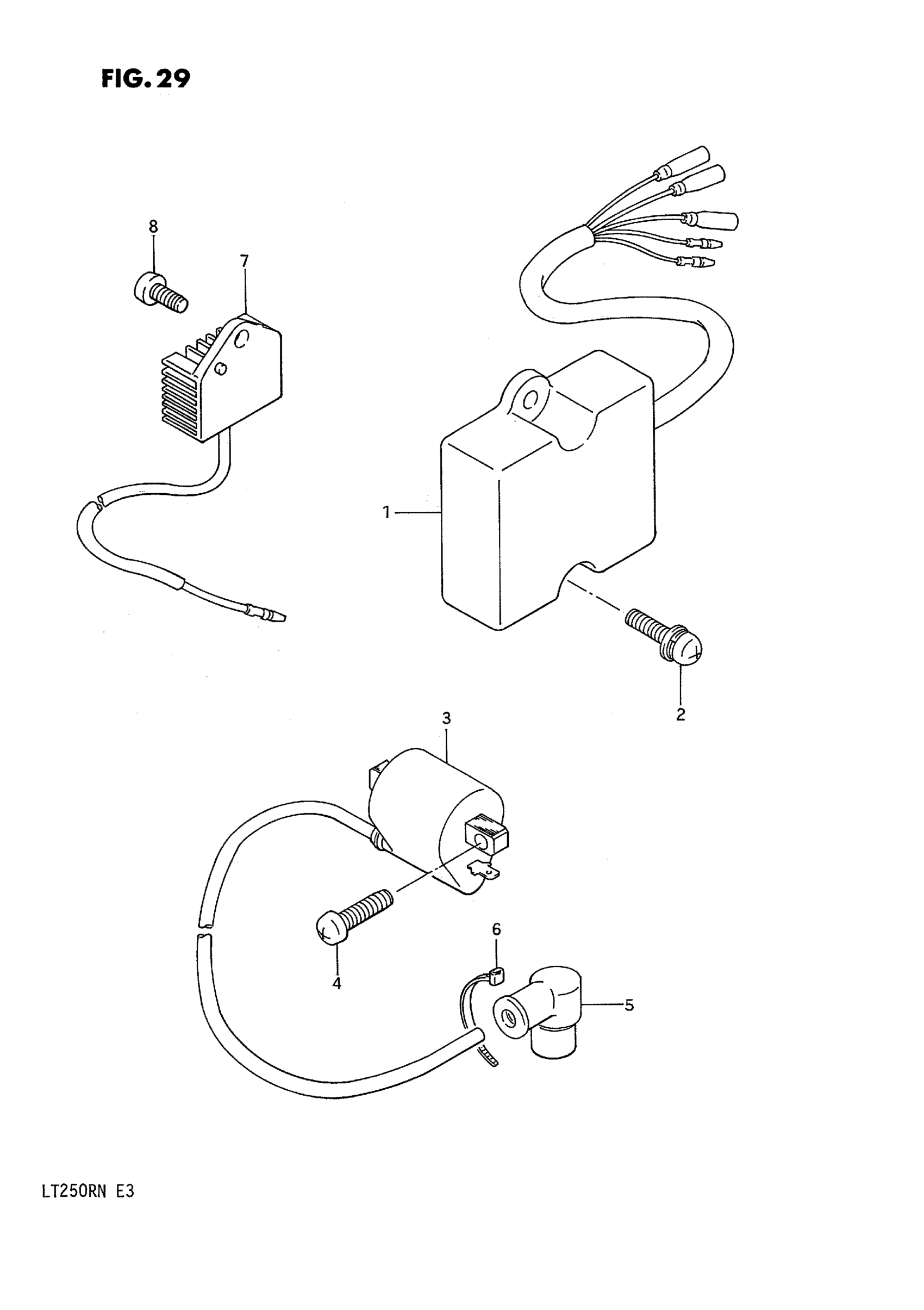

Suzuki LT250R (1992) ELECTRICAL Diagram

#

Description

Price

1

C.D.I UNIT ASSY | MODEL F/G

32900-19A10

Unavailable

1

C.D.I UNIT ASSY | MODEL H/J/K/L/M/N

32900-01C00

Unavailable

2

SCREW This part replaces 02112-76166.

02112-7616A

$2.12

3

COIL ASSY,IGNIT | MODEL H/J/K/L/M This part replaces 33410-09410.

33410-09412

Unavailable

3

COIL ASSY,IGNIT | MODEL N This part replaces 33410-09411.

33410-09412

Unavailable

4

SCREW This part replaces 02112-06166.

02112-0616A

$1.49

5

CAP, SPARK PLUG This part replaces 33510-41111.

33510-20A02

$24.39

6

BELT

09407-09402

$2.45

7

REGULATOR ASSY, VOLTAGE

32500-19A00

Unavailable

8

SCREW This part replaces 02112-06126.

02112-0612A

$1.49
