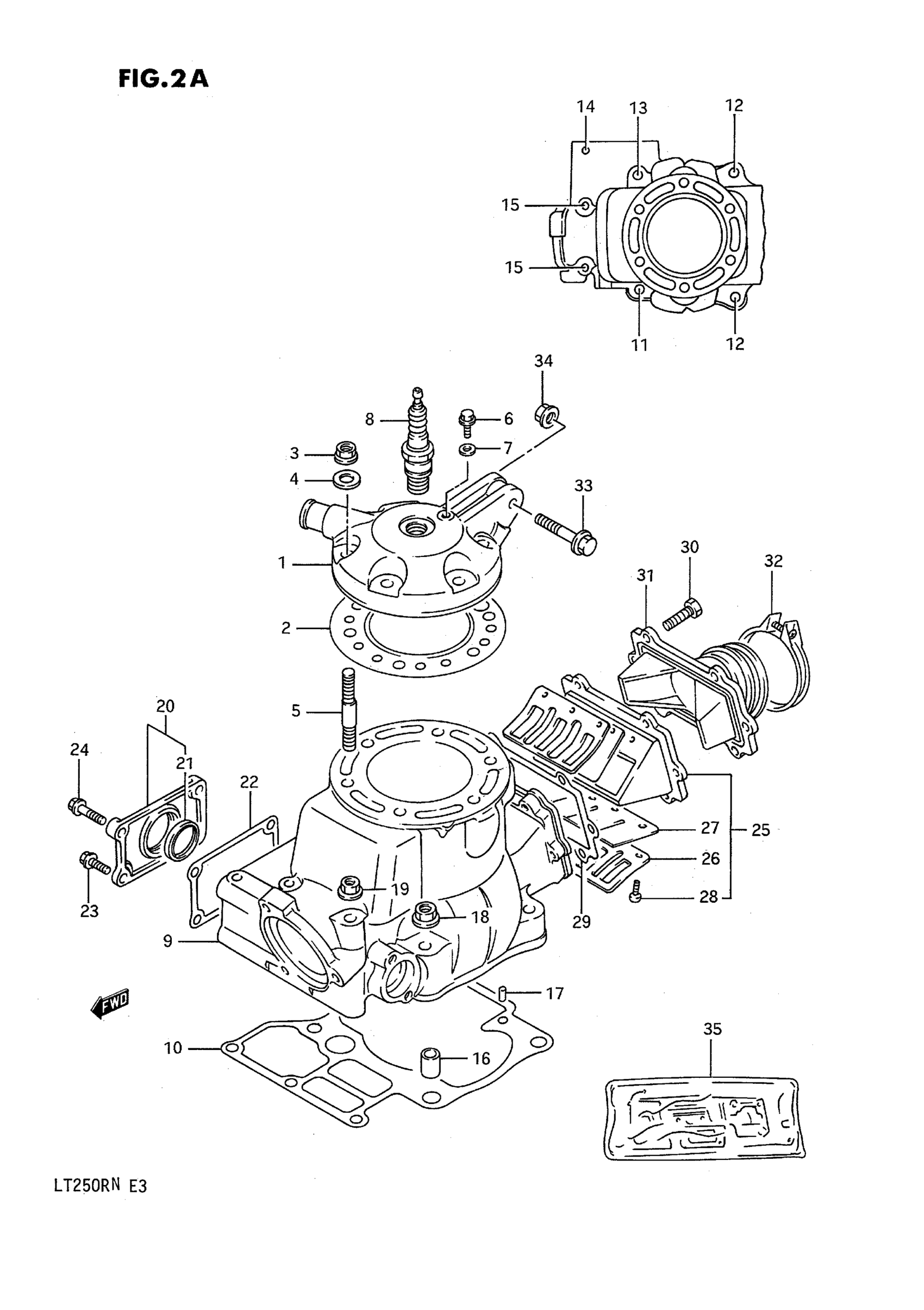

Suzuki LT250R (1992) CYLINDER (MODEL J/K/L/M/N) Diagram

#

Description
Price

1

HEAD, CYLINDER

11111-01C10

Unavailable

2

GASKET, CYLINDER HEAD (NA) | MODEL J/K/L This part replaces 11141-01C01.

11141-01C01-H17

Unavailable

2

GASKET, CYLINDER HEAD (NA) | MODEL M/N

11141-01C01-H17

Unavailable

3

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.24

4

WASHER (8.5X19X2.3) This part replaces 09160-08095.

09160-08039

$1.95

5

STUD BOLT (L:30)

09108-08142

$2.87

6

BOLT, AIR DUCT

09360-06007

$2.67

7

GASKET

09168-06004

$1.43

8

SPARK PLUG BR9E This part replaces 09482-00209.

09482-00349

$6.60

9

CYLINDER

11210-01C11-0F0

Unavailable

10

GASKET,CYLINDER | MODEL J/K/L This part replaces 11241-01C00.

11241-01C10

Unavailable

10

GASKET,CYLINDER | MODEL M/N This part replaces 11241-01C20.

11241-01C10

Unavailable

11

STUD BOLT (8X55)

09108-08189

$6.08

12

STUD BOLT (8X35) This part replaces 09108-08215.

09108-08198

$2.95

13

STUD BOLT (8X65)

09108-08192

Unavailable

14

BOLT,STUD This part replaces 01421-06608.

01421-0660A

$4.12

15

BOLT,STUD This part replaces 01421-06808.

01421-0680A

$2.37

16

PIN

04211-11169

$1.77

17

PIN

04221-05109

$1.49

18

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.24

19

NUT This part replaces 09159-06017.

08319-31067

$2.01

20

COVER, CYLINDER | Includes Item(s) 21

11230-00B01

Unavailable

21

LENS

11232-01B00

Unavailable

22

GASKET, CYLINDER COVER (NA) | MODEL J/K/L This part replaces 11233-00B00.

11233-01C00

Unavailable

22

GASKET, CYLINDER COVER (NA) | MODEL M/N

11233-01C00

Unavailable

23

BOLT

01547-06167

$1.64

24

BOLT

01547-06207

$2.01

25

NO DESCRIPTION AVAILABLE | Includes Item(s) 26 - 28 This part replaces 13150-01C10.

13150-92B00

Unavailable

26

STOPPER

13152-01C10

$9.62

27

VALVE, REED

13153-01C10

$15.38

28

SCREW This part replaces 02112-33086.

02112-3308A

$2.01

29

GASKET, REED VALVE

13156-01C10

$3.18

30

BOLT This part replaces 01107-06207.

01500-06207

$1.99

31

PIPE,INTAKE This part replaces 13110-01C10.

13110-01C11

Unavailable

32

CLAMP

09402-52208

$4.84

33

BOLT, MUF SPRT,RR This part replaces 01517-08457.

01550-08457

$2.63

34

NUT

08319-31087

$2.31

35

GASKET SET | MODEL J/K/L OPT This part replaces 11400-01831.

11400-01836

Unavailable

35

NO DESCRIPTION AVAILABLE | MODEL M/N OPT This part replaces 11400-01851.

11400-01853

Unavailable
