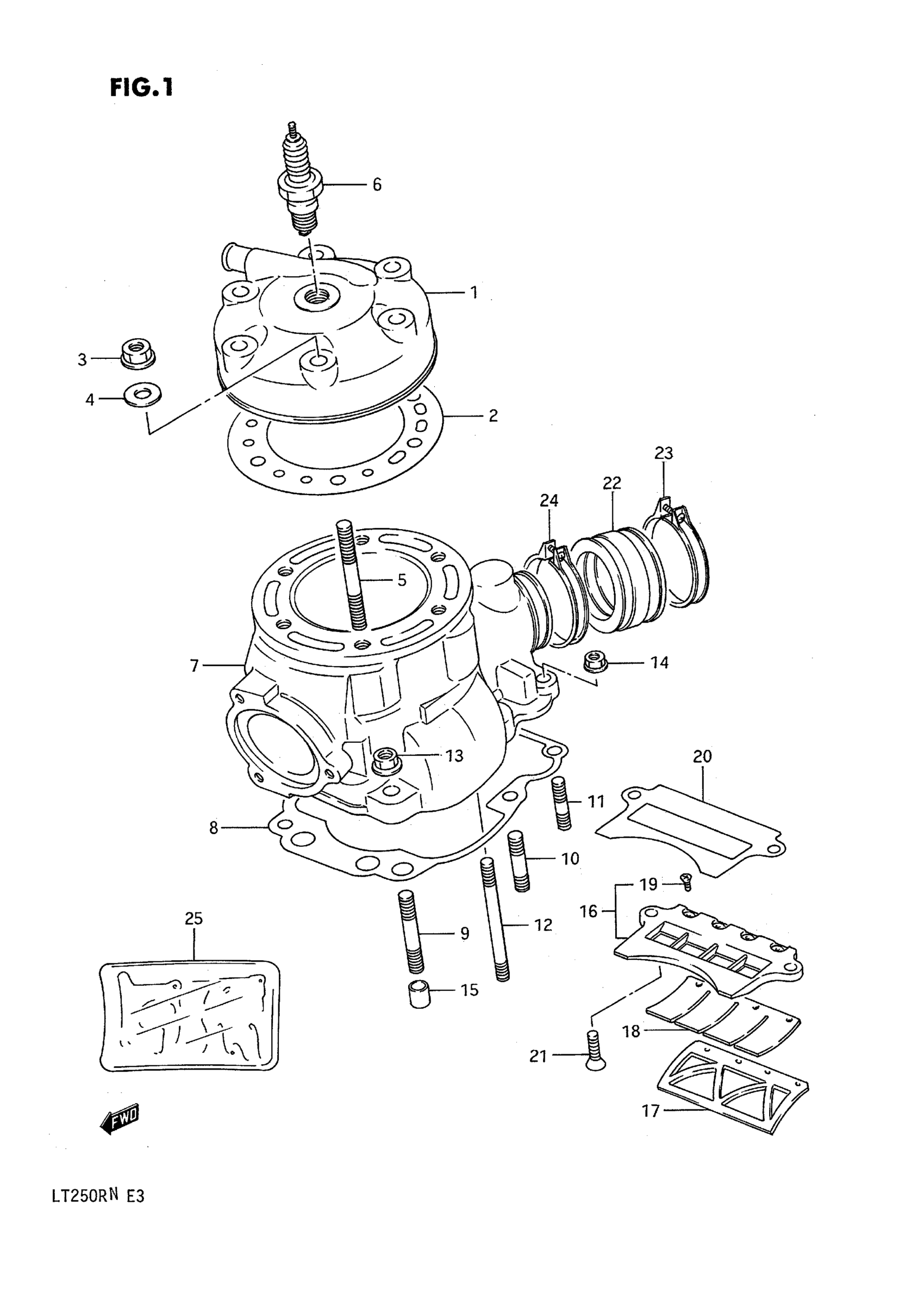

Suzuki LT250R (1992) CYLINDER (MODEL F/G) Diagram

HEAD, CYLINDER

11111-19A02

Unavailable

GASKET,CYL HEAD | MODEL F This part replaces 11141-19A00.

11141-13A60

Unavailable

GASKET,CYL HEAD | MODEL G This part replaces 11141-19A10.

11141-13A60

Unavailable

NUT This part replaces 08316-16085.

08316-1008B

$2.66

WASHER (8.5X19X2.3) This part replaces 09160-08053.

09160-08039

$2.03

BOLT, STUD This part replaces 09108-08105.

09108-08174

Unavailable

SPARK PLUG (NGK,B8EGV)

09482-00208

Unavailable

CYLINDER | MODEL F This part replaces 11210-19A02.

11210-19A10

Unavailable

CYLINDER | MODEL G

11210-19A10

Unavailable

GASKET, CYLINDE This part replaces 11241-19A00.

11241-19A00-H17

Unavailable

STUD BOLT (8X33) This part replaces 09108-08161.

09108-08220

$3.18

BOLT,STUD This part replaces 01421-08255.

01421-0825A

$2.03

STUD BOLT This part replaces 01421-06205.

01421-0620A

$1.91

BOLT,STUD This part replaces 01421-06605.

01421-0660A

$3.23

NUT This part replaces 08316-16085.

08316-1008B

$2.66

NUT This part replaces 08316-16064.

08316-1006B

$2.50

PIN

04211-11169

$1.78

VALVE ASSY, REED | Includes Item(s) 17 - 19

13150-13A00

Unavailable

VALVE ASSY, REED This part replaces 13152-13A00.

13150-13A00

Unavailable

VALVE, REED

13153-13A00

Unavailable

SCREW This part replaces 13154-13A00.

02122-0306B

$2.26

GASKET,REED VAL This part replaces 13156-13A00.

13156-13A00-H17

$4.65

SCREW This part replaces 02122-06208.

02122-0620A

$1.49

PIPE, INTAKE | MODEL F

13111-19A00

Unavailable

PIPE, INTAKE | MODEL G This part replaces 13111-13A00.

13111-19A00

Unavailable

CLAMP

09402-52208

$5.36

CLAMP This part replaces 09402-56208.

09402-56901

$5.36

NO DESCRIPTION AVAILABLE | OPT,MODEL F This part replaces 11400-19841.

11400-19855

Unavailable

NO DESCRIPTION AVAILABLE | OPT,MODEL G This part replaces 11400-19852.

11400-19855

Unavailable
