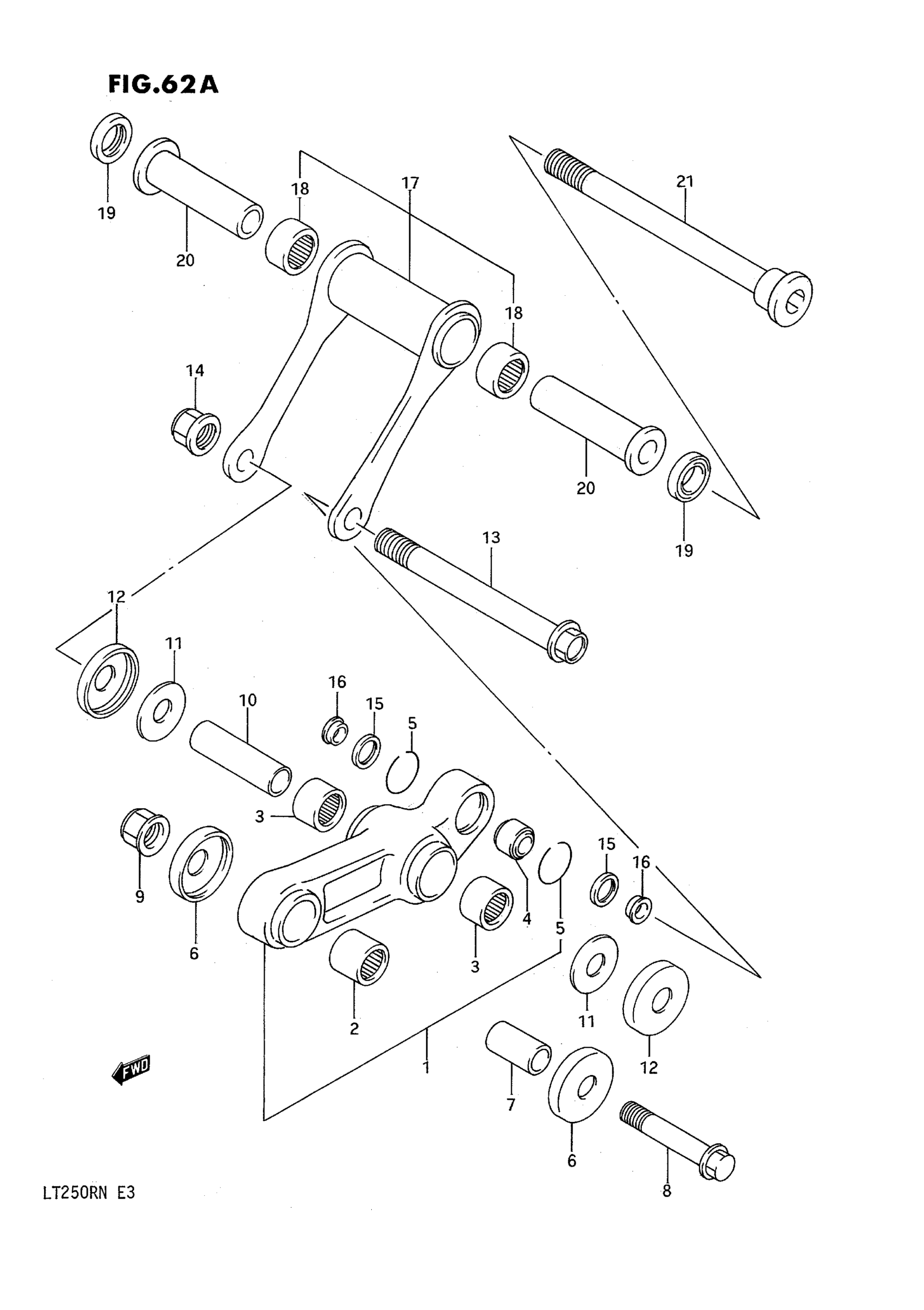

Suzuki LT250R (1992) CUSHION LEVER (MODEL M/N) Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION | Includes Item(s) 2 - 5

62601-01830

Unavailable

2

.BEARING This part replaces 09263-20074.

09263-20116

$31.15

3

BEARING

09263-20071

$25.92

4

BEARING, REAR (10x24x14.5) This part replaces 62175-27C00.

62175-00B00

$61.15

5

RING, STOPPER This part replaces 62277-14200.

62657-34A01

$1.99

6

SEAL, DUST This part replaces 62162-28C01.

62162-28E01

$10.69

7

SPACER, FRONT

62317-27C10

$16.76

8

BOLT, FRONT

62658-01C60

$13.55

9

NUT This part replaces 08319-31128.

08319-3112A

$3.76

10

SPACER, CENTER

09180-14017

Unavailable

11

WASHER

08211-14321

$3.85

12

SEAL This part replaces 62683-27C00.

62683-27C01

Unavailable

13

BOLT, CENTER

09103-14013

Unavailable

14

NUT This part replaces 08319-31148.

08319-3114A

$9.66

15

SEAL, DUST REAR

62226-28C00

$10.07

16

SPACER

62684-28C10

$14.85

17

ROD SET, REAR CUSHION | Includes Item(s) 18

62601-01840

Unavailable

18

BEARING

09263-20071

$25.92

19

SEAL, DUST

62624-14500

$6.01

20

SPACER, ROD

62646-01C60

Unavailable

21

BOLT

62622-01C60

Unavailable
