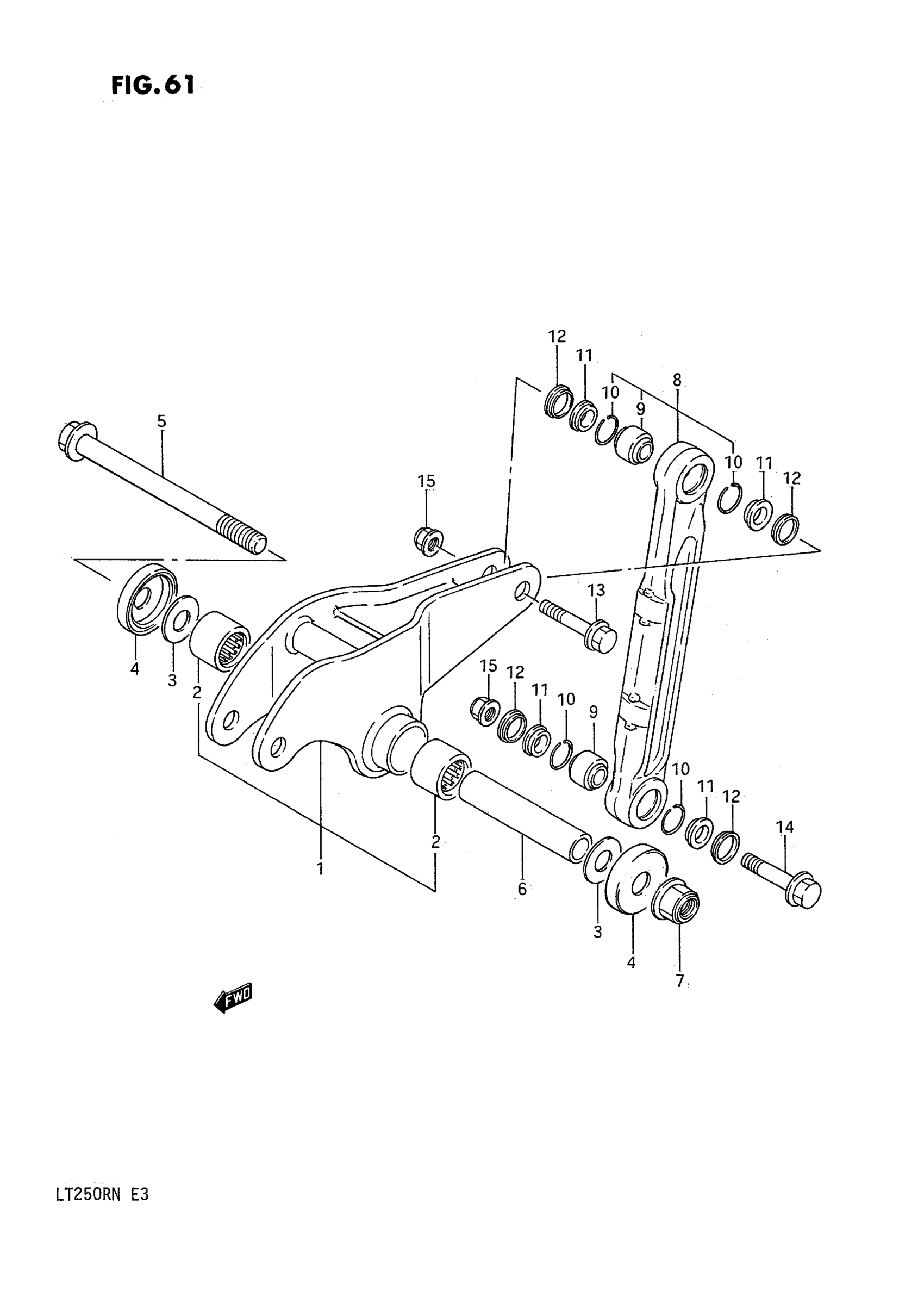

Suzuki LT250R (1992) CUSHION LEVER (MODEL F/G) Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION | MODEL F This part replaces 62600-19810.

62600-19811

Unavailable

1

LEVER SET, REAR CUSHION | MODEL G; Includes Item(s) 2

62600-19811

Unavailable

2

BEARING

09263-17019

Unavailable

3

THRUST WASHER

08211-12285

$4.17

4

SEAL This part replaces 62624-19A00.

62624-44B01

$10.80

5

SHAFT

62621-20402

Unavailable

6

SPACER

62646-14A00

Unavailable

7

NUT This part replaces 08319-31128.

08319-3112A

$3.76

8

ROD SET, REAR CUSHION | Includes Item(s) 9 - 10

62600-19820

Unavailable

9

BEARING

09269-10005

Unavailable

10

STOPPER RING

62657-14500

Unavailable

11

DUST SEAL

62647-14500

$2.92

12

SPACER

62316-14503

Unavailable

13

BOLT, RR CUSHION ROD LWR

62658-14500

$6.55

14

BOLT, LOWER (10X44) | MODEL F

09103-10049

$7.63

14

BOLT, LOWER (10X50) | MODEL G

09103-10064

$5.52

15

NUT

08319-31107

$2.73
