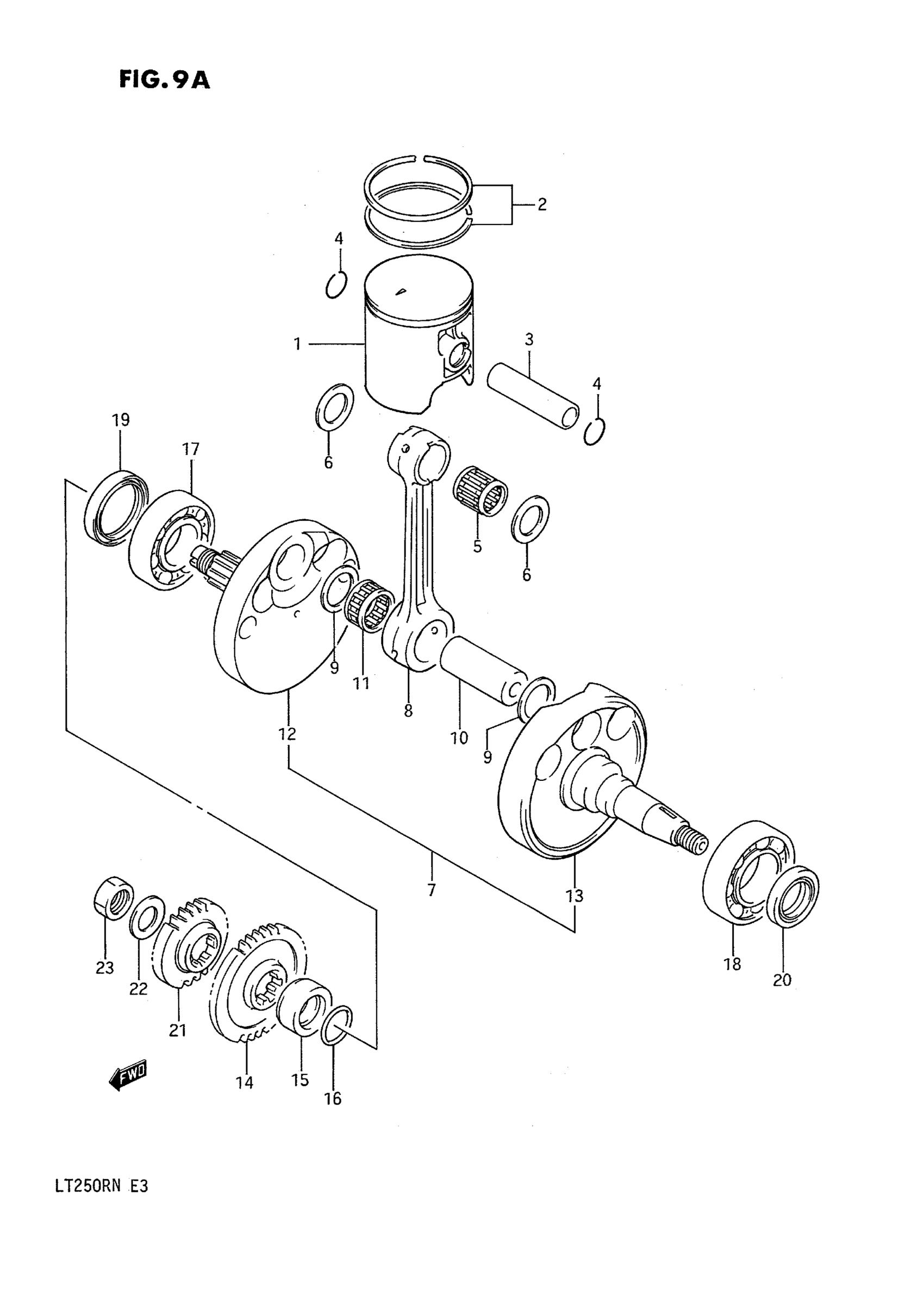

Suzuki LT250R (1992) CRANKSHAFT (MODEL J/K/L/M/N) Diagram

#

Description
Price

1

PISTON

12110-01C13-0F0

Unavailable

1

NO DESCRIPTION AVAILABLE | OPT This part replaces 12110-01C13-025.

12103-01850-025

Unavailable

1

PISTON SET,OS:. | OPT This part replaces 12110-01C13-050.

12103-01850-050

$178.30

2

RING SET, PISTON

12140-01C10

Unavailable

2

RING SET, PISTON (OS:0.25) | OPT

12140-01C10-025

Unavailable

2

RING SET, PISTON (OS:0.5) | OPT

12140-01C10-050

Unavailable

3

PIN, PISTON

12151-13A00-0A0

$16.02

4

CIR CLIP

09381-18002

$1.67

5

BEARING, PISTON PIN

09263-18025

$28.33

6

WASHER

09169-18006

$9.17

7

CRANKSHAFT ASSY | Includes Item(s) 8 - 13

12200-01C10

Unavailable

8

ROD, CONNECTING This part replaces 12161-00B00.

12161-05D00

Unavailable

9

WASHER

09160-24015

Unavailable

10

PIN, CRANK

12211-14301

Unavailable

11

BEARING This part replaces 09263-24023.

09263-24026

$69.90

12

CRANKSHAFT, RH

12221-01C10

Unavailable

13

CRANKSHAFT, LH

12261-01C10

Unavailable

14

GEAR, CRANK BALANCER DRIVE

12661-01C00

Unavailable

15

SPACER

12359-43B00

Unavailable

16

.O-RING (D:2.4,ID:21.8)

09280-22001

$1.65

17

BEARING, LH This part replaces 09262-30080.

09262-30066

Unavailable

18

BEARING, LH (32X65X17)

09262-32006

$63.58

19

OIL SEAL, RH (36X52X8)

09283-36004

$10.85

20

OIL SEAL, LH (25X38X7)

09283-25082

Unavailable

21

GEAR, PRIMARY DRIVE

21111-01C00

Unavailable

22

WASHER

09164-16002

$3.16

23

NUT

09140-16019

$3.70
