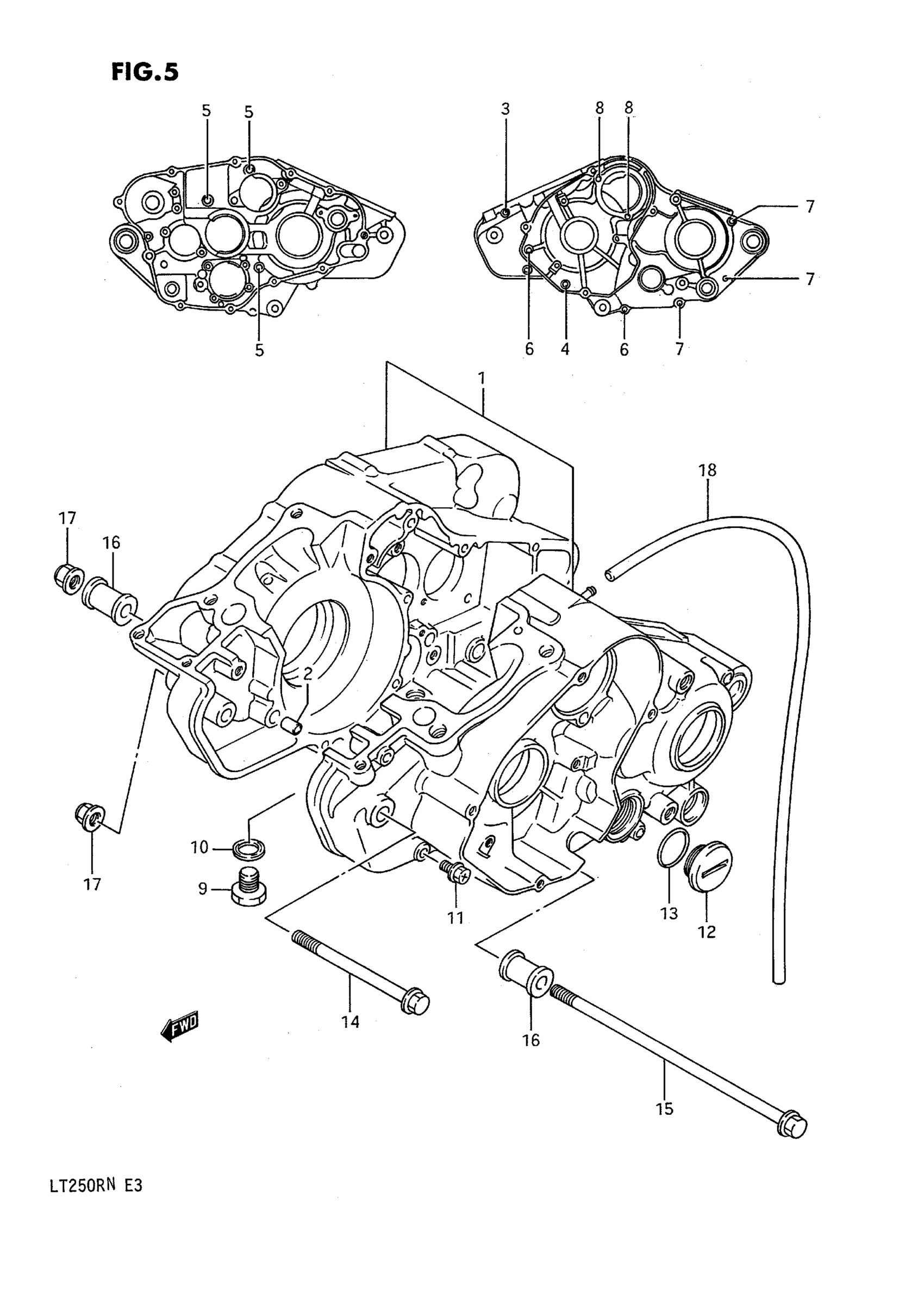

Suzuki LT250R (1992) CRANKCASE (MODEL H/J/K/L/M/N) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 8 This part replaces 11300-01830.

11300-01833

Unavailable

2

PIN

04211-09169

$1.73

3

BOLT

01547-06407

$2.34

4

BOLT

01547-06457

$2.31

5

BOLT

01547-06507

$2.42

6

BOLT

01547-06657

$2.77

7

BOLT,CARB This part replaces 01547-06757.

09103-06522

$3.20

8

SCREW 6X65 This part replaces 02122-06658.

02122-06657

$2.40

9

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$4.73

10

GASKET

09168-14004

$1.69

11

BOLT (6X10) This part replaces 09128-06043.

09128-06058

$2.17

12

PLUG This part replaces 09259-26007.

09259-26002-XC0

$14.53

13

O RING

09280-22008

$2.10

14

BOLT (8X105)

09103-08097

$3.15

15

BOLT (8X215)

09103-08175

Unavailable

16

SPACER (L:28)

11610-14200

Unavailable

17

NUT

08319-31087

$2.31

18

HOSE 4X7X600 This part replaces 09352-40703-600.

09352-40706-600

$4.68
