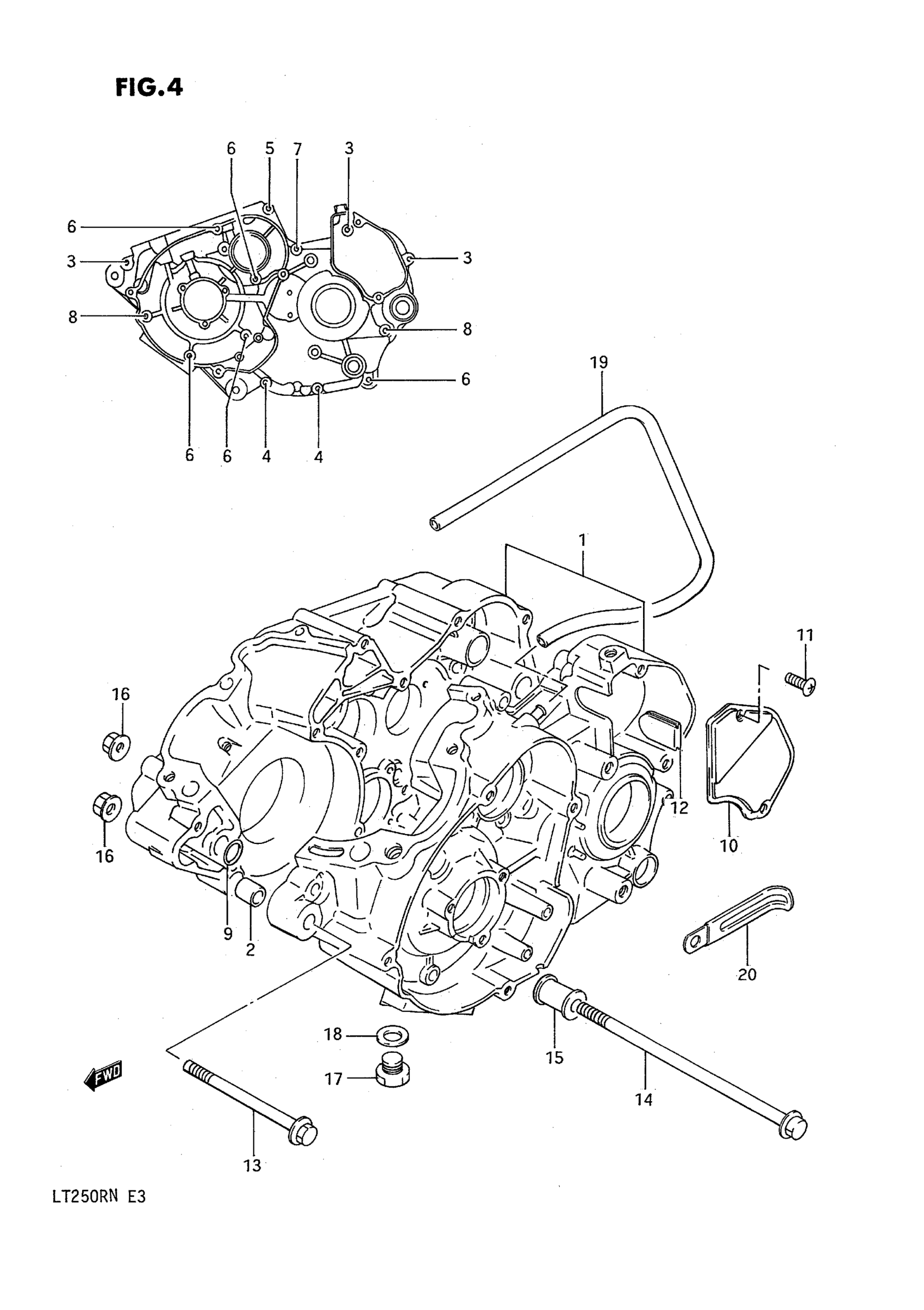

Suzuki LT250R (1992) CRANKCASE (MODEL F/G) Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 9

11300-19840

Unavailable

2

PIN This part replaces 09206-13001.

04211-13189

$2.19

3

SCREW, SEAT SUPPORT BRK This part replaces 02112-06305.

02112-0630A

$1.78

4

SCREW This part replaces 02112-06404.

02112-0640A

$1.96

5

SCREW This part replaces 02112-06455.

02112-0645B

$2.19

6

SCREW This part replaces 02112-06504.

02112-0650B

$2.42

7

SCREW This part replaces 02112-06605.

02112-0660B

$3.03

8

SCREW This part replaces 02112-06654.

02112-0665B

$2.71

9

O RING (D:1.9,ID:13.8)

09280-14004

$1.65

10

CAP,OIL INSPECT This part replaces 11385-13A01.

11385-13A10

Unavailable

11

SCREW This part replaces 02112-06104.

02112-0610B

$1.84

12

PLUG

09259-18001

Unavailable

13

BOLT (8X90)

09103-08112

$8.43

14

BOLT (8X215)

09103-08175

Unavailable

15

SPACER, ENGINE MOUNTING (L:28)

11610-14200

Unavailable

16

NUT

08319-31087

$2.32

17

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

18

GASKET (14X19.2X2)

09168-14004

$1.83

19

HOSE 4X7X600 This part replaces 09352-40703-600.

09352-40706-600

$5.11

20

CLAMP(L:80) This part replaces 09404-06417.

09404-06036

$1.74
