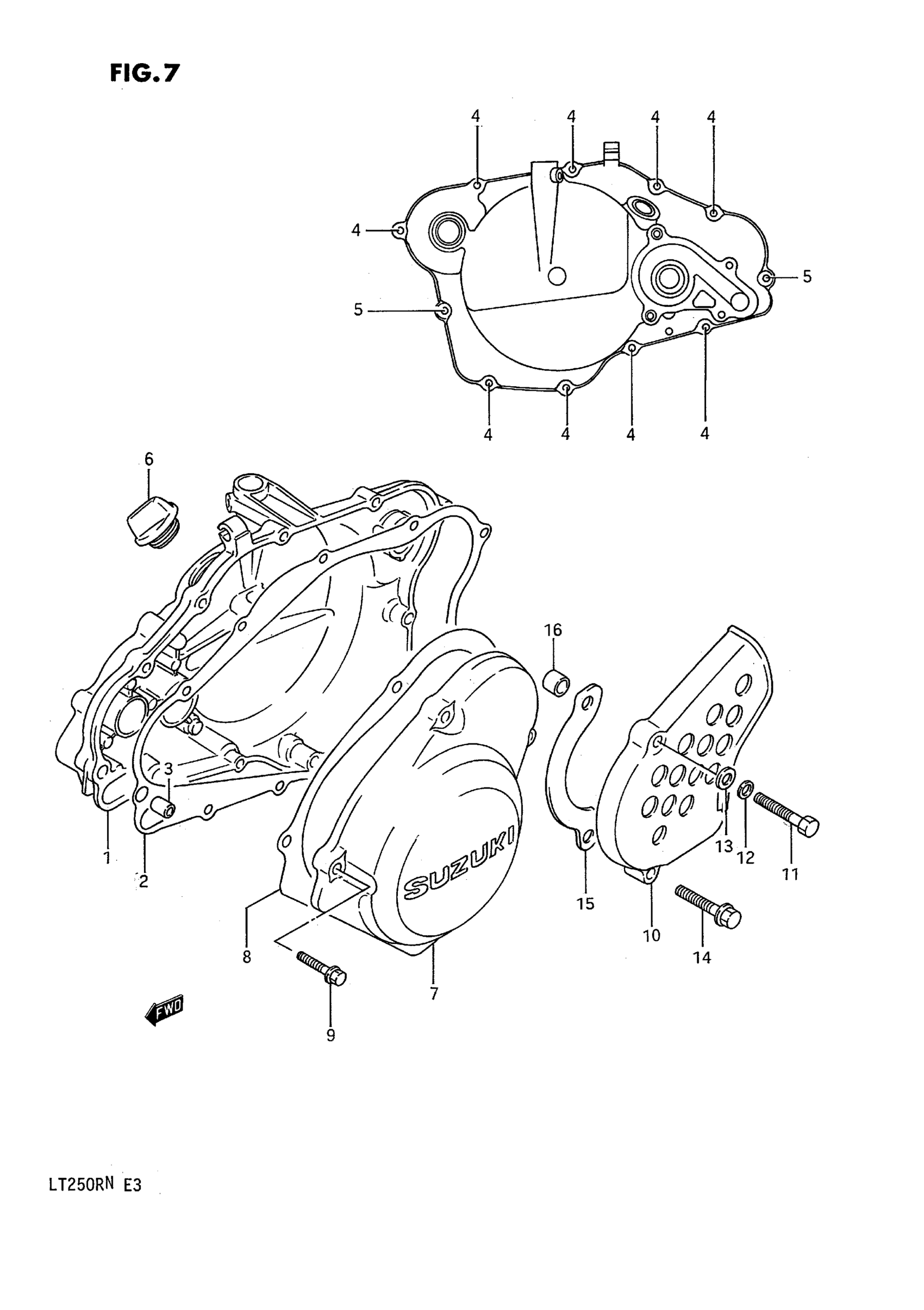

Suzuki LT250R (1992) CRANKCASE COVER (MODEL H/J/K/L/M/N) Diagram

#

Description
Price

1

COVER, CLUTCH | %E.NO.110184 This part replaces 11341-01C00.

11341-01C01

Unavailable

1

COVER, CLUTCH | E.NO.110185%

11341-01C01

Unavailable

2

GASKET, CLUTCH COVER (NA) | MODEL H/J/K/L This part replaces 11482-01C00.

11482-01C10

Unavailable

2

GASKET, CLUTCH COVER (NA) | MODEL M/N

11482-01C10

Unavailable

3

PIN

04211-09129

$1.65

4

BOLT

01547-06257

$2.03

5

BOLT

01547-06357

$2.03

6

PLUG SET This part replaces 09200-20810.

09200-20811

$4.02

7

COVER, MAGNETO

11351-01C00

Unavailable

8

GASKET, MAGNETO COVER (NA) | MODEL H/J/K/L This part replaces 11483-01C00.

11483-01C10

Unavailable

8

GASKET, MAGNETO COVER (NA) | MODEL M/N

11483-01C10

Unavailable

9

BOLT

01547-06257

$2.03

10

COVER, SPROCKET

11360-01C00

Unavailable

11

BOLT | MODEL H This part replaces 01107-08408.

01500-0840A

$2.60

12

.LOCK WASHER | MODEL H This part replaces 08321-21088.

08321-01087

$2.13

13

WASHER | MODEL H This part replaces 08322-11088.

08322-01087

$2.13

14

BOLT | MODEL J/K/L/M/N This part replaces 01517-08407.

01550-08407

$3.42

15

PLATE, CHAIN GUIDE

27641-01C00

Unavailable

16

SPACER,8.5X14X1 This part replaces 09180-08083.

09180-08201

$3.05
