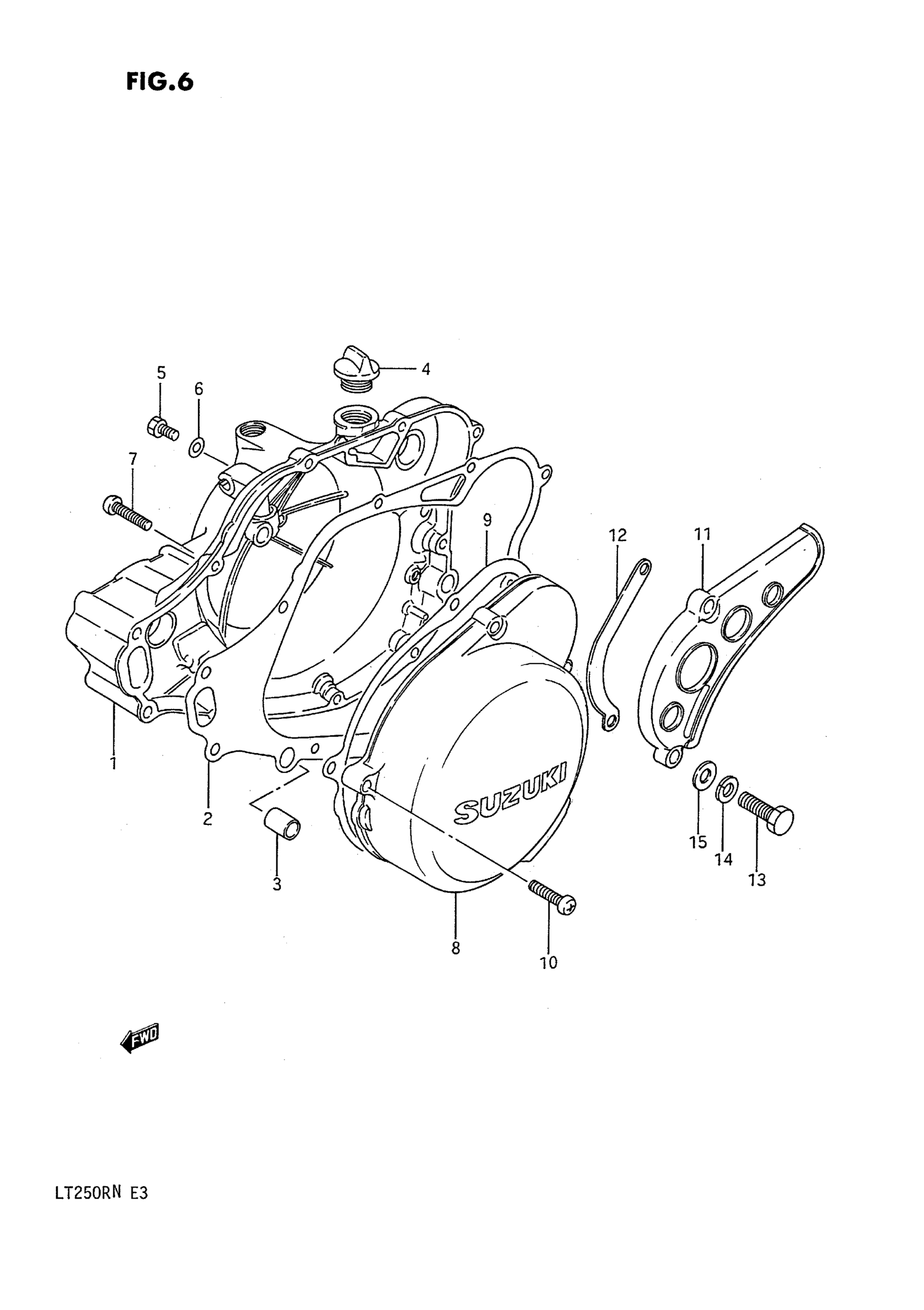

Suzuki LT250R (1992) CRANKCASE COVER (MODEL F/G) Diagram

#

Description
Price

1

COVER, CLUTCH

11341-19A00

Unavailable

2

GASKET,CL COVER This part replaces 11482-13A00.

11482-13A00-H17

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

PLUG SET This part replaces 09200-20810.

09200-20811

$4.02

5

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.49

6

GASKET (6.2X11X1)

09168-06001

$1.49

7

SCREW This part replaces 02112-06255.

02112-0625A

$1.80

8

COVER, MAGNETO

11351-19A00

Unavailable

9

GASKET, MAGNETO COVER

11483-13A00

Unavailable

10

SCREW This part replaces 02112-06255.

02112-0625A

$1.80

11

COVER SPROCKET This part replaces 11360-19A00.

11360-19AV0-13L

Unavailable

12

PLATE, FRONT CHAIN GUIDE

27641-13A00

$7.70

13

BOLT This part replaces 01107-08304.

01500-0830B

$3.16

14

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

15

WASHER This part replaces 08322-11084.

08322-0108A

$1.92
