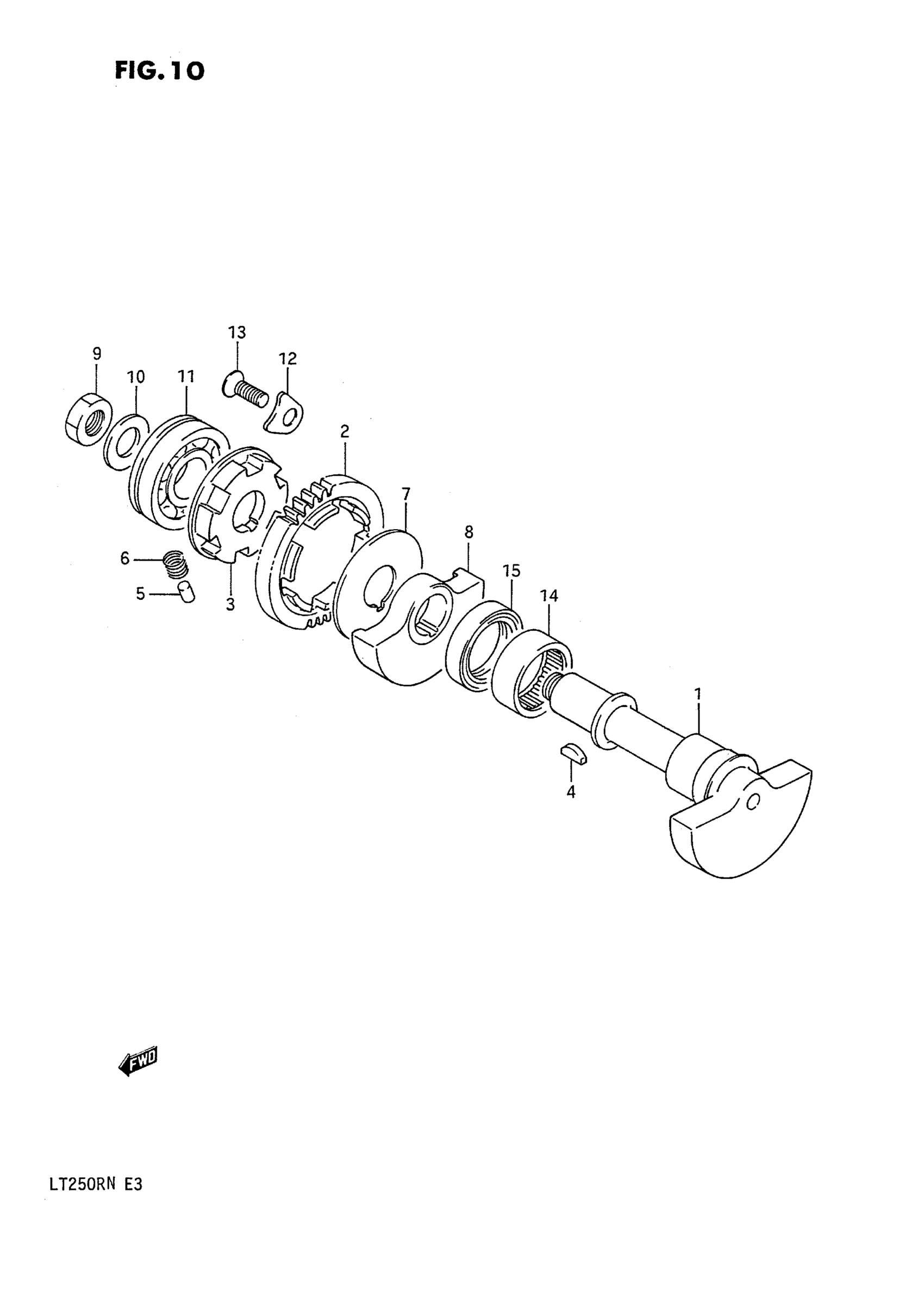

Suzuki LT250R (1992) CRANK BALANCER (MODEL F/G) Diagram

#

Description
Price

1

BALANCER, CRANK

12651-19A02

Unavailable

2

GEAR, CRANK BALANCER DRIVEN

12666-13A01

Unavailable

3

RACE, DRIVEN GEAR INNER

12669-13A01

Unavailable

4

KEY

08341-31059

$2.48

5

PIN This part replaces 09202-04013.

09202-04017

$3.78

6

SPRING

09440-09015

$2.38

7

WASHER

09166-20007

Unavailable

8

WEIGHT, CRANK BALANCER RH

12654-13A00

Unavailable

9

NUT | %E.NO.106313 This part replaces 09140-14025.

09140-14028

Unavailable

9

NUT | E.NO.106314%

09140-14028

Unavailable

10

WASHER | %E.NO.106313

08211-14283

$3.85

10

LOCK WASHER | E.NO.106314%

09164-14010

Unavailable

11

BEARING (20X52X15)

09262-20003

Unavailable

12

RETAINER, RH

12542-13A00

Unavailable

13

SCREW

02122-06167

$1.49

14

BEARING

09263-27006

Unavailable

15

OIL SEAL (28X40X8)

09289-28007

Unavailable
