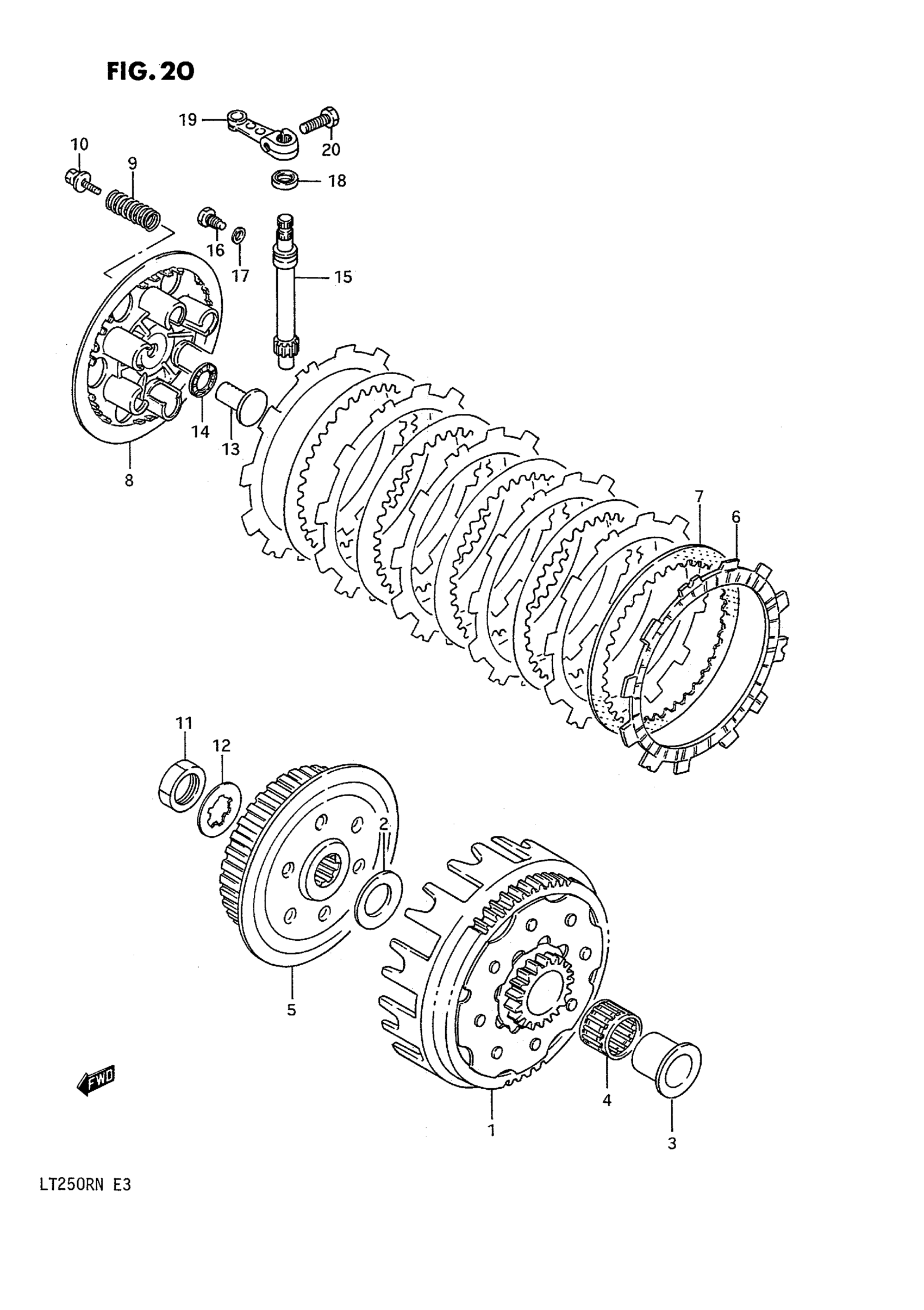

Suzuki LT250R (1992) CLUTCH (MODEL H/J/K/L/M/N) Diagram

GEAR ASSY, PRIMARY DIRVEN | NT:59/18

21200-00B02

Unavailable

WASHER

09160-20063

$7.35

SPACER This part replaces 21251-00B00.

21251-43D00

$35.74

BEARING (25X30X22)

09263-25046

$25.92

HUB, SLEEVE

21410-00B02

Unavailable

PLATE, DRIVE NO.1 This part replaces 21441-07A01.

21441-12D01

$20.64

PLATE, DRIVEN (T:2.0)

21451-31000

$10.40

DISC, PRESSURE

21462-00B02

$57.67

SPRING

09440-15025

Unavailable

BOLT (5X16) This part replaces 09116-05003.

09116-05020

$2.03

NUT This part replaces 09140-20002.

09140-20001

$3.37

LOCK WASHER This part replaces 09167-20006.

09167-20009

$2.03

RACK,CLUTCH RELEASE This part replaces 23165-00B00.

23165-44B01

$24.92

THRUST BEARING

09263-10002

$10.19

PINION

23261-43B00

Unavailable

BOLT (6X10) This part replaces 09135-06002.

09135-06501

$3.04

WASHER (6.2X11X1.2)

09168-06004

$1.49

OIL SEAL

09285-10004

$3.37

ARM, CLUTCH RELEASE This part replaces 23271-20900.

23271-20902

$29.60

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

$1.97
