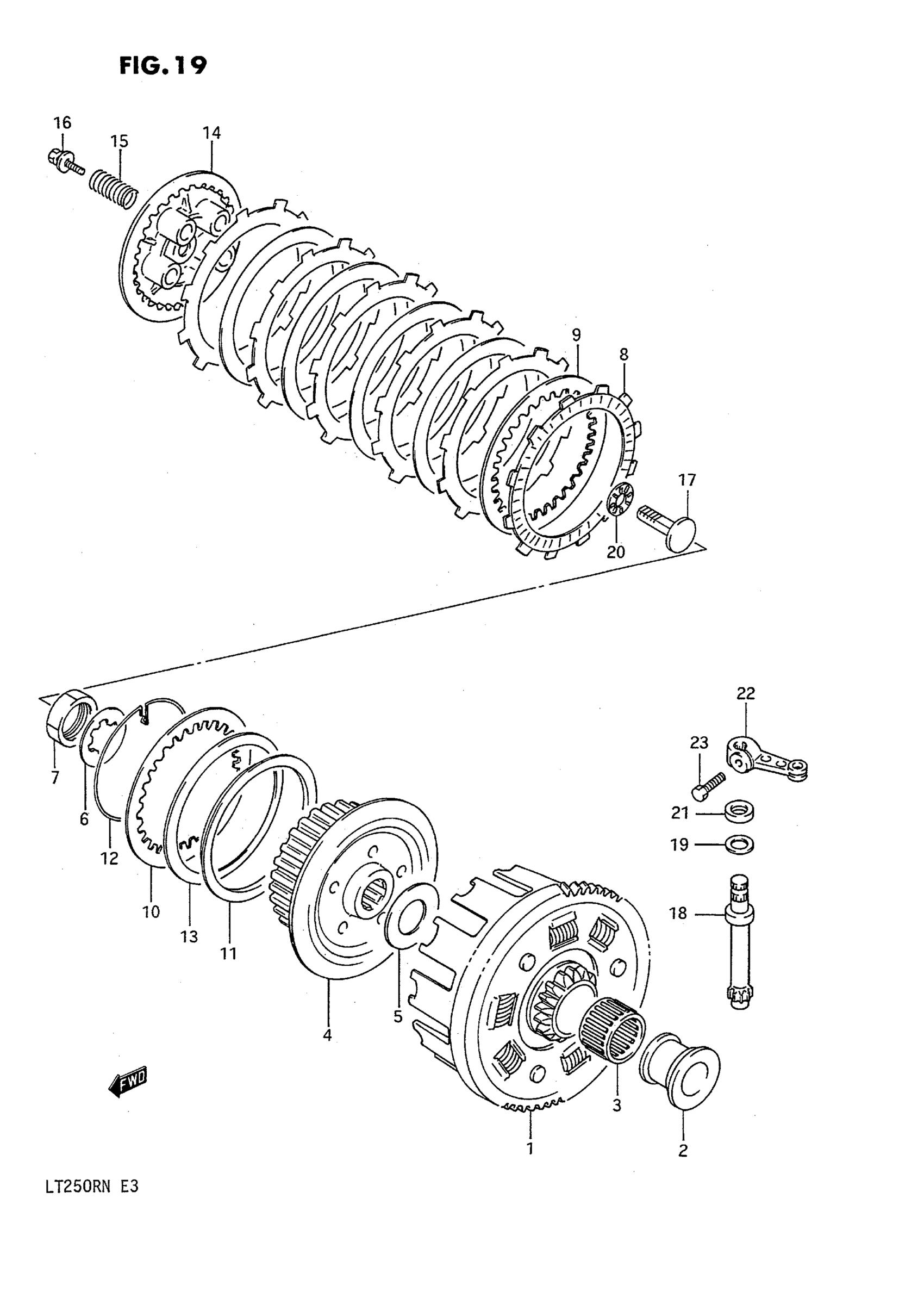

Suzuki LT250R (1992) CLUTCH (MODEL F/G) Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN | NT:65/18

21200-13A04

Unavailable

2

SPACER

21251-14601

Unavailable

3

BEARING

09263-25044

Unavailable

4

HUB, SLEEVE

21411-13A01

Unavailable

5

THRUST WASHER

09160-20054

Unavailable

6

LOCK WASHER This part replaces 09167-20006.

09167-20009

$2.03

7

NUT This part replaces 09140-20002.

09140-20001

$3.37

8

PLATE, CLUTCH DRIVE | %E.NO.103149 This part replaces 21441-13A00.

21441-13A01

$14.73

8

PLATE, CLUTCH DRIVE (T:3.0) | E.NO.103150% This part replaces 21441-19A00.

21441-25C01

$20.77

9

PLATE, CLUTCH DRIVEN (T:1.6) | %E.NO.103149 This part replaces 21451-28000.

21451-19A00

$7.58

9

PLATE, CLUTCH DRIVEN (T:1.6) | E.NO.103150%

21451-19A00

$7.58

10

PLATE, DRIVEN (T:2.0)

21451-36200

$7.58

11

SEAT, WAVE WASHER

21471-36200

$14.53

12

STOPPER RING

21481-39301

$5.32

13

WAVE WASHER

09164-98001

$12.70

14

DISK,CL PRESSUR | MODEL F This part replaces 21462-04A00.

21462-32C50

Unavailable

14

DISK,CL PRESSUR | MODEL G This part replaces 21462-19A10.

21462-32C50

Unavailable

15

SPRING | MODEL F

09440-15020

Unavailable

15

SPRING,CLUTCH | MODEL G This part replaces 09440-15024.

09440-15030

$5.77

16

BOLT (5X16) This part replaces 09116-05003.

09116-05020

$2.03

17

RACK, CLUTCH RELEASE

23165-13A00

Unavailable

18

PINION

23261-13A01

$48.23

19

WASHER (12.5X17X1) This part replaces 09160-12035.

09160-12086

$2.15

20

BEARING

09263-10002

$10.19

21

OIL SEAL (10X17X5)

09285-10004

$3.37

22

ARM,CLUTCH RELE This part replaces 23271-14101.

23271-14103

$36.17

23

BOLT This part replaces 01107-06166.

01500-0616A

$1.78
