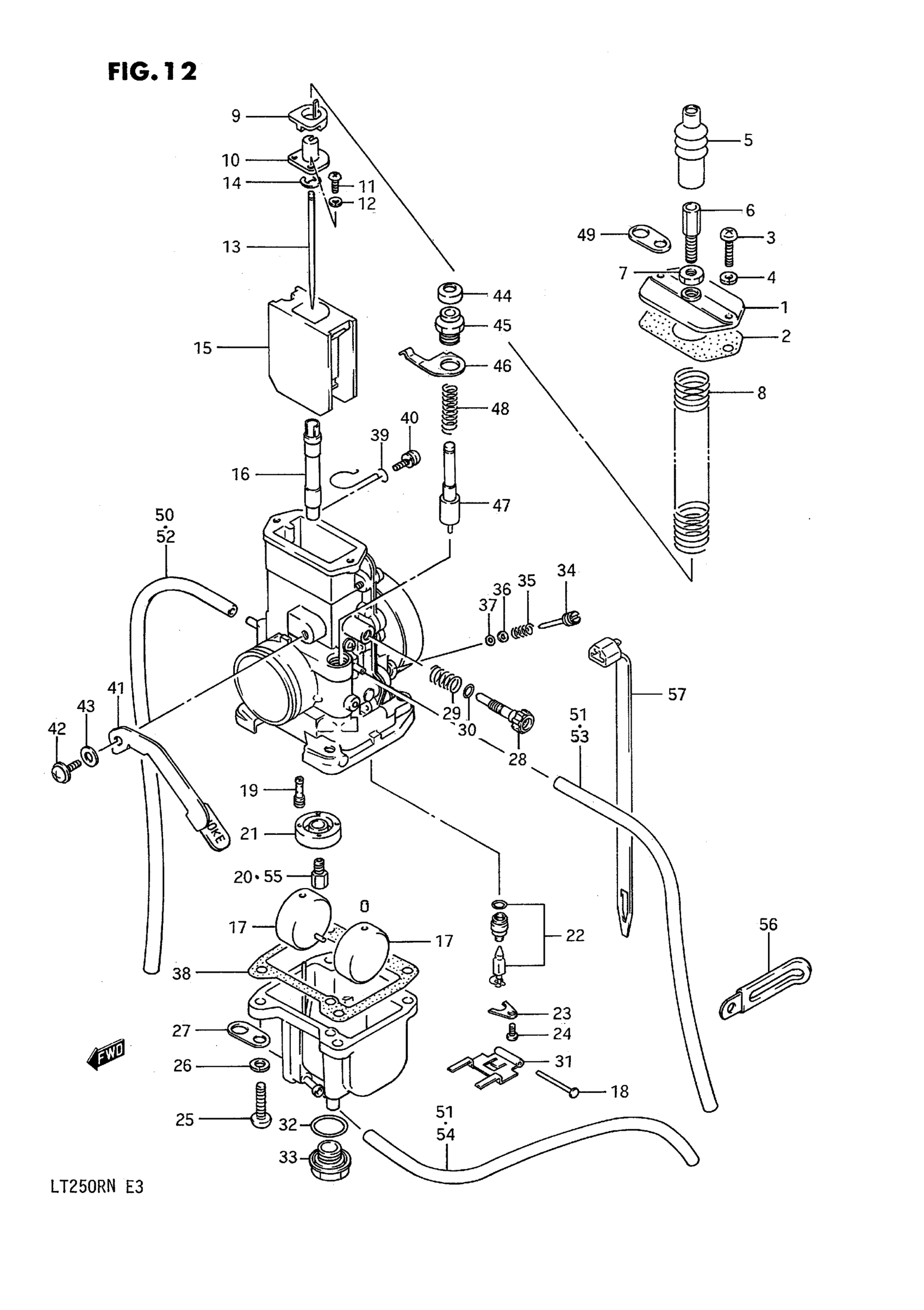

Suzuki LT250R (1992) CARBURETOR Diagram

#

Description
Price

CARBURETOR ASSY | MODEL F

13200-19A00

Unavailable

CARBURETOR ASSY | MODEL G

13200-19A10

Unavailable

CARBURETOR ASSY | MODEL H This part replaces 13200-01C01.

13200-01C31

Unavailable

CARBURETOR ASSY | MODEL J This part replaces 13200-01C11.

13200-01C31

Unavailable

CARBURETOR ASSY | MODEL K/L This part replaces 13200-01C20.

13200-01C31

Unavailable

CARBURETOR ASSY | MODEL M This part replaces 13200-01C30.

13200-01C31

Unavailable

CARBURETOR ASSY | MODEL N; Includes Item(s) 1 - 54

13200-01C31

Unavailable

1

CAP, TOP

13261-14500

Unavailable

2

GASKET

13266-14500

Unavailable

3

SCREW This part replaces 02112-04126.

02112-0412A

$1.49

4

LOCK WASHER This part replaces 08321-21046.

08321-0104A

$1.84

5

CAP, RUBBER

13681-41510

$11.68

6

ADJUSTER

13577-41612

$7.01

7

NUT

13661-16600

$4.64

8

SPRING | MODEL F/G

13573-14500

Unavailable

8

SPRING | MODEL H/J/K/L/M/N

13573-01C00

Unavailable

9

RING

13629-16700

Unavailable

10

JOINT

13398-16700

Unavailable

11

SCREW This part replaces 02112-03106.

02112-0310B

$2.72

12

LOCK WASHER This part replaces 08321-21036.

08321-2103B

$1.49

13

NEEDLE, JET (6FP55-3) | MODEL F/G

13383-14510

Unavailable

13

NEEDLE, JET (6FP60-3) | MODEL H

13383-01C00

Unavailable

13

NEEDLE, JET (6FP63-3) | MODEL J/K/L/M/N

13383-01C10

Unavailable

14

E RING | MODEL F/G/H

13394-10010

$5.45

14

E RING | MODEL J/K/L/M/N

13394-31210

$4.64

15

NO DESCRIPTION AVAILABLE | MODEL F This part replaces 13551-19A00.

13551-13A50

Unavailable

15

VALVE, PISTON (CA:4.0) | MODEL G This part replaces 13551-19A10.

13551-01C00

Unavailable

15

VALVE, PISTON (CA:4.0) | MODEL H/J/K/L/M/N

13551-01C00

Unavailable

16

JET, NEEDLE (Q-1) | MODEL F

09494-00491

Unavailable

16

JET, NEEDLE (Q-3) | MODEL G

09494-00526

Unavailable

16

JET, NEEDLE (Q-8) | MODEL H/M

09494-00393

Unavailable

16

JET, NEEDLE (R-0) | MODEL J/K/L

09494-00357

Unavailable

16

JET, NEEDLE (Q-7) | MODEL N

09494-00729

Unavailable

17

FLOAT

13252-18620

$21.82

18

PIN, FLOAT

13254-92311

$2.07

19

JET, PILOT (45) | MODEL F/G

09492-45009

Unavailable

19

JET, PILOT (37.5) | MODEL H

09492-35006

$10.30

19

JET, PILOT (30) | MODEL J/K/L/M/N

09492-30006

$9.55

20

JET, MAIN (200) | MODEL F

09491-40006

Unavailable

20

JET, MAIN (210) | MODEL G This part replaces 09491-42001.

09491-42005

Unavailable

20

JET. MAIN (240) | MODEL H/J/K/L This part replaces 09491-48001.

09491-48003

Unavailable

20

JET, MAIN (270) | MODEL M

09491-54002

Unavailable

20

JET, MAIN | MODEL N This part replaces 09491-52001.

09491-52006

$10.38

21

RING | MODEL F

13331-19A00

Unavailable

21

RING | MODEL G

13331-19A10

Unavailable

21

RING | MODEL H/J/K/L/M/N

13331-01B21

Unavailable

22

VALVE ASSY,NEED This part replaces 13370-14300.

13370-43B01

Unavailable

23

PLATE

13373-39110

$6.64

24

SCREW This part replaces 02112-04066.

02112-0406B

$1.55

25

.SCREW This part replaces 02112-05166.

02112-0516A

$1.49

26

LOCK WASHER This part replaces 08321-21056.

08321-0105A

$1.84

27

PLATE | MODEL G/H/J

13693-13A00

Unavailable

28

ADJUSTER, THROTTLE STOP

13267-48700

$17.37

29

SPRING

13268-48110

$4.64

30

O RING

13278-02340

$1.91

31

ARM, FLOAT

13253-40010

Unavailable

32

O RING

13249-41310

$4.40

33

BOLT, DRAIN

13247-32210

$15.23

34

SCREW, AIR (3/4) | MODEL F

13269-48030

Unavailable

34

SCREW, AIR (1 1/4) | MODEL G

13269-48030

Unavailable

34

SCREW, AIR (1 1/2) | MODEL H

13269-48030

Unavailable

34

SCREW, AIR (2.0) | MODEL J/K/L/M

13269-48030

Unavailable

34

SCREW, AIR (1 3/4) | MODEL N

13269-48030

Unavailable

35

SPRING,THROTTLE SCREW

13268-48700

$4.34

36

WASHER

13291-29900

$1.98

37

O-RING This part replaces 13295-29900.

13295-29901

$4.34

38

GASKET, FLOAT CHAMBER

13251-14300

Unavailable

39

CLIP

13692-14500

Unavailable

40

SCREW

13601-04148

$2.81

41

LEVER, CHOKE

13414-13A00

Unavailable

42

SCREW

13602-05A30

$4.35

43

WASHER

13571-19A00

Unavailable

44

CAP

13682-09210

$2.92

45

HOLDER, PLUNGER

13418-09110

$12.47

46

SPRING

13426-13A00

Unavailable

47

PLUNGER ASSY

13411-18010

Unavailable

48

SPRING

13417-18630

$6.00

49

PLATE | MODEL K/L/M/N

13693-36500

$3.25

50

HOSE (3.5X6.5X600) | MODEL F/G This part replaces 13684-19A01.

09351-35653-600

$4.64

51

HOSE (3.5X6.5X600) | MODEL F/G This part replaces 13684-19A01.

09351-35653-600

$4.64

52

HOSE (3.5X6.5X600) | MODEL H/J This part replaces 13683-37420.

09351-35653-600

$4.64

52

HOSE (3.5X6.5X600) | MODEL K/L/M/N This part replaces 13683-37420.

09351-35653-600

$4.64

53

HOSE (3.5X6.5X600) | MODEL H/J This part replaces 13683-37420.

09351-35653-600

$4.64

54

HOSE (3.5X6.5X600) | MODEL H/J/K/L/M/N This part replaces 13683-37420.

09351-35653-600

$4.64

55

JET, MAIN (190) | OPT

09491-38009

Unavailable

55

JET, MAIN (195) | OPT

09491-38006

Unavailable

55

JET, MAIN (200) | OPT

09491-40006

Unavailable

55

JET, MAIN (210) | OPT This part replaces 09491-42001.

09491-42005

Unavailable

55

JET, MAIN | OPT This part replaces 09491-44001.

09491-44007

Unavailable

55

JET, MAIN (230) | OPT

09491-46001

$11.57

55

JET. MAIN (240) | OPT This part replaces 09491-48001.

09491-48003

Unavailable

55

JET, MAIN (250) | OPT

09491-50008

Unavailable

55

JET, MAIN | OPT This part replaces 09491-52001.

09491-52006

$10.38

55

JET, MAIN (270) | OPT

09491-54002

Unavailable

56

CLAMP | MODEL F/G This part replaces 09404-06402.

09404-06039

$1.74

57

CLAMP, AIR VENT HOSE | MODEL L/M/N

09407-25401

$4.66
