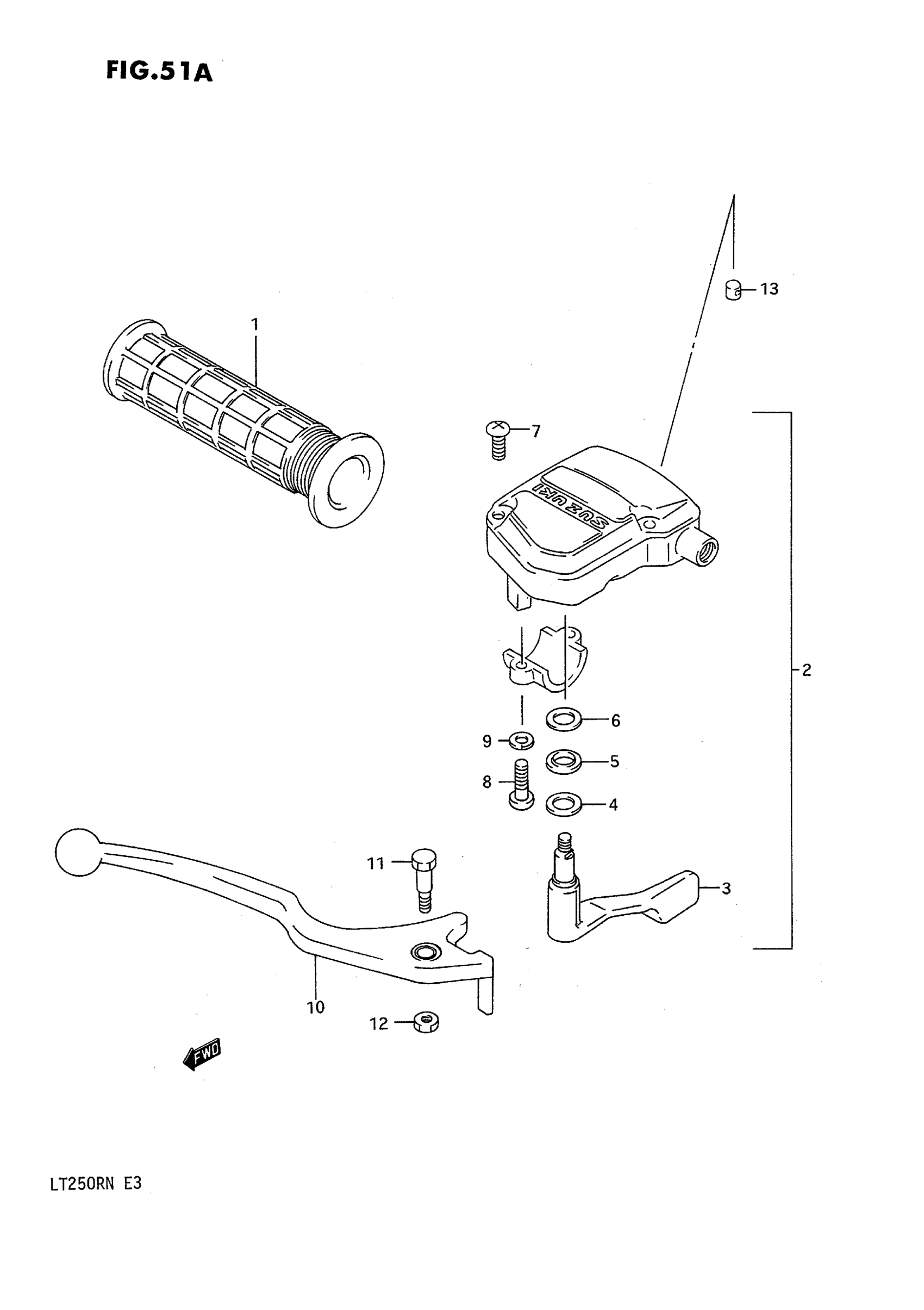

Suzuki LT250R (1992) BRAKE LEVER (MODEL M/N) Diagram

#

Description
Price

1

GRIP This part replaces 57211-19A03-291.

57211-19A04-291

$11.75

2

CASE ASSY, THROTTLE | Includes Item(s) 3 - 9

57100-43B01

Unavailable

3

LEVER

57151-43B01

Unavailable

4

WASHER (8.2X14.0X1.0)

57154-43B01

Unavailable

5

DUST SEAL (8.0X12.0X3.0)

57159-43B01

Unavailable

6

WASHER (8.2X12.0X0.5)

57152-43B01

Unavailable

7

SCREW This part replaces 02112-05125.

02112-0512A

$1.49

8

SCREW This part replaces 02112-05205.

02112-0520B

$1.84

9

LOCK WASHER This part replaces 08321-21055.

08321-0105A

$1.84

10

LEVER, BRAKE

57421-13001

$13.33

11

BOLT This part replaces 57431-13030.

09111-06075

$7.42

12

.NUT This part replaces 08319-21065.

08319-2106B

$2.32

13

PIN, THROTTLE CABLE (L:7)

58631-22A00

Unavailable
