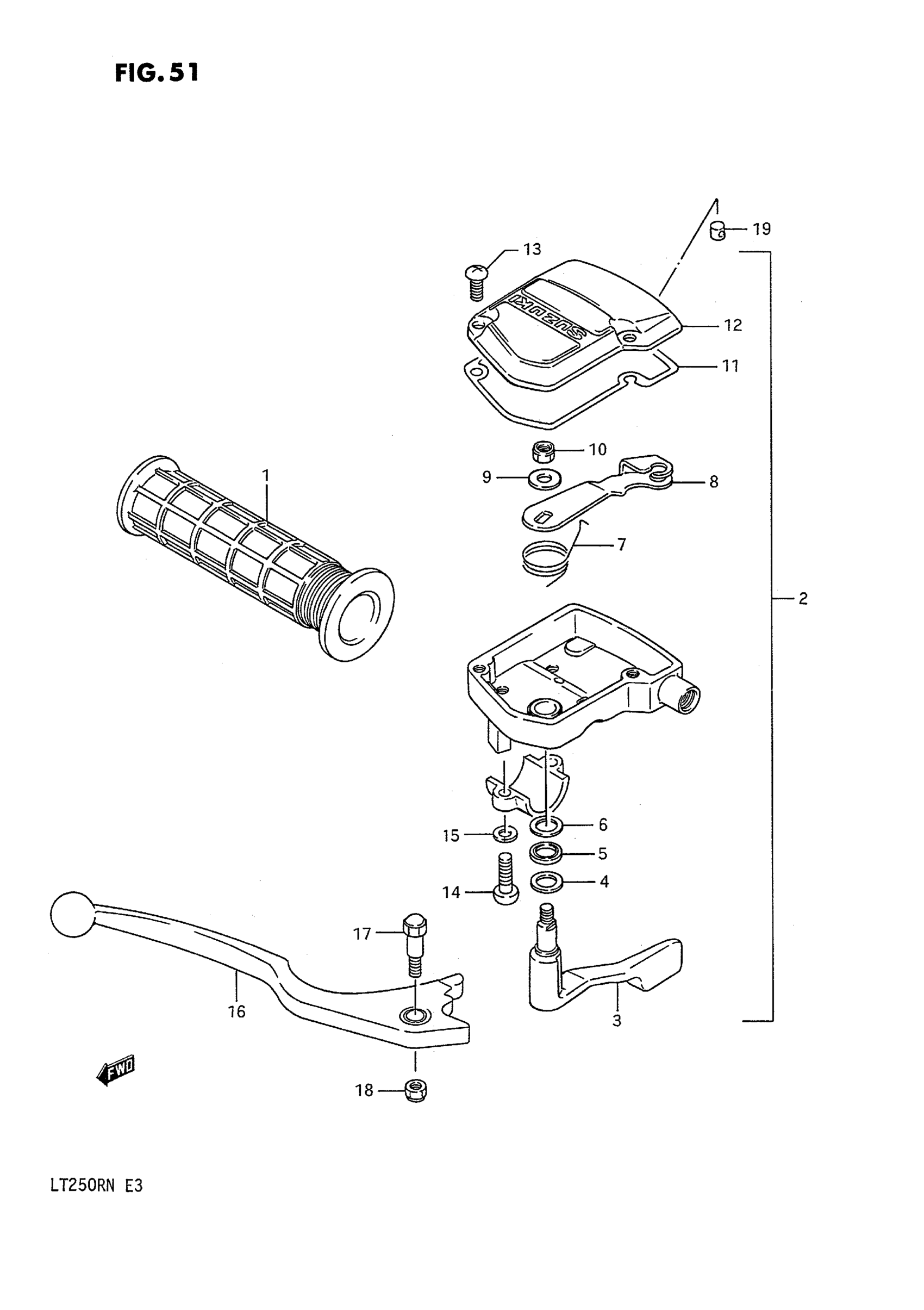

Suzuki LT250R (1992) BRAKE LEVER (MODEL H/J/K/L) Diagram

#

Description
Price

1

GRIP This part replaces 57211-19A03-291.

57211-19A04-291

$11.75

2

CASE ASSY, THROTTLE | !57100-43B01 This part replaces 57100-43B00.

57100-43B01

Unavailable

2

CASE ASSY, THROTTLE | Includes Item(s) 3 - 15

57100-43B01

Unavailable

3

CASE ASSY, THROTTLE | FOR 57100-43B00 This part replaces 57151-43B00.

57100-43B01

Unavailable

3

LEVER | FOR 57100-43B01

57151-43B01

Unavailable

4

WASHER (8.4X15.5X1.6) | FOR 57100-43B00

57154-43B00

Unavailable

4

WASHER (8.2X14.0X1.0) | FOR 57100-43B01

57154-43B01

Unavailable

5

DUST SEAL (8.0X14.0X4.0) | FOR 57100-43B00

57159-43B00

Unavailable

5

DUST SEAL (8.0X12.0X3.0) | FOR 57100-43B01

57159-43B01

Unavailable

6

WASHER (8.2X12.0X0.5) | FOR 57100-43B01

57152-43B01

Unavailable

7

SPRING

57134-43B00

Unavailable

8

ARM, THROTTLE CABLE

57158-43B00

Unavailable

9

WASHER

57153-43B00

Unavailable

10

.NUT This part replaces 08319-21056.

08319-2105A

$2.19

11

GASKET

57157-43B00

Unavailable

12

CASE ASSY, THROTTLE This part replaces 57121-43B00.

57100-43B01

Unavailable

13

SCREW This part replaces 02112-05125.

02112-0512A

$1.49

14

SCREW This part replaces 02112-05205.

02112-0520B

$1.84

15

LOCK WASHER This part replaces 08321-21055.

08321-0105A

$1.84

16

LEVER, BRAKE

57420-49101

$34.15

17

BOLT

57431-49100

Unavailable

18

.NUT This part replaces 08319-21065.

08319-2106B

$2.32

19

PIN, THROTTLE CABLE (L:6) | MODEL H/J

58631-07010

$3.56

19

PIN, THROTTLE CABLE (L:7) | MODEL K/L

58631-22A00

Unavailable
