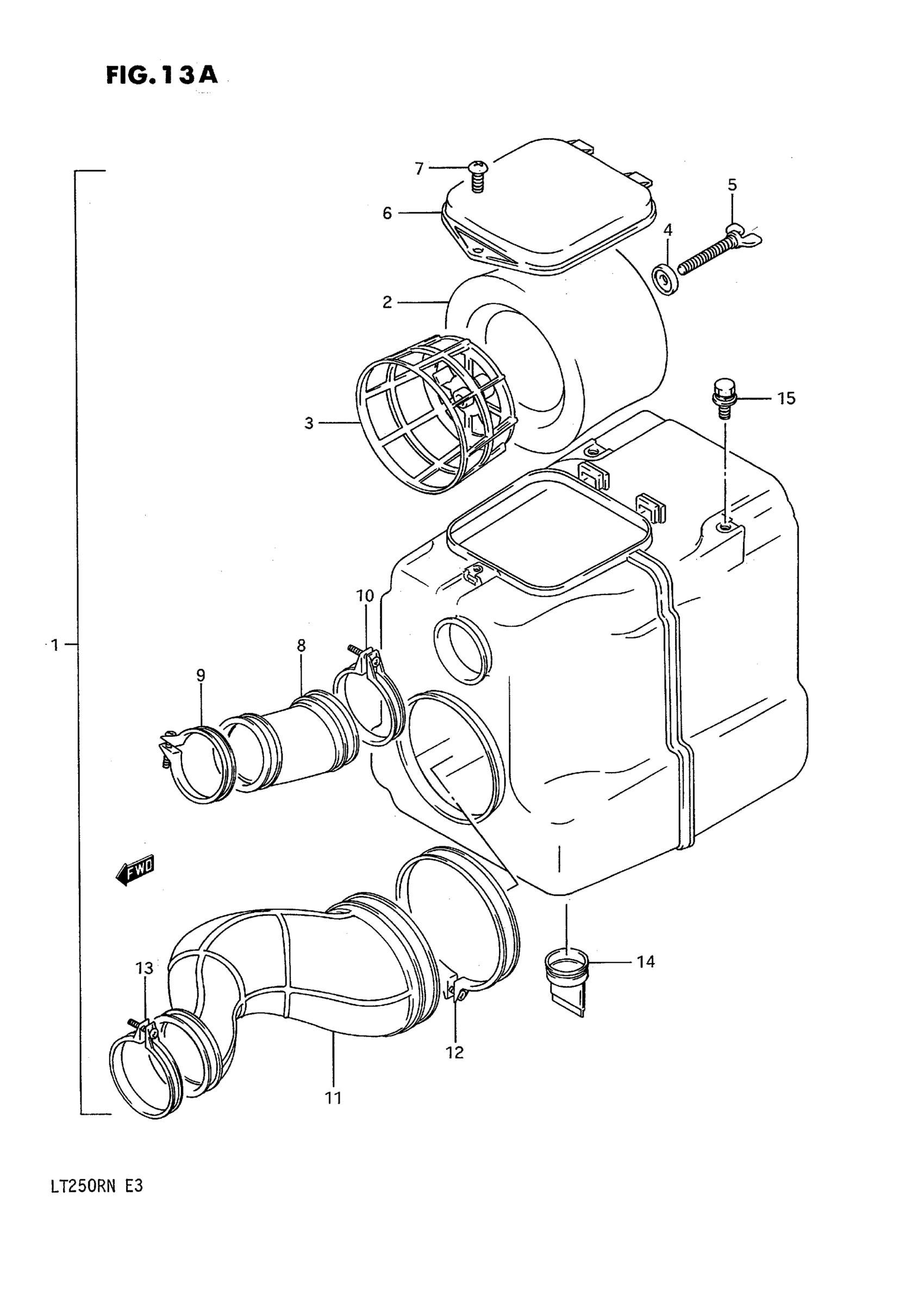

Suzuki LT250R (1992) AIR CLEANER (MODEL M/N) Diagram

#

Description
Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 14

13700-01C20

Unavailable

2

FILTER

13781-01C00

Unavailable

3

HOLDER

13791-01C00

Unavailable

4

WASHER

13796-16700

$2.89

5

BOLT, WING

13831-42A00

$5.07

6

CAP

13750-19A00

Unavailable

7

.SCREW This part replaces 02142-05124.

02142-0512A

$1.49

8

TUBE, INLET

13891-01C20

Unavailable

9

CLAMP This part replaces 09402-56208.

09402-56901

$5.36

10

CLAMP

09402-58208

$5.36

11

TUBE, OUTLET

13881-01C20

Unavailable

12

CLAMP This part replaces 13826-02B10.

09402-00303

$5.76

13

CLAMP This part replaces 09402-64208.

09402-64203

$6.58

14

TUBE, DRAIN

13873-18900

Unavailable

15

BOLT This part replaces 01177-06168.

01580-06167

$3.33
