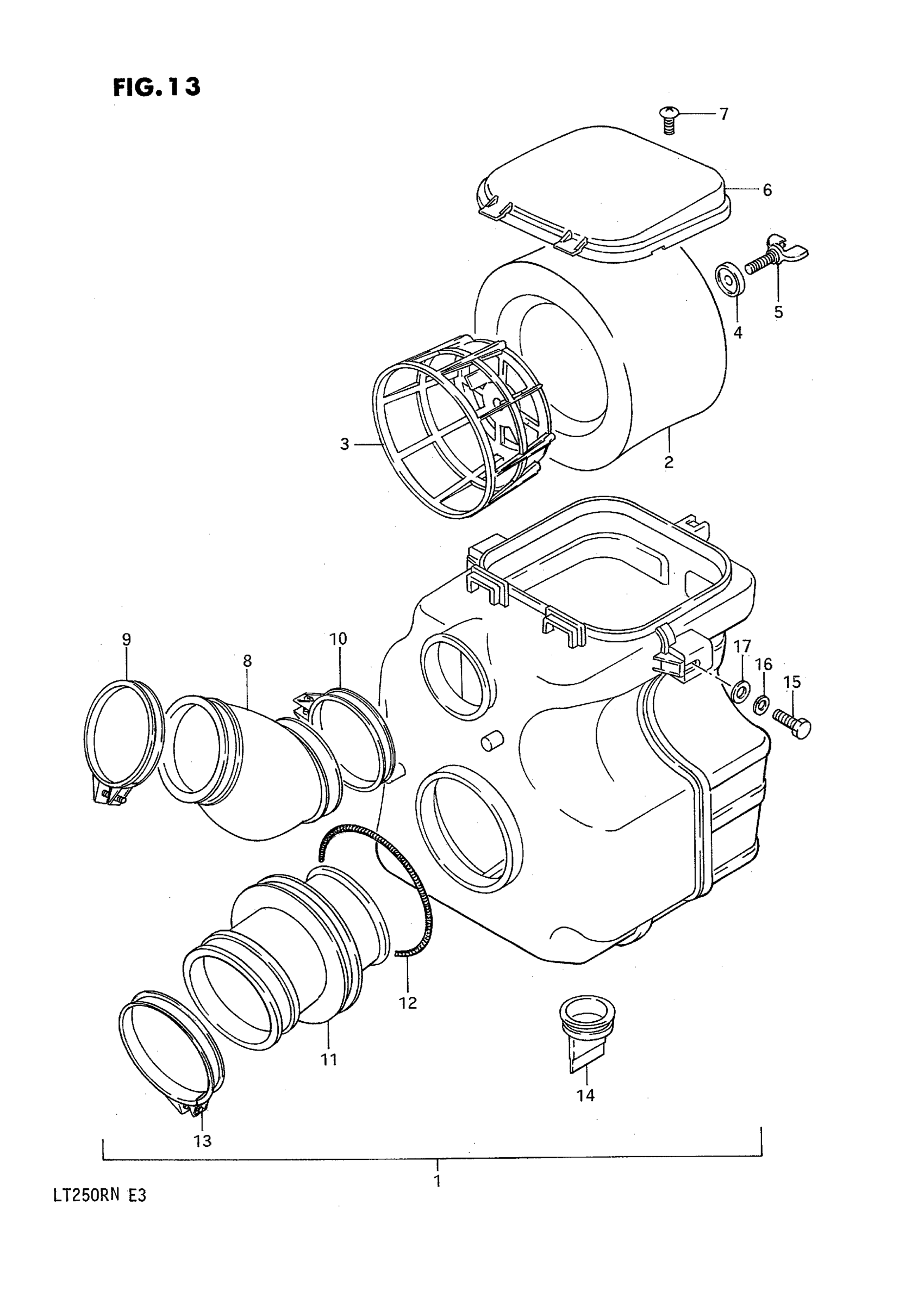

Suzuki LT250R (1992) AIR CLEANER (MODEL F/G/H/J/K/L) Diagram

#

Description
Price

1

CLEANER ASSY,AI | MODEL F/G This part replaces 13700-19A01.

13700-01C11

Unavailable

1

CLEANER ASSY,AI | MODEL H This part replaces 13700-01C00.

13700-01C11

Unavailable

1

CLEANER ASSY,AI | MODEL J/K/L; Includes Item(s) 2 - 14 This part replaces 13700-01C10.

13700-01C11

Unavailable

2

FILTER | MODEL F/G

13781-01A00

Unavailable

2

FILTER | MODEL H/J/K/L

13781-01C00

Unavailable

3

HOLDER | MODEL F/G

13791-01A00

Unavailable

3

HOLDER | MODEL H/J/K/L

13791-01C00

Unavailable

4

WASHER

13796-16700

$2.89

5

BOLT, WING | MODEL F/G This part replaces 13837-14500.

13837-43B00

Unavailable

5

BOLT, WING | MODEL H/J/K/L

13831-42A00

$5.07

6

CAP

13750-19A00

Unavailable

7

.SCREW This part replaces 02142-05124.

02142-0512A

$1.49

8

TUBE, INLET

13892-19A00

Unavailable

9

CLAMP This part replaces 09402-56208.

09402-56901

$5.36

10

CLAMP

09402-58208

$5.36

11

TUBE, OUTLET | MODEL F/G

13881-19A00

Unavailable

11

TUBE, OUTLET | MODEL H

13881-01C00

Unavailable

11

TUBE, OUTLET | MODEL J/K/L

13881-01C10

Unavailable

12

SPRING

13826-38300

$3.56

13

CLAMP This part replaces 09402-64208.

09402-64203

$6.58

14

TUBE, DRAIN

13873-18900

Unavailable

15

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

$1.97

16

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

17

WASHER This part replaces 08322-21067.

08322-01067

$2.13
