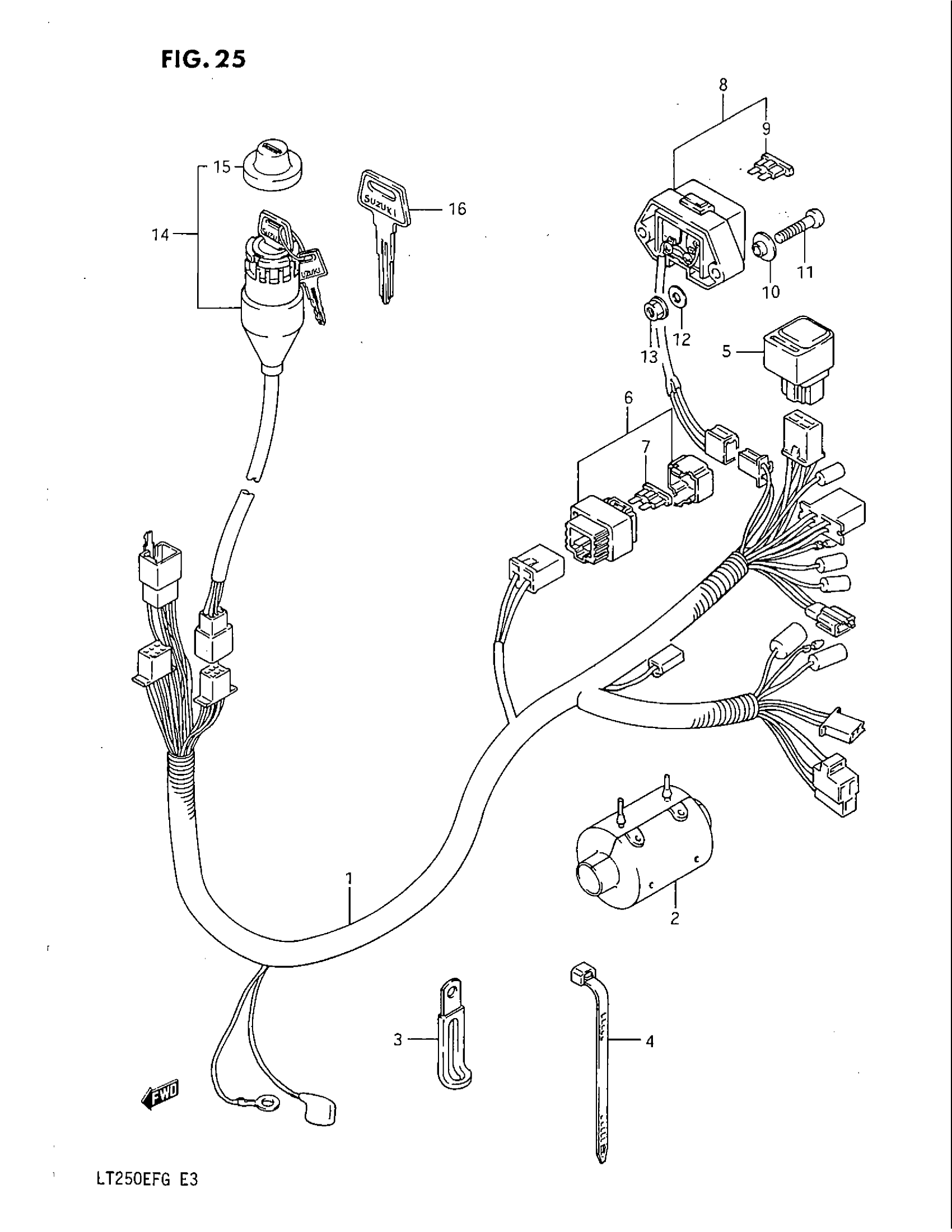

Suzuki LT250EF (1986) WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS | MODEL F This part replaces 36610-24500.

36610-24511

Unavailable

1

WIRING HARNESS | MODEL G

36610-24511

Unavailable

2

BOOT, WIRING HARNESS

36618-30610

$8.83

3

CLAMP This part replaces 09404-06401.

09404-06039

$1.74

3

CLAMP This part replaces 09404-06413.

09404-06039

$1.74

3

CLAMP(L:80) This part replaces 09404-06404.

09404-06036

$1.74

4

CLAMP (L:125)

09407-14403

$2.26

4

CLAMP (L:185)

09407-18402

$2.19

4

CLAMP (L:235)

09407-25401

$4.66

5

RELAY ASSY, SIDE STAND This part replaces 38730-24500.

38740-24X50

$45.20

6

BOX ASSY, POWER SOURCE FUSE | Includes Item(s) 7 This part replaces 36740-04700.

36740-04701

$22.22

7

FUSE (15A)

09481-15101

$2.53

8

POWER SOURCE TERMINAL | MODEL F This part replaces 38850-24500.

38850-24501

Unavailable

8

POWER SOURCE TERMINAL | MODEL G; Includes Item(s) 9

38850-24501

Unavailable

9

FUSE (10A)

09481-10101

$2.07

10

WASHER

09169-05010

$2.38

11

.SCREW (5X25) This part replaces 02112-05254.

09125-05066

$1.65

12

WASHER, FRONT This part replaces 08322-21055.

08322-0105A

$1.84

13

NUT This part replaces 08316-26055.

08316-2005A

$2.19

14

SWITCH ASSY,IGN | Includes Item(s) 15 This part replaces 37110-24501.

37110-24511

Unavailable

15

CAP

37921-24500

Unavailable

16

KEY, BLANK | OPT This part replaces 37146-24500.

37146-03A00

$9.89

16

KEY, BLANK | OPT This part replaces 37146-24510.

37146-03A10

$11.63
