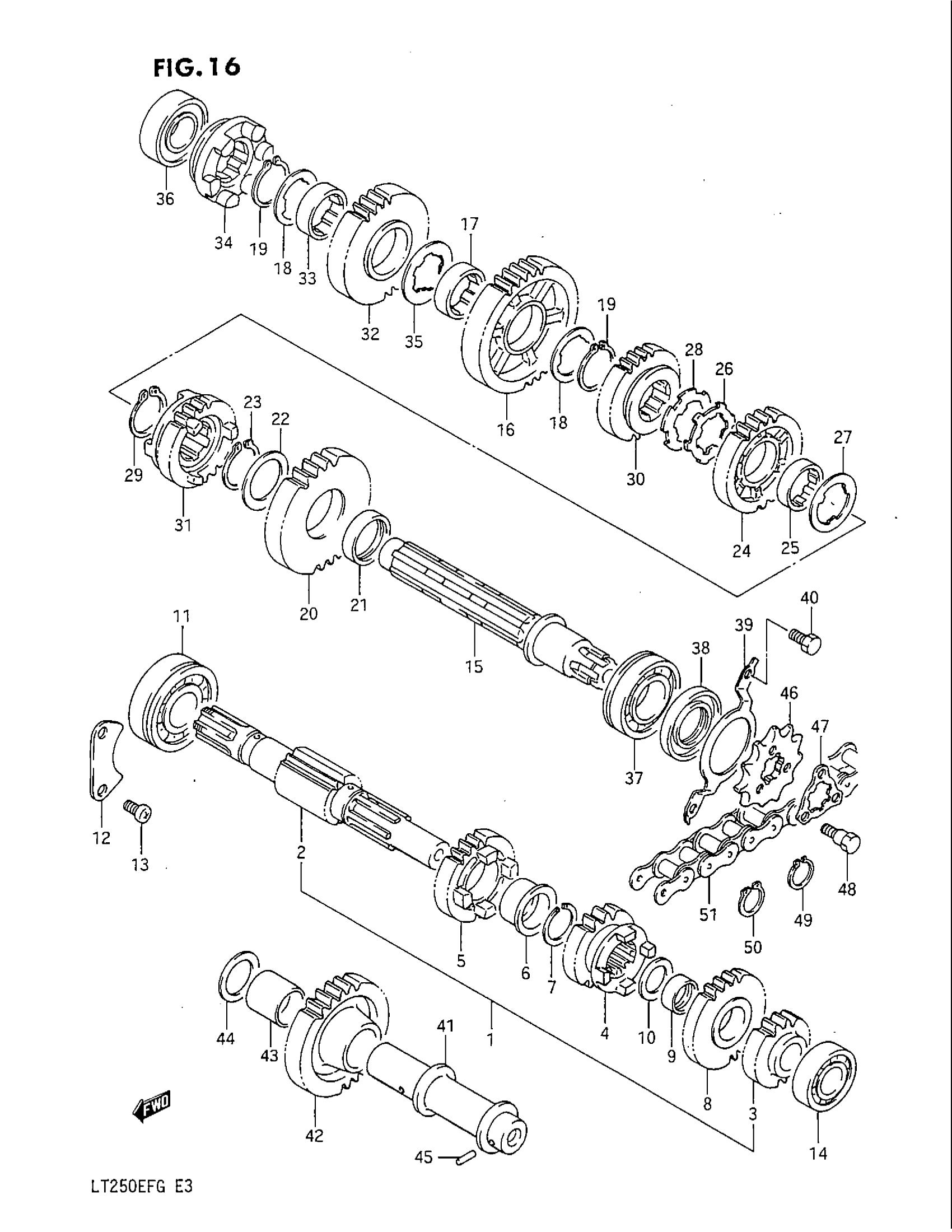

Suzuki LT250EF (1986) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT ASSY | MODEL F

24120-24500

Unavailable

1

COUNTERSHAFT ASSY | MODEL G; Includes Item(s) 2 - 10 This part replaces 24120-24510.

24120-24511

Unavailable

2

COUNTERSHAFT (NT:12) | MODEL F

24100-24830

Unavailable

2

COUNTERSHAFT (NT:11) | MODEL G This part replaces 24100-24860.

24100-24861

Unavailable

3

GEAR, 2ND DRIVE (NT:15) | MODEL F

24221-24500

Unavailable

3

GEAR, 2ND DRIVE (NT:14) | MODEL G

24221-24510

Unavailable

4

GEAR, 3RD DRIVE (NT:18)

24231-24501

Unavailable

5

GEAR, 4TH DRIVE (NT:25)

24241-24501

Unavailable

6

BUSH

09301-22002

Unavailable

7

CIRCLIP

09380-22006

$3.10

8

GEAR, 5TH DRIVE (NT:24)

24251-24501

Unavailable

9

BUSH

09300-17009

Unavailable

10

WASHER (17X26X1) This part replaces 08211-17261.

09181-17167

$2.96

11

BEARING (22X56X16) This part replaces 09262-22014.

09262-22028

$77.48

12

RETAINER

24741-38200

Unavailable

13

SCREW This part replaces 02112-06128.

02112-06127

$1.84

14

BEARING (17X40X12) This part replaces 09262-17018.

09262-17027

$35.28

15

DRIVESHAFT | MODEL F

24131-24504

Unavailable

15

DRIVESHAFT | MODEL G

24131-24510

Unavailable

16

GEAR, 1ST DRIVEN (NT:36) | MODEL F

24311-24500

Unavailable

16

GEAR, 1ST DRIVEN (NT:36) | MODEL G

24311-24510

Unavailable

17

BUSH, 3RD DRIVEN GEAR This part replaces 24332-24500.

24332-24510

$18.67

18

LOCK WASHER

09167-25016

$3.72

19

SNAP RING

09380-25003

$3.04

20

GEAR, 2ND DRIVEN (NT:28) | MODEL F

24321-24501

Unavailable

20

GEAR, 2ND DRIVEN (NT:28) | MODEL G

24321-24510

Unavailable

21

BUSH

09300-25020

$16.87

22

WASHER

08211-25351

$3.72

23

SNAP RING

09380-25003

$3.04

24

GEAR, 3RD DRIVEN (NT:25)

24331-24500

Unavailable

25

BUSH, 3RD DRIVEN GEAR This part replaces 24332-24500.

24332-24510

$18.67

26

LOCK WASHER

09169-25001

$2.70

27

LOCK WASHER

09167-25016

$3.72

28

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.30

29

SNAP RING

09380-25003

$3.04

30

GEAR, 4TH DRIVEN (NT:28)

24341-24501

Unavailable

31

GEAR, 5TH DRIVEN (NT:23)

24351-24501

Unavailable

32

GEAR, REVERSE DRIVEN (NT:29) | MODEL F

24571-24502

Unavailable

32

GEAR, REVERSE DRIVEN (NT:28) | MODEL G This part replaces 24571-24510.

24571-41B00

Unavailable

33

BUSH

24333-24501

Unavailable

34

DOG, REVERSE GEAR

24581-24501

Unavailable

35

WASHER

09167-25017

$3.87

36

BEARING, RH

09262-20059

$25.60

37

BEARING, LH

09262-25003

$24.83

38

SEAL,OIL (25X45X5)

09283-25076

$10.19

39

RETAINER

24751-24500

Unavailable

40

BOLT This part replaces 01107-06126.

01500-0612A

$1.78

41

SHAFT, REVERSE IDLER This part replaces 24550-24501.

24551-24502

Unavailable

42

GEAR, REVERSE IDLER (NT:28) | MODEL F

24561-24502

Unavailable

42

GEAR, REVERSE IDLER (NT:29) | MODEL G

24561-24510

Unavailable

43

BUSH

09300-20034

Unavailable

44

THRUST WASHER

08211-20301

$2.35

45

PIN This part replaces 06211-04103.

04221-04109

Unavailable

46

SPROCKET, ENGINE (NT:11) | MODEL F

27511-24502

Unavailable

46

SPROCKET, ENGINE (NT:11) | MODEL G

27511-24530

Unavailable

46

SPROCKET, ENGINE (NT:9) | OPT

27511-24510

Unavailable

46

SPROCKET, ENGINE (NT:10) | OPT

27511-24520

Unavailable

47

PLATE | MODEL F

27512-24501

Unavailable

48

BOLT | MODEL F

09111-06039

$6.02

49

CIRCLIP | MODEL G

09380-20006

$2.90

50

CIRCLIP | OPT

09380-20014

Unavailable

51

NO DESCRIPTION AVAILABLE | MODEL F This part replaces 27600-24521.

27600-34A40-078

Unavailable

51

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 27600-38250-080.

27600-01C10-080

Unavailable
