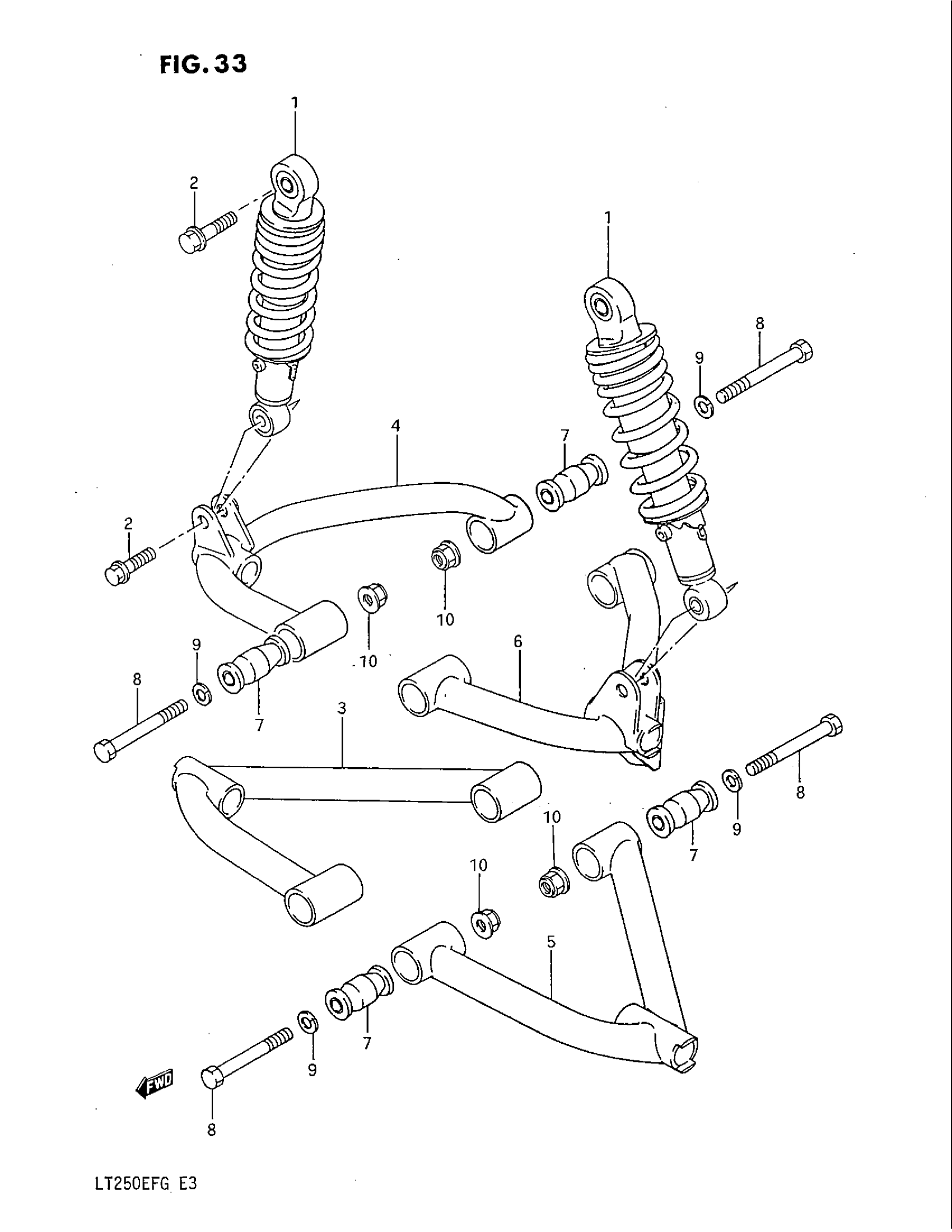

Suzuki LT250EF (1986) SUSPENSION ARM Diagram

#

Description
Price

1

SHOCK ABSORBER, FRONT

52100-24500

Unavailable

2

BOLT,10X37 This part replaces 09103-10038.

09103-10038-XC0

$2.86

3

ARM, SUSPENSION, LOWER RH

52410-24503

Unavailable

4

ARM, SUSPENSION, UPPER RH

52430-24502

Unavailable

5

ARM, SUSPENSION,LOWER LH

52420-24503

Unavailable

6

ARM, SUSPENSION,UPPER LH

52440-24502

Unavailable

7

BUSH, SUSPENSION ARM PIVOT

09319-10030

$11.61

8

NO DESCRIPTION AVAILABLE | MODEL F,10X73 This part replaces 09100-10216.

09100-10216-XC0

Unavailable

8

BOLT 10X75 | MODEL G,10X75 This part replaces 09100-10241.

09100-10124

Unavailable

9

LOCK WASHER This part replaces 08321-21104.

08321-0110A

$1.84

10

NUT This part replaces 08319-31105.

08319-3110A

$2.73
