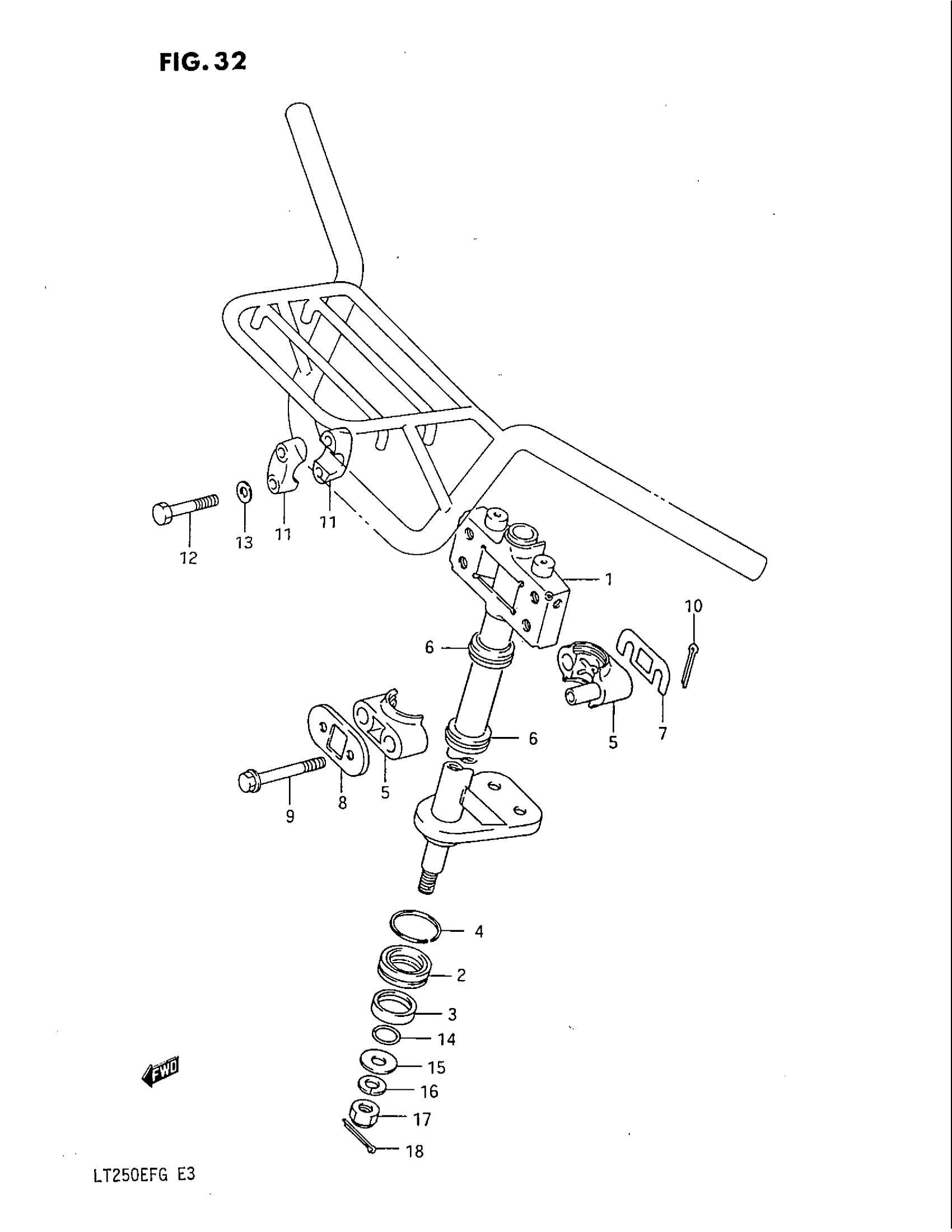

Suzuki LT250EF (1986) STEERING SHAFT Diagram

#

Description
Price

1

SHAFT, STEERING

51650-24501

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 51662-24500.

51662-24501

Unavailable

3

SEAL,DUST This part replaces 51663-24500.

51663-05G01

$7.13

4

CLIP, DUST SEAL

09380-40002

Unavailable

5

HOLDER,STEERING SHAFT

51670-24500

$23.07

6

DUST SEAL, STEERING

51678-24500

$6.64

7

SHIM, HOLDER

51682-24500

Unavailable

8

REINFORCEMENT

51681-24500

Unavailable

9

BOLT

09103-08116

Unavailable

10

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

11

CLAMP, HANDLEBAR (BLACK)

56211-27200-291

$17.90

12

BOLT This part replaces 01107-08555.

01500-0855B

$3.49

13

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

14

O RING

09280-17003

$1.65

15

WASHER (12.5X32X4.5) This part replaces 09160-12043.

09160-12094

$3.72

16

WASHER,LOCK This part replaces 08321-21125.

08321-0112A

$2.10

17

NUT This part replaces 08319-21125.

08319-2112B

$5.18

18

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
