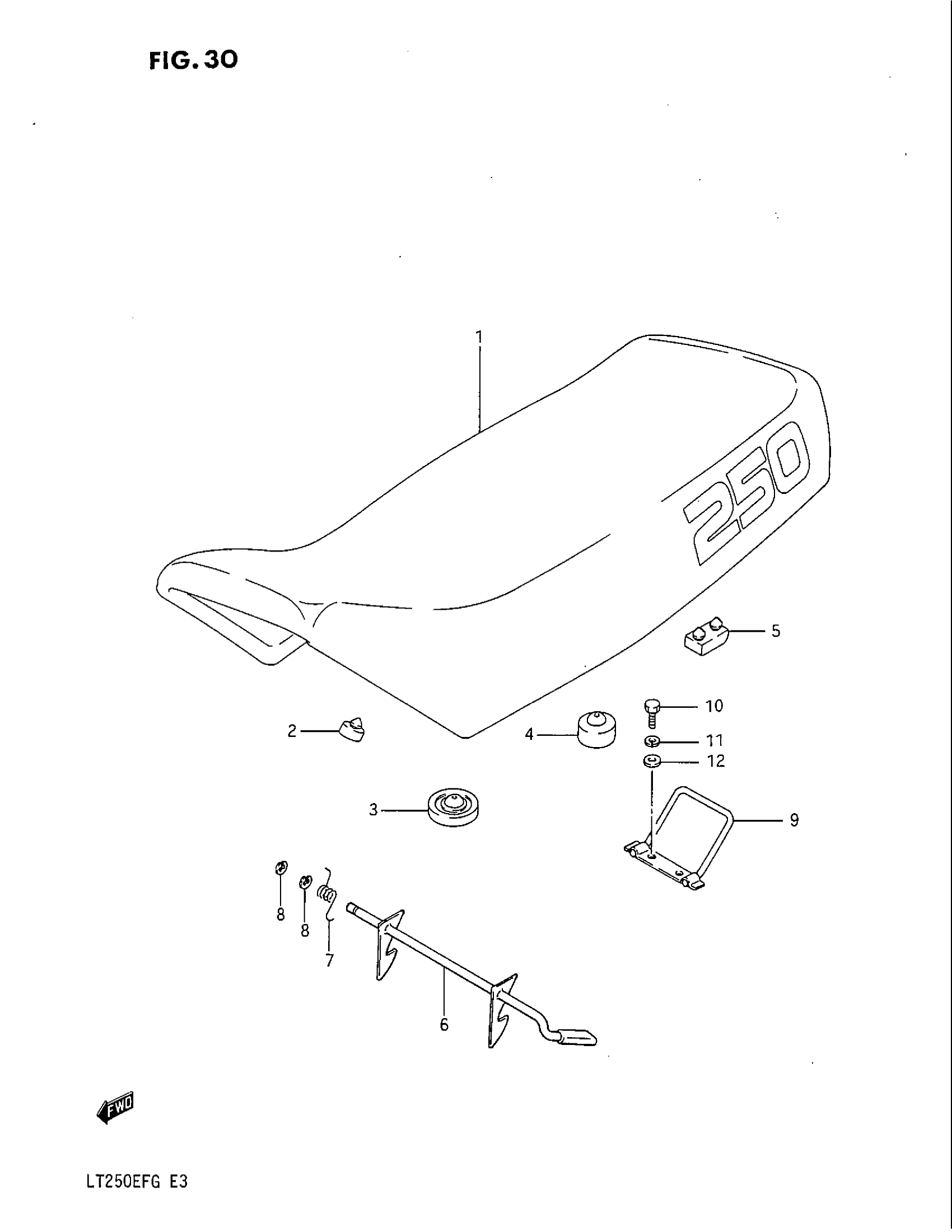

Suzuki LT250EF (1986) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLACK) | MODEL F This part replaces 45100-24501-58P.

45100-24511-58P

Unavailable

1

SEAT ASSY (BLACK) | MODEL G; Includes Item(s) 2 - 8

45100-24511-58P

Unavailable

2

CUSHION

09321-10002

$2.22

3

CUSHION

09321-14005

Unavailable

4

CUSHION

45149-24302

Unavailable

5

CUSHION

45149-24500

Unavailable

6

CLAMP, SEAT

45210-24501

Unavailable

7

SPRING

45135-24500

$4.52

8

CIRCLIP This part replaces 08332-11066.

08332-1106A

$1.49

9

PLATE, SEAT REAR HOOK

45230-24501

Unavailable

10

BOLT This part replaces 01107-06126.

01500-0612A

$1.78

11

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

12

.WASHER This part replaces 08322-21066.

08322-0106B

$2.26
